AAC aerated block making production line

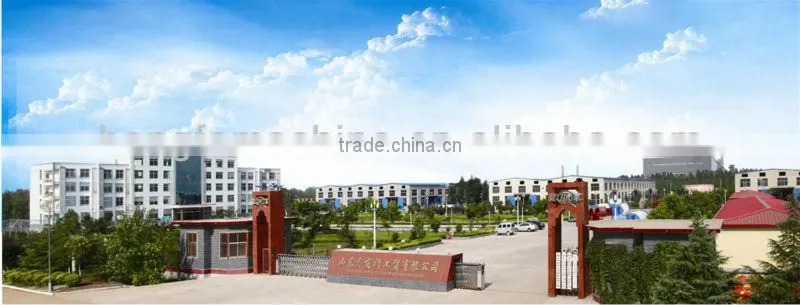

Shandong Hongfa as the top manufacturer for aerated autoclaved concrete block making machine (AAC) , concrete bricks&blocks making machine with over 20 years experience has four branches in China , We win customers at home and abroad by strong quality and unbeatable service with competitive price , we have exported our products to over 70 countries . Thanks for your attention to us .

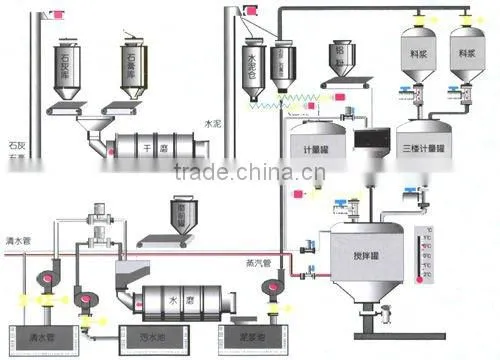

Producing process sketch :
1..Storage and processing of the raw material
2.Batching, mixing, pouring
3.Cutting, grouping
4.Autoclave curing and finished
5.Lateral plate returns, group mode with oil
6.Comprehensive utilization
AAC aerated block making production line
Main features of Hongfa AAC project:
1,Agglomerate lime is firstly crushed by jaw crusher, and then the granule lime is milled by energy-saving mill.
2,Mixing the fine grinding sands and the waste slurry for the slurry can improves effectively the stability of the slurry.
3,The slurry and powder are weighed by electronic measurement. The measurement and pouring of batching plant are controlled by central control room.
4,The pouring method adopts fixed point pouring.
5,It chooses the JQF 6.0 step by step cutting machine (Made in China). The maximum cutting size is 6.0×1.2×0.6m and the capacity of the cutting machine is about 400,000 m3 per year. The cutting precision reaches the China advanced level among the same size.
6,The autoclave kettle adopts 2 upward-acting doors to decrease the time of the brick in and out of the autoclave and saves construction areas.

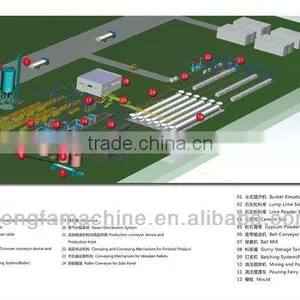

7,Using the integrated process layout, it is conductive to building warm insulate and automatic control of the line. At the same time, it reduces the cost of construction.
8,Using hydraulic transport system instead of travelling crane can improve the stability of the system and save the procedure of application for inspection.
9,The waste on the bottom is cleaned by the hanger with cleaner and then sent to the autoclave kettle for autoclaved maintenance to realize no hard waste for production.
10,Comprehensive utilization of the waste material, waste water, waste gas and rain water helps make full use of the source and reduce emissions.
11,In order to simplify processing and reduce the cost of production, manual work is needed to clean and oil the molds.
AAC aerated block making production line
SERVICE:
1.Production Line Design.
Including: drawing of plant working process , drawings of land construction, drawings of power
working,drawings of driving force for working, drawings of anti-dust, drawings of water supply and
drainage, and drawing of air pipeline construction.
2.Technical Guidance of Building Factory
Including: consultation of facility, Equipment installation guide, constitution the production preparation, etc.
3.Providing the technical information of setting up factory
Including: part of the factory management system, all posts accountability of production line, process rules, safety rules, setting a quota of staff and posts, pre-production tools directory, laboratory instruments,
product catalogs, and test methods.
AAC aerated block making production line
About the raw material ratio of AAC block :
Cement lime fly ash style aerated block raw material proportion
name |
unit |
Cement lime fly ash |
flash |
% |
65-70 |
cement |
% |
6-15 |
lime |
% |
18-25 |
gypsum |
% |
3-5 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
|
0.60-0.65 |
Casting system |
OC |
36-40 |
Aluminum mixing time |
S |
30-40 |
Cement lime Sand style aerated block raw material proportion
Name |
Unit |
Cement Lime Sand |
Sand |
% |
55-65 |
Cement |
% |
10-20 |
Lime |
% |
20-30 |
Gypsum |
% |
2-3 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
|
0.65-0.75 |
Casting system |
OC |
35-38 |
Aluminum mixing time |
S |
30-40 |
Reference: cement is 42.5 Portland or 42.5 common cement
Aluminum power paste calculate to use according to 600kg/m3
Remark: the accurate batching rate is adjustable according to the raw material locally
AAC aerated block making production line
Contact us:
- We are the top leader in China on manufacturing the Autoclaved Aerated Concrete Line(AAC) with 65% market share.
- We have exported our lines to different countries -- Russia, Thailand, Ukraine, Middle East and so on.
- We can supply our customer for designning, production, installation, commissioning, training and good after-sale service.
- Please feel free to contact us for more information and any help. it will be our pleasure to be of service to you .
Sale manager : Amy Liu MB:0086 13969983506 Skype: donghaowen66
