Home > Products > Mobile machinery > QT12-15 Hot sale concrete block machinery /block making plant / cement brick machine / cement hollow brick making machine
QT12-15 Hot sale concrete block machinery /block making plant / cement brick machine / cement hollow brick making machine
- 20 Set / Sets per Month
- QINGDAO
- T/T
Product Details
Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete | Processing: | Brick Production Line |
Method: | Hydraulic Pressure | Automatic: | Yes | Capacity: | 1728~2160pcs |
Place of Origin: | Shandong, China | Brand Name: | hongfa | Model Number: | QT12-15 |
Voltage: | 220V / 380V / 400V / 440V | Power: | 44kw | Dimension(L*W*H): | 9350*2520*2950MM |
Certification: | ISO CE SGS | Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

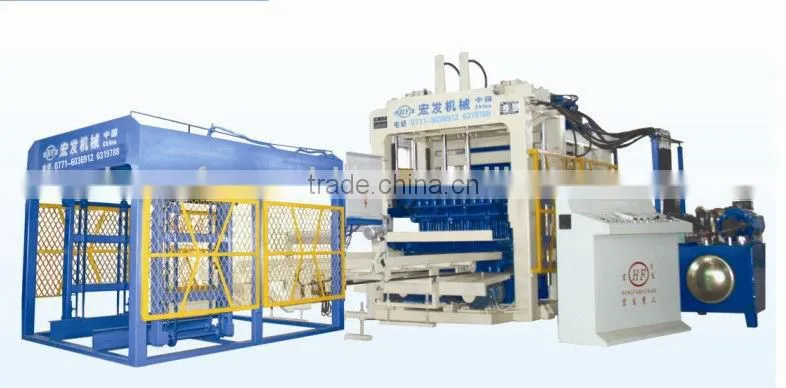

QT12-15 Hot sale concrete block machinery /block making plant / cement brick machine / cement hollow brick making machine
Brief introduction :
Particular storage and description material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
Adopting synchronization vibration insures the products making average. The frequency can change according to different technical. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trained to the operator.
Product scope:

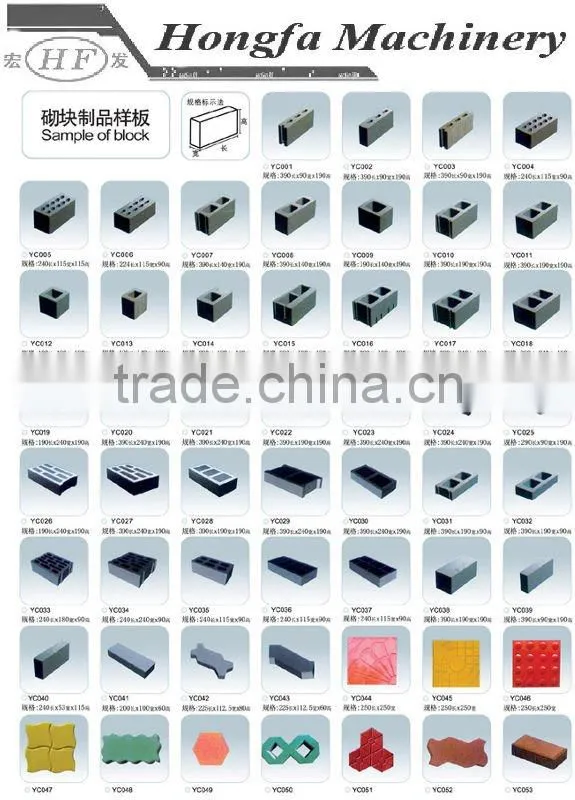

It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Main Technical Specifications
Main Technical Specifications | |
Overall Dimension | 9350×2520×2950(mm) |
Rated pressure | 21MPa |
Main vibration form | Platform vibration |
Cycle Time | 15-25 seconds |
Vibrating Frequency | 2800-4500 rolls/minute |
Motors Power | 44.58KW |
Pallet Size | 1300*900(mm) |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes. |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Productivity of QT12-15 block making machine
Item | Size | Quantity | Cycle molding | Per hour | Per day |
Hollow brick | 400*200*200 |
12 |
15-20s |
2160pcs |
21600pcs |
Porous brick | 240*115*90 |
30 |
15-20s |
6400pcs |
64000pcs |
Color brick | 225*112.5*60 |
30 |
18-22s |
5400pcs |
54000pcs |
Standard brick | 240*115*53 | 62 | 15-17S | 14400pcs | 144000pcs |
QT12-15 Hot sale concrete block machinery /block making plant / cement brick machine / cement hollow brick making machine
QT12-15 Hot sale concrete block machinery /block making plant / cement brick machine / cement hollow brick making machine
Choose Hongfa products is your wise decision !
Contact Us
- Shandong Hongfa Scientific Industrial & Trading Co., Ltd.
- Contact nameAndrew ji
- Phone86-539-3116003
- AddressDazhuang Economic & Developing Zone, Yinan County, Shandong Linyi,Shandong
