Specifications
fully automatic block making machine factory 1PLC intelligent control2apply with international quality3the leader in the line

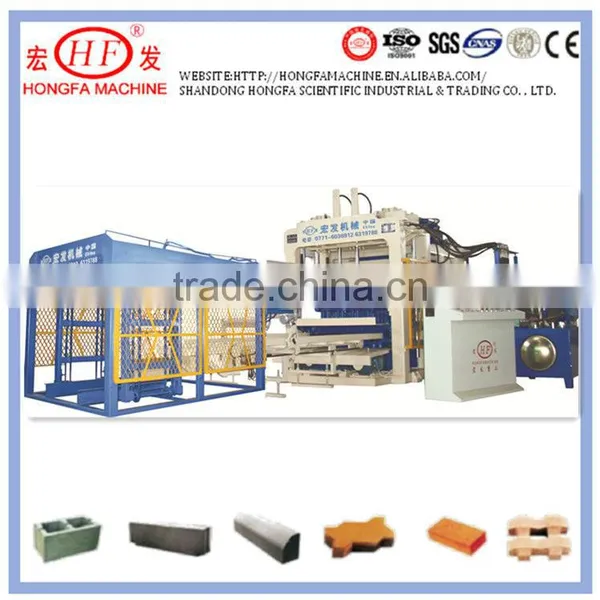

Fully automatic block making machine QT12-15
Hello , this is Amy Liu from Shandong Hongfa , thanks for your time .
Hope you have a good time in searching our products .

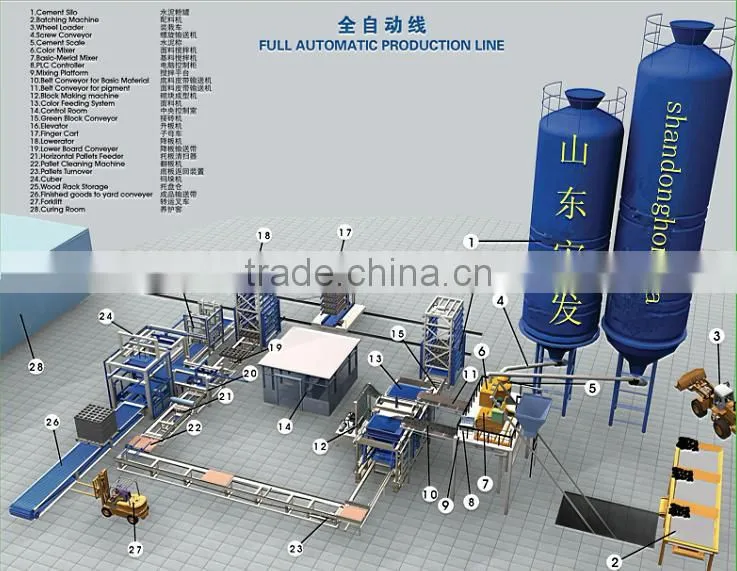

Simple production line Fully automatic production line
Brief introduction of Fully automatic block making machine QT12-15:
Particular storage and description material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
Adopting synchronization vibration insures the products making average. The frequency can change according to different technical. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Control system of Fully automatic block making machine QT12-15: PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trained to the operator.
Product scope of Fully automatic block making machine QT12-15: It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Main Technical Specifications of Fully automatic block making machine QT12-15:
Main Technical Specifications | |
Overall Dimension |
9350×2520×2950(mm) |
Rated pressure |
21MPa |
Main vibration form |
Platform vibration |
Cycle Time |
15-25 seconds |
Vibrating Frequency |
2800-4500 rolls/minute |
Motors Power |
44.58KW |
Pallet Size |
1300*900(mm) |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |

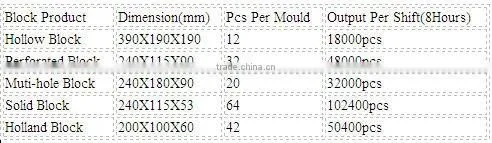

Productivity of Fully automatic block making machine QT12-15:
Please feel free to contact us for more information and any help . It will be our pleasure .
You can send me email.or call me at : 0086-13969983506 .
