Concrete Brick & Block Simple Production Line for Sale

Concrete Brick & Block Simple Production Line for Sale photo-1
US$ 55,000 - 74,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 1800~2400pcs/hour for 400*200*200mm
Place of Origin Shandong, China
Brand Name hongfa
Model Number QT10-15D
Voltage 380V
Power 49kw
Dimension(L*W*H) 7500*2500*3020(mm)
Certification ISO CE SGS
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Concrete brick & block simple production line for sale1,ISO9001-2008 CE SGS 2,Strong quality 3,top manufacturer 4,reasonal price

hf Concrete brick & block simple production line for sale

Shandong Hongfa as the top manufacturer for aerated autoclaved concrete block making machine (AAC) , concrete bricks&blocks making machine with over 20 years experience has four branches in China , We win customers at home and abroad by strong quality and unbeatable service with competitive price , we have exported our products to over 70 countries . Thanks for your attention to us .

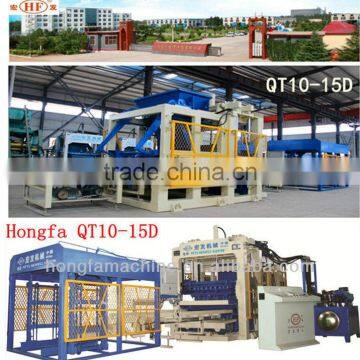

QT10-15D type: Concrete brick & block simple production line for sale

hf Concrete brick & block simple production line for sale

Advantage :

A. The frame of the host machine is used hight quality 20*20CM square tube steel, all from the best steel supplier Laigang, Jinggang.
B. Import the most advanced Europe hight tech, apply the universal joint in the machine,so the machine running more stable and the motors not easy to burn.
C. To use the most famous Hydraulic brand - Calyca from Taiwan.
D. The eletrical components and touch screen are all used imported Siemens.

hf Concrete brick & block simple production line for sale

Main technical specifications :

Main Technical Specifications
Overall Dimension 7500×2500×3020(mm)
Rated pressure 21MPa
Main vibration form Platform vibration
Acceleration of vibration 15-20g
Cycle Time 15-20seconds
Vibrating Frequency 2800-4500 rolls/minute
Vibration 100KN
Motors Power 49KW
Weight 11T
Pallet Size 1220*900(mm)
Raw Materials crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes
Applied Products concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Productivity

Brick Style Size mm Cycle molding QTY /Mould Per hour Per 8 hours
Hollow brick 400*200*200 15--20S 10 1800~2400pcs 14400-19200pcs
Prorous brick 240*115*90 15--20s 27 4860~6480pcs 38880-51840pcs
Solid block 240*115*53 15-17s 56 11850~13440pcs 94800-107520pcs

hf Concrete brick & block simple production line for sale

Blocks sample:

 Concrete brick & block simple production line for saleConcrete brick & block simple production line for sale

hf Concrete brick & block simple production line for sale

 Aera and labour need :

Needs 5-6 labour from mixing and transfering finished blocks , the working aera needs 200m2 , the raw material store and finised blocks store depends on the local situation .

After sale service

We can give one year warranty time for free service , in the period , we can send our engineer to customers place for installaion and training . For any help in the machine whole using life , you can feel free to contact with our after sale deparment for 24 hours . We have set up many sale offices and after-sale offices around the world .

Details quality achieves strong body !Concrete brick & block simple production line for saleConcrete brick & block simple production line for saleConcrete brick & block simple production line for sale

Concrete brick & block simple production line for sale

Concrete brick & block simple production line for sale



Thanks  for  your time !

It is our pleasure to be of service to you my friend .  Your enquiry is  great help for us !



Sale manager : Amy Liu  MB:0086 13969983506  Skype: donghaowen66
