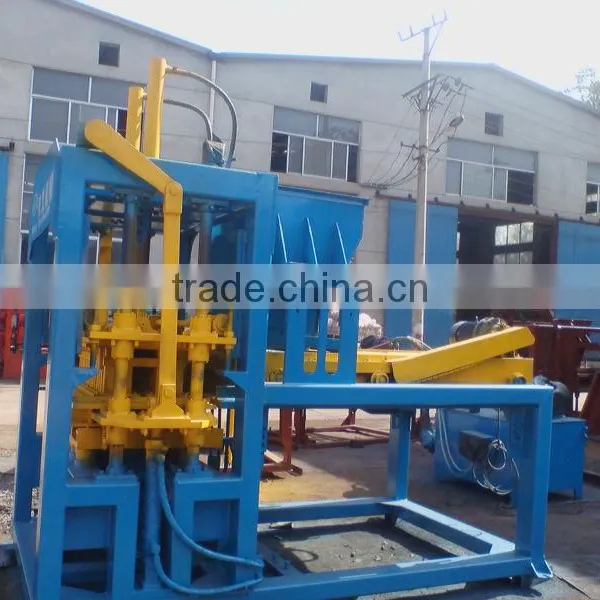

QT4-15D hydraulic automatic block making machinery in Ghana
Advantage :
A. The frame of the host machine is used hight quality 20*20CM square tube steel, all from the best steel supplier Laigang, JiGang.
B. Import the most advanced Europe hight tech, apply the universal joint in the machine,so the machine running more stable and the motors not easy to burn.
C. To use the most famous Hydraulic brand - Calyca from Taiwan.
D. The eletrical components and touch screen are all used imported Siemens.
QT4-15D hydraulic automatic block making machinery main technical parameter
Main Technical Specifications | |
Overall Dimension |
7100×1600×2610(mm) |
Rated pressure |
16MPa |
Main vibration form |
Platform vibration |
Cycle Time |
15-25 seconds |
Vibrating Frequency |
4600 rolls/minute |
Motors Power |
27.5KW |
Pallet Size |
1020*570(mm) |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
| Items of investment: | |||||||
| Component of production line | Quantity | ||||||
| QT4-15D automatic concrete brick making machine | 1 | ||||||
| Brick converyor machine | 1 | ||||||
| Pallet feeder | 1 | ||||||
| Conveyer Belt | 1 | ||||||
| JS500 Mixer | 1 | ||||||
| Control system | 1 | ||||||
| Manual cart | 2 | ||||||
| Free mould | 1 | ||||||
QT4-15D hydraulic autoamtic block making machinery productivity
| item | sample | size(mm) | pcs/mold | cycle molding | per day |
| hollow brick | |
400*200*200 | 4pcs | 15-20s | 7200pcs |
| hollow brick |
|
400*150*200 | 5pcs | 15-20s | 9000pcs |
| colcor brick |
|
225*112.5*60 | 14pcs | 15-25s | 25200pcs |
Aera and labour need :
Needs 5-6 labour from mixing and transfering finished blocks , the working aera needs 100m2 , the raw material store and finised blocks store depends on the local situation .
Service:
We can give one year warranty time for free service , in the period , we can send our engineer to customers place for installaion and training . For any help in the machine whole using life , you can feel free to contact with our after sale deparment for 24 hours . We have set up many sale offices and after-sale offices around the world .
1.Delivery time:within 30 days after receipt of the deposit
2.payment:30% advance payment by T/T, the balance payment by T/T or L/C.
3.Warranty: 1 year.
4.Spare parts: 1 set of the spare parts and 1set of the tools.
5.We will supply the design layout; we will dispatch the engineer to your side for the installing machine, training your workers. and the buyer only pay for the airtickets, the foods and the hotel for our engineer .
If you are interested in, pls feel free to contact Linda at +86-15264934636 or add my skype: linda112637

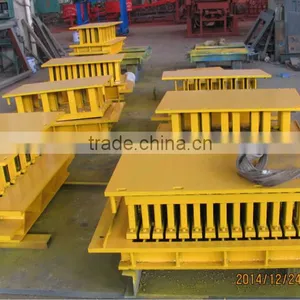

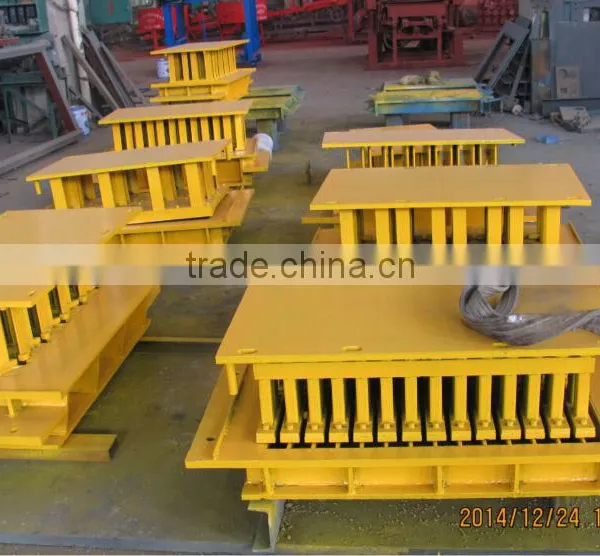

QT4-15D hydraulic automatic block making machinery products samples
