Specifications
QT6-15C Type Block Making Machine*vertical and synchronal vibration
*compulsive feeding technique
*fault diagnosis system

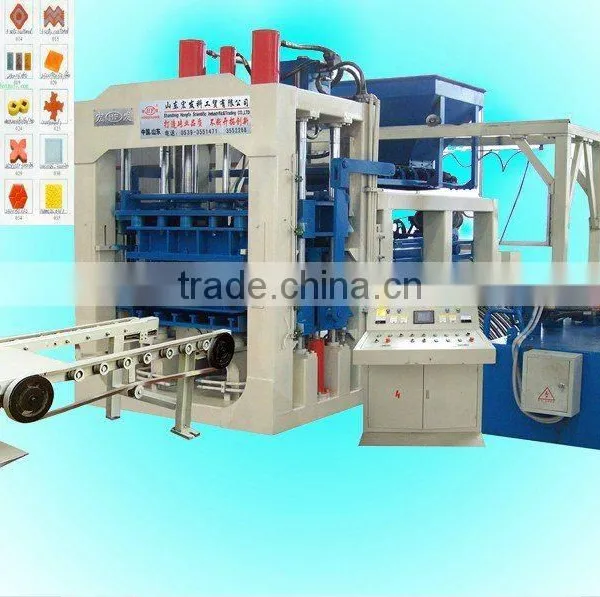

QT6-15C block making machine
Vibration system contains platform vibration and mould vibration. The platform vibration was drived by hydraulic oil and program, bringing a vertical and synchronal vibration and achieving low frequency in feeding material, high frequency making. According to different product, we can change the vibration.
The feeding system adopts active compulsive feeding technique .On the affect of feeding tooth, it can feed material average, which is propitious to thin products.
Application of digital control systems and sensor technology, combined with effective and makes all act exactness and trustiness. So that it is the same with different conditions. The adoption of a variety of advanced technology is easy to be operated. The system is of fault diagnosis system.
Main parameter:
- overall demension:8200*1700*2950mm
- rated pressure:21Mpa
- main vibration form:platform vibration
- vibration frequency:2800-4500(r/min)
- pallet size:880*850mm
- molding cycle:15-25s
- overall power:42.6KW
productivity
|
Size |
Quantity/ Mould |
Cycle moulding |
Per hour |
Per day |
Hollow brick |
390*190*190 |
6 |
16-20s |
1080pcs |
10800pcs |
Porous brick |
240*115*90 |
18 |
15-18s |
4050pcs |
40500pcs |
Standard brick |
240*115*53 |
36 |
14-17s |
8640pcs |
86400pcs |

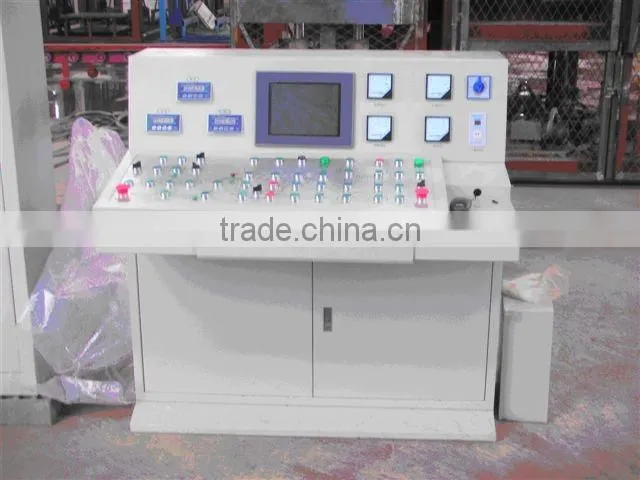

PLC CONTROL

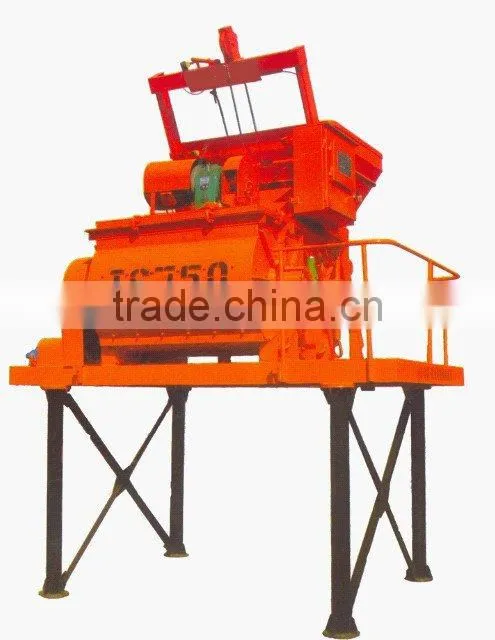

Mixer
Moulds
finished product
certificate
company
Full automatic block making machine production line
