Our company built in 1990, we have four factories in china ,our main products are AAC block plant ,concrete mixing plant , concrete block machine . we have pased ISO9001, CE, BV,SGS.
QT12-15C new improved fully automatic brick machine
- Paticular storage and segregation material systerm insure the feeding accuracy and avoiding the effect of exterior material. So the products have high desity.
- Adopting synchronization vibration insures the products making average. the frequency can change according to different technics .low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
- the computer is of fault diagnosis system. Warning signal is propitous to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny,controlling, diagnosis
QT12-15C new improved fully automatic brick machine productivity
|
Size |
Size mm |
Cycle moulding |
QTY /Mould |
Per hour |
|
Hollow brick
|
|
400*200*200 |
16-20s |
12 |
1728~2160pcs |
|
240*115*90 |
15-20s |
30 |
5400~7200pcs |
|
Color brick |
|
225*112.5*60
|
15-17s |
38 |
6840~9120pcs |
QT12-15C new improved fully automatic brick machine main technical parameter
Main Technical Specifications | |
Overall Dimension |
9350×2520×2950(mm) |
Rated pressure |
21MPa |
Main vibration form |
Platform vibration |
Cycle Time |
15-25 seconds |
Vibrating Frequency |
2800-4500 rolls/minute |
Motors Power |
44.58KW |
Pallet Size |
1300*900(mm) |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |

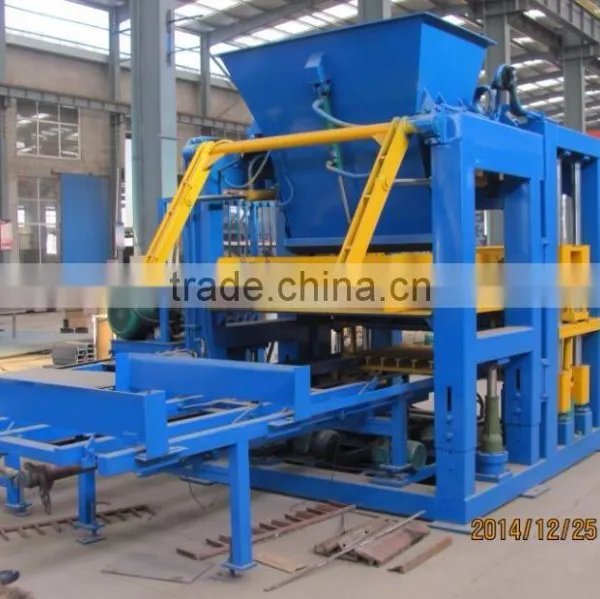

Machine details

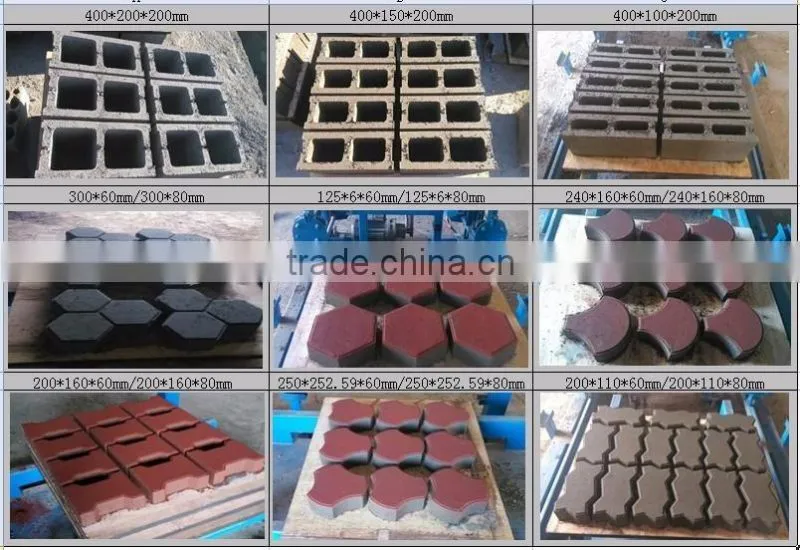

QT12-15C full automatic brick machine products samples
