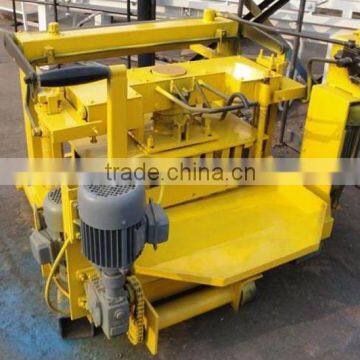

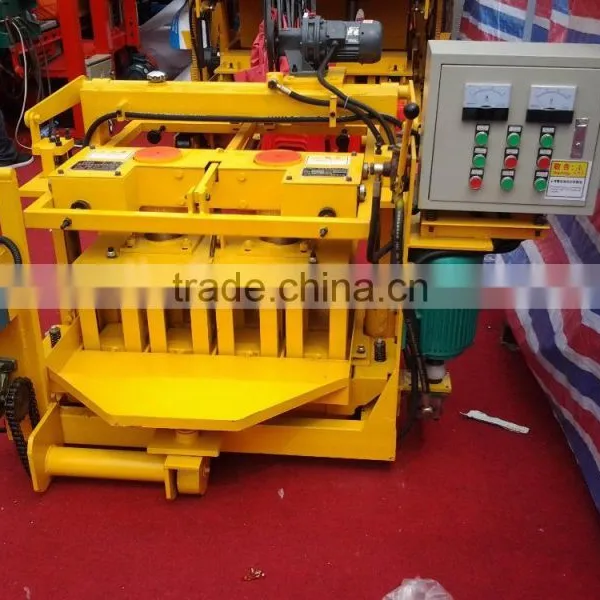

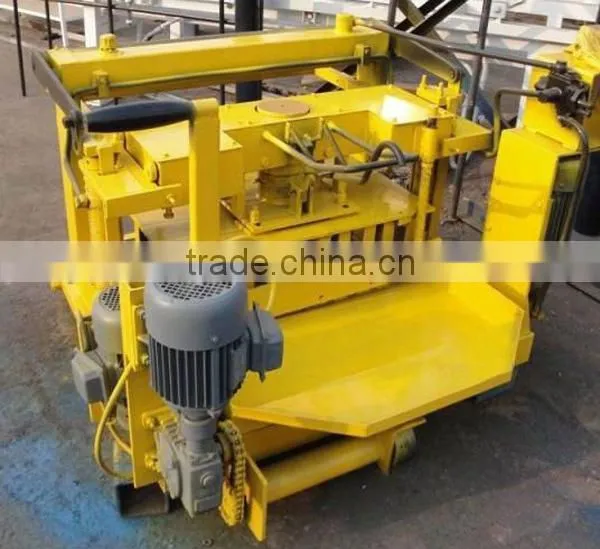

QTY4-30 hydraulic mobile egg laying cement brick machine
QTY4-30Type Hydraulic ground mould mobile brick machine, is one kind of new production of our company that synthesizing the advantage of both hydraulic and machinery, meeting the requirement of customer from the target market of oversea, basing at the principle of smaller investment with higher machinery property and it is specifically for the oversea market sale.
The hydraulic system and the machinery system of this equipment supplement each other and the operating of it is very simple. It can make the production of bricks without pallet, so it save the investment of pallet purchasing.
The major vibration form of it is mould vibration, who can make super vibration influence with small power .With the pressure of hydraulic system, it makes the raw material adding adequately and compacting adequately. The production of it could compare favourably with the production produced by the larger hydraulic machine.
It can produce various kind of concrete production by easily changing the mould.
QTY4-30 hydraulic mobile egg laying cement brick machine technical parameter
Main parameter |
QTY4-30 |
Qty of pcs per mould |
400*200*200mm |
400*250*200mm | |
Molding cycle |
30(Second) |
Production capacity |
2000~2600/ pcs/shift(8h) |
Vibration frequency |
4500/ r/min |
Exciting power |
28.6 KN |
Overall power |
5.95KW |
Overall dimension |
1300*1500*1000mm |
Molding form |
Vibration and Pressure |
Main vibration form |
Mould Vibration |
QTY4-30 hydraulic mobile egg laying cement brick machine productivity
Item |
Sample |
Size mm |
Qty/mould |
Cycle molding |
Per day 8hours |
|
Hollow block Solid brick |
|
400×200×200 |
4 |
20~25s |
5800 pcs |
|
400×150×200 |
5 |
20~25s |
7200 pcs |
|
|
400×120×200 |
9 |
20~25s |
13000 pcs |
We are one of the biggest block machine manufactures in china . our block machines with 75% market share . we have sold our block machines to Southeast Asia, Middle east , Africa, South America, North America ,Russian , Europea and so on . all of our machiens running very well .
About the block machine ,we can make the mould drawing as your requirement.and make the material proportion ,installation , commissioning, trainging the workder , and provide the good after-sales service always.
IF there is anything i can help you pls feel free to contact me by TEL : 0086-13256512899 or add my skype:linda112637
QTY4-30 hydraulic mobile egg laying cement brick machine production samples
