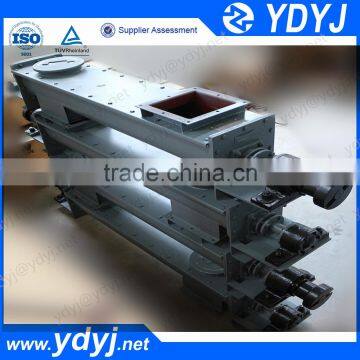

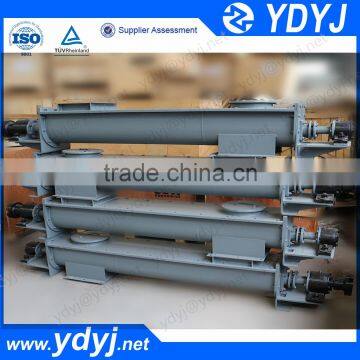

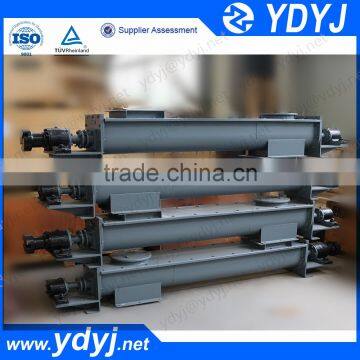

China high quality auger chip conveyor for Vietnam
- 500 Set / Sets per Month
- Shanghai guagnzhou yichang
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Screw Conveyor | Material: | Other, Carbon steel |
Material Feature: | Heat Resistant | Structure: | Conveyor System | Load Capacity: | 1.1~280 m3/h |
Place of Origin: | Hubei, China | Brand Name: | YIJI | Model Number: | LS100-1000 |
Voltage: | According to customer requirements | Power(W): | According to specific models | Dimension(L*W*H): | According to specific models |
Certification: | ISO,TUV | After-sales Service Provided: | Overseas service center available |
Product Description
Descriptions
2. High reliability,strong adaptability and easy operation.
3.Convenient installation and repair. and long service life.
4.ISO,TUV,SEW.FLENDER.
Application
1. Auger chip conveyor is a continuous conveying equipment and widely used in metallurgy, building materials, chemical engineering department, food processing and machinery etc..
2. When the inclination angle less than 20 degrees,it is suitable to convey low viscosity, non perishable, non caking, granular and powdered, pieces of material.
Working principle
Auger chip conveyor is a kind of continuous conveying equipments with spiral blade rotation to push the material forward, suitable for conveying Cereals, flour, cement, chemical fertilizer, slag, sand, stone, coal, small coal and other materials.The material can be discharged at the proper outlet at the bottom of case . Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have a good seal.
Performance and features
1. small section size, good sealing performance, stable and reliable operation, can be an intermediate point loading and unloading and safe operation, convenient repair.
2.simple structure, low manufacture cost.
Auger chip conveyor Composition
It usually consists of conveyor body, the inlet and outlet device, driving device of three parts.
It's body consists of head section, the middle section, the tail section of three parts.

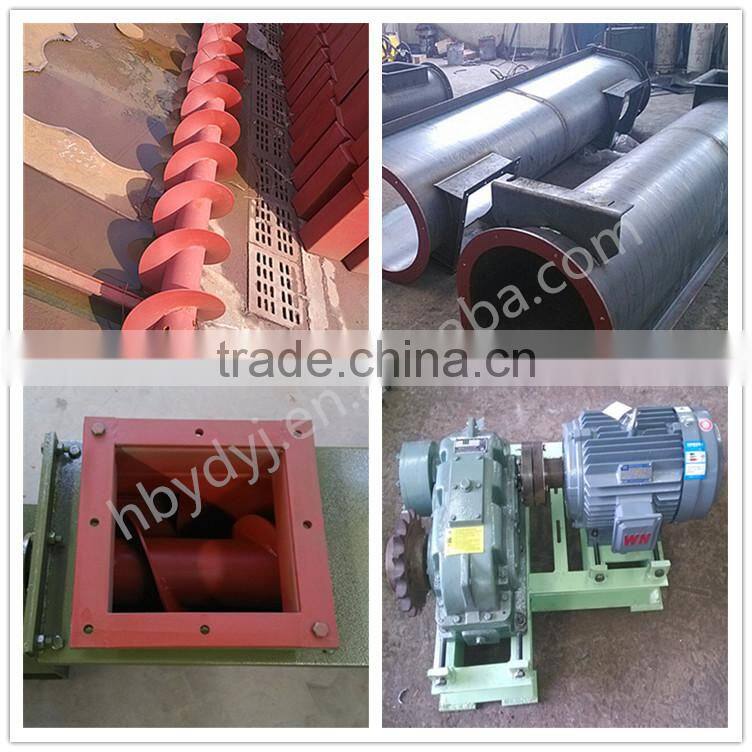

Part details

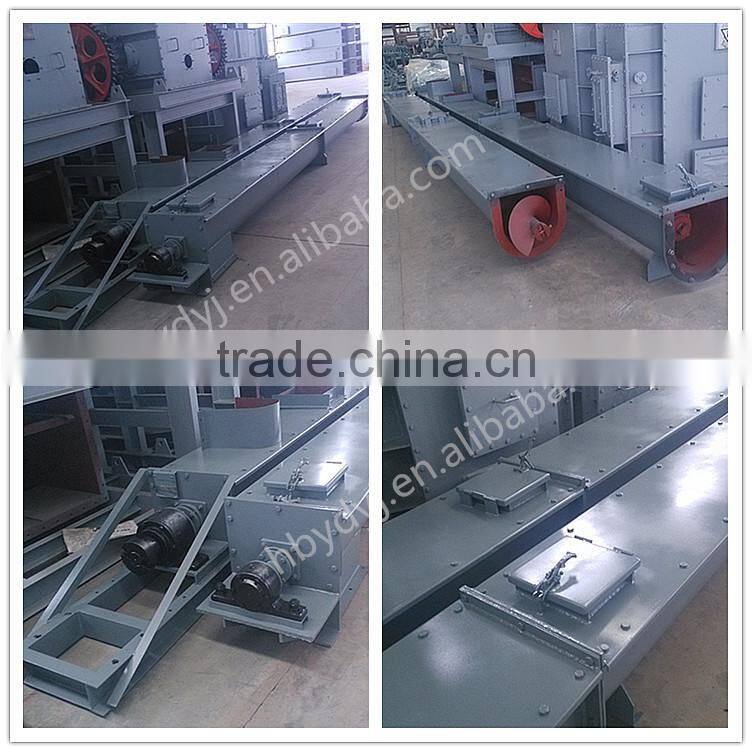

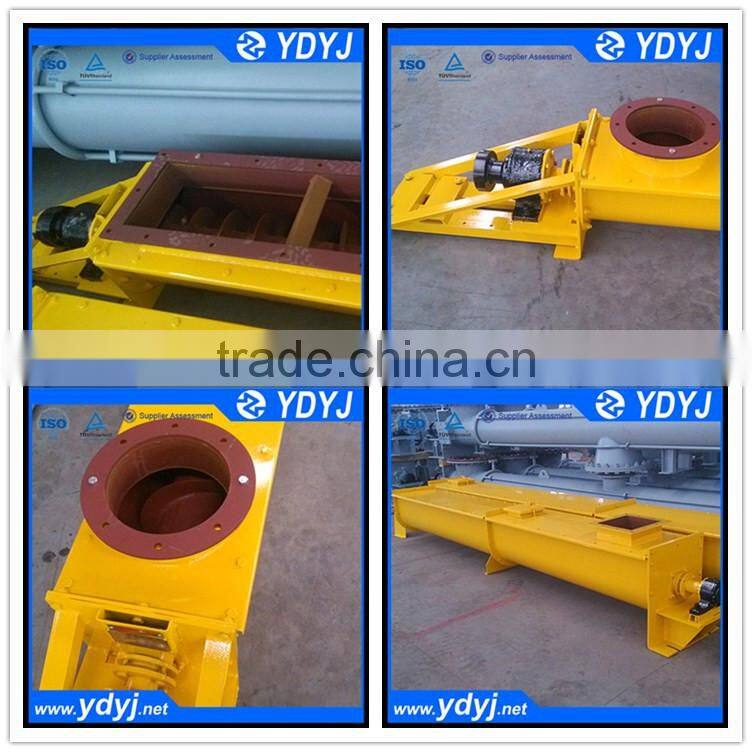

In producing

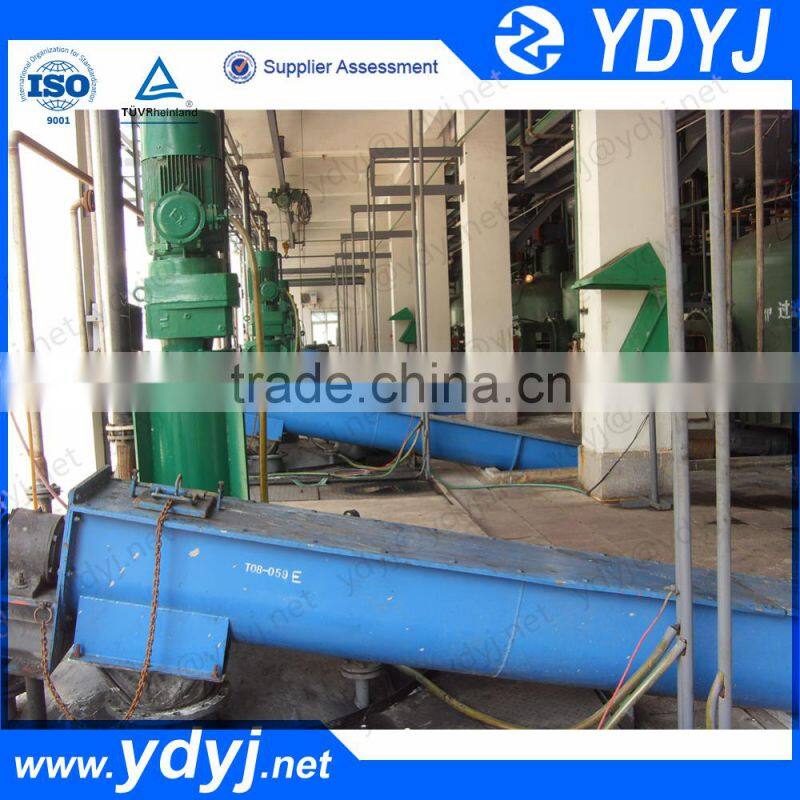

Site picture
Technical Parameter
Type | LS100 | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 | LS1000 |
Screw diameter(mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
Pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 |
Rotational speed (rpm) | 71-140 | 56-112 | 50-100 | 45-90 | 40-80 | 36-71 | 32-63 | 25-50 | 20-40 | 16-32 |
Capacity (t/h) | 1.1-2.2 | 3.1-7 | 6.31-3 | 11-22 | 16-34 | 31-62 | 50-98 | 77-140 | 126-200 | 140-280 |
Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Our service
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Please clear the following technical datas before ordering:
Q: What 's the material will be lifted?please tell us more material features.
Q:What's the conveying length between the inlet with outlet?
Q:What's the conveying capacity do you want?
