Description
2.Low noise, strong adaptability and easy operation.
3. Easy maintenance and long service life
4.ISO,TUV, SEW.FLENDER
China supplier flexible sand auger conveyor price
Introduction
Sand auger conveyor is adopted the ISO1050 standard to design, match the JB81005 profession standard. We use roll over (M1 method) or glide (M2 method) structure in the center mourn bearings. And there is clean equipment in the mouth. The positions arrange vivid inlet point and discharge hole, it has low noise, strong adaptability and convenience operation maintain. Nylon and fluorine ethylene resin are used to seal, so it has small resistance, seal completely and bear to whet.
Application
1. Power plant, grain or oil,chemical, metallurgical, paper making and so on.
2. Cement, concrete, coal dust, soda ash, flour, grain, paper pulp, etc.
Working principle
When the gear motor of screw conveyor starts, the screw blade in the case push the material and make the material do axial movement. The material can be discharged at the proper outlet at the bottom of case . Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.
Performance and feature
1. Simple structure with U shape casing, good sealing,large capacity, easy operation.
2. Working temperature is -20~50°C, with material temperature below 200°C.
3. Axle head and conveying spiral adopt spline connection, with features of convenient
mounting&diassembling, large load capacity and stability.
4. All sections of screw conveyor are connected with flange. Screw blades are integral connection.
5. Inlet and outlet chutes have many kinds of connections, such as flange, sack, universal joint, etc.

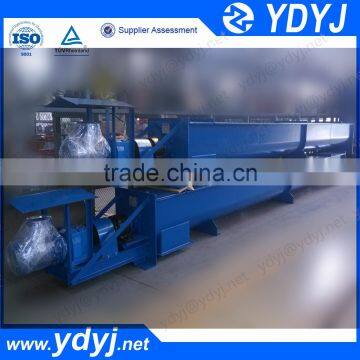

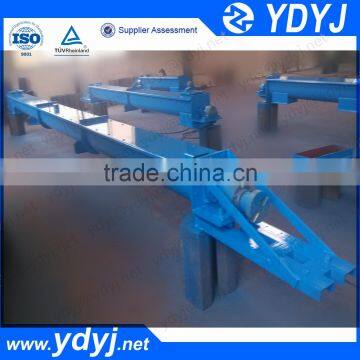

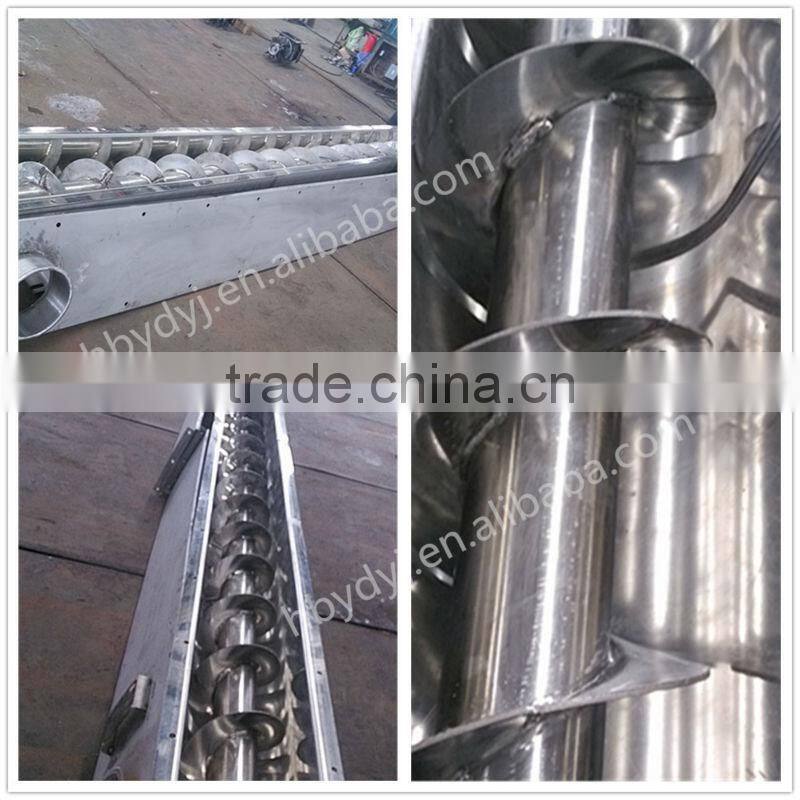

In producing
Site picture
Technical Parameter
Type |
LS100 |
LS160 |
LS200 |
LS250 |
LS315 |
LS400 |
LS500 |
LS630 |
LS800 |
LS1000 |
Screw diameter(mm) |
100 |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
Pitch (mm) |
100 |
160 |
200 |
250 |
315 |
355 |
400 |
450 |
500 |
560 |
Rotational speed (rpm) |
71-140 |
56-112 |
50-100 |
45-90 |
40-80 |
36-71 |
32-63 |
25-50 |
20-40 |
16-32 |
Capacity (t/h) |
1.1-2.2 |
3.1-7 |
6.31-3 |
11-22 |
16-34 |
31-62 |
50-98 |
77-140 |
126-200 |
140-280 |
Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Our service
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Most of auger conveyor are not standard products because of different material, different capacity and different conveying distance, please clear the following technical datas before ordering:
Q: What 's the material will be lifted?please tell us more material features.
A: The material is manganese powder , the density is 1.12t/m3,the particle size is about 5 mm, the temperature is 500C.
Q:What's the conveying length between the inlet with outlet?
A:The lifting height is 9.65 m.
Q:What's the conveying capacity do you want?
A: The required lifting capacity is30 t/h.
