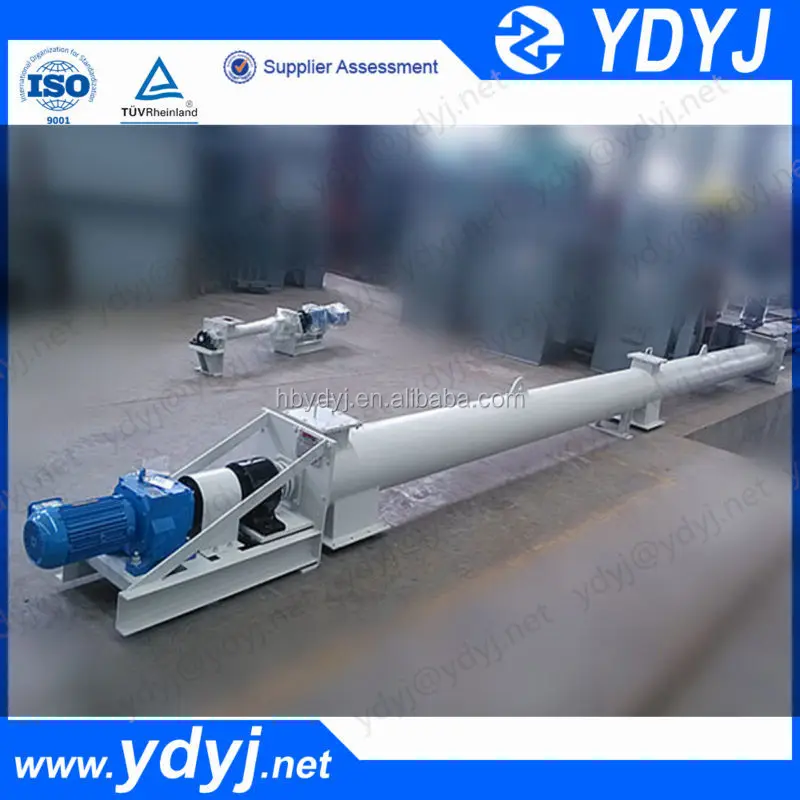

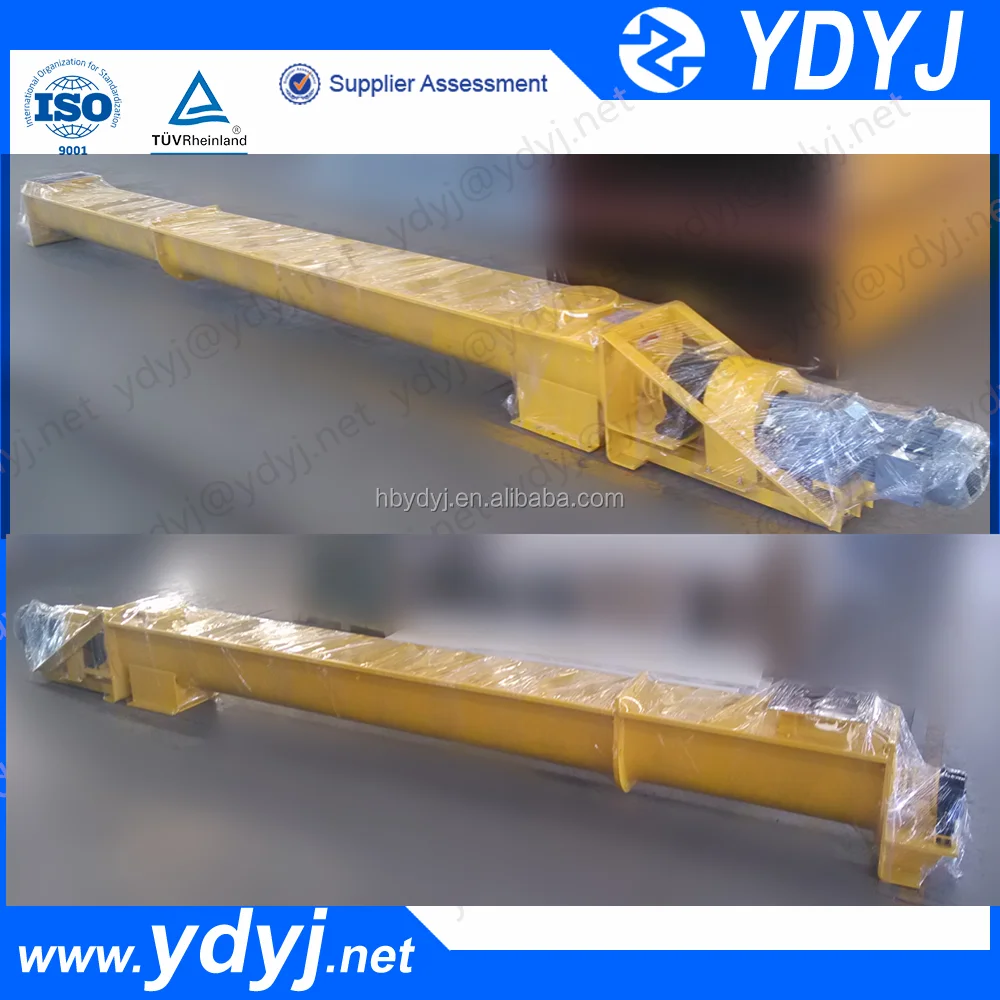

China made flexible screw conveyor for powder
Description
1.Screw conveyor with Simple structure,good sealing,large capacity
2.Low noise, strong adaptability and easy operation
3. Easy for maintenance and long service life
4.ISO,TUV,SEW.FLENDER
Working principle
When the drive device starts, the helical blade in the screw conveyor push the material and make the material do axial movement. The material can be discharged at the proper outlet at the bottom of case . Screw Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.
Application of screw conveyor
1. Power plant, grain or oil,chemical, metallurgical, paper making and so on.
2. Powder material: Cement, concrete, coal dust, soda ash, flour, grain, paper pulp, etc.
Main Features of screw conveyor
1. Simple structure, good sealing, good quality ,large capacity, easy operation and low power invest cost. 2. Working temperature is -20~50°C, with material temperature below 2000C. 3. Axle head and conveying spiral adopt spline connection, with features of convenient mounting&diassembling, large load capacity and stability. 4. All sections of screw conveyor are connected with flange. Screw blades are integral connection. 5. Inlet and outlet chutes have many kinds of connections, such as flange, sack, universal joint, etc.
Machine Parts
Name: Screw Blade
Brand: YIJI
Original: China
Screw blade consists of three forms, the solid, the belt and the spiral surface of the blade.This continuous cold rolled screw blade, which has the advantages of smooth surface, high hardness, wear resistance, one time forming, continuous no weld.
Main Features
Name: Screw casing
Brand: YIJI
Original: China
We use the steel plate bending, then the housing roughly molding, and edges with angle steel production, in each section of the shell connection is the use of angle steel bending made, to ensure the overall stability of U-shaped screw conveyor .
Machine Parts
Name: Tail section
Brand: YIJI
Original: China
Tail section contains U-shaped casing, bearing assembly, tail shaft, discharge port, observation door and other parts.
Main Features
Name: Head section
Brand: YIJI
Original: China
Head section contains U-shaped casing, bearing assembly, head shaft, inlet port, observation door and the driving device.The driving device consists of motor and reducer, according to the assembly in different ways, it is divided into direct, right and left with three.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
