China YIJI tdtg bucket elevator supplier
- 100 Set / Sets per Month
- Shanghai Tianjin Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Other, tdtg bucket elevator | Material: | Other, Carbon steel |
Material Feature: | Heat Resistant | Structure: | Conveyor System | Load Capacity: | 15~480t/m3 |
Place of Origin: | Hubei, China | Brand Name: | YIJI | Model Number: | TB250~1000 |
Voltage: | 380v or customized | Power(W): | 1.5~160kw | Dimension(L*W*H): | according to model |
Certification: | ISO,TUV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Description
1. With rich production and aftersale experience.
2. Tdtg Bucket elevator with Rectangular closed flanged structure
3.Max lifting capacity
4.ISO,TUV,SEW,FLENDER.
China YIJI tdtg bucket elevator supplier
Application scope
TB series tdtg bucket elevator for powder is widely used in power plant, metallurgy, cement, chemical, light industry and so on. It is used for lifting coal cinder ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on. The material density is not more than 2 t/m3, the site temperature is not more than 2500C.
Operating principle
When the driving device start working , it drives the puley to make the chains with buckets to do the circular movement from the below of the tail to the top of the head The head section has outlet and the tail section has inlet.
The bucket is filled with material and run to the head section, then the material is thrown out from the outlet under the action of centrifugal force according to the parabolic design.With the running, the empty bucket is back to the below tail section and be filled material from the inlet again,then be lifted up to do parabolic discharge movement . So this cycle finish the vertical transport of materials.
Features
1. Tdtg Bucket elevator for powder need small installation space and can lift more materials. bucket elevator can convey the power, for example the calcined soda, salmiac, coal powder etc.
2.The transmission capacity is large. Lift the capacity up to 480 m3/h.
3.Long use life.
Tdtg Bucket elevator components

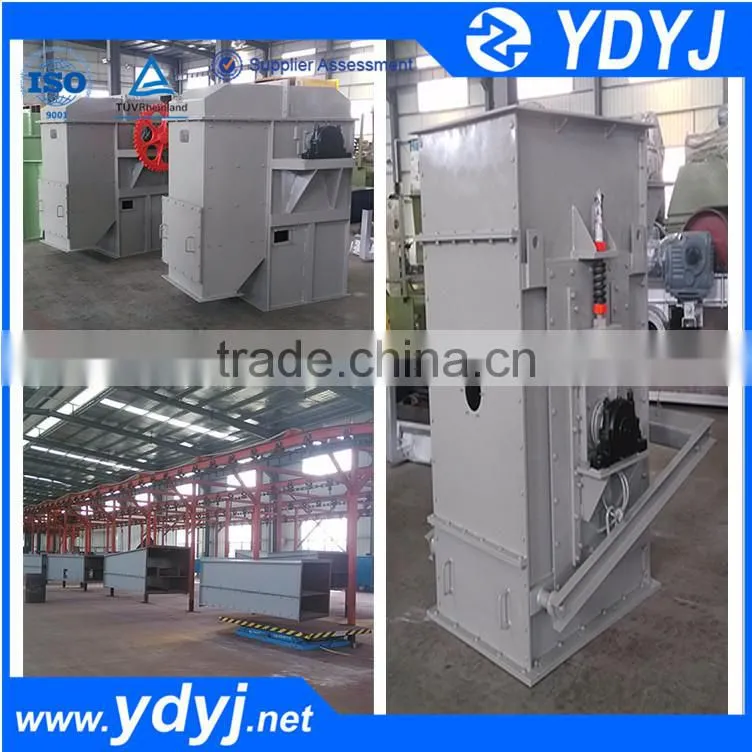

In producing

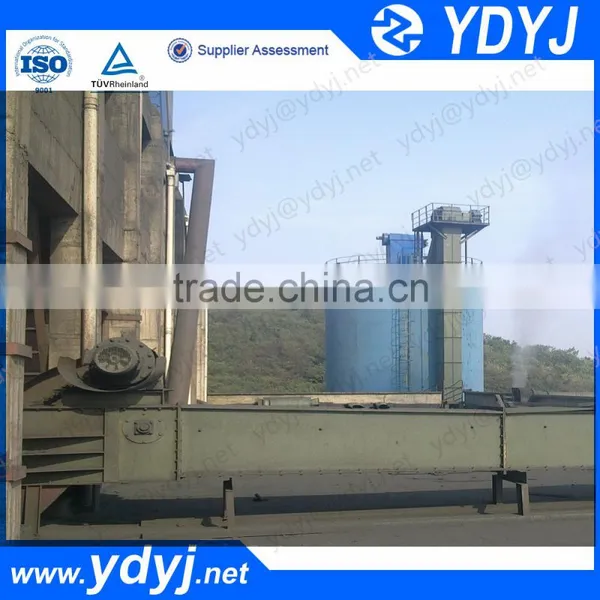

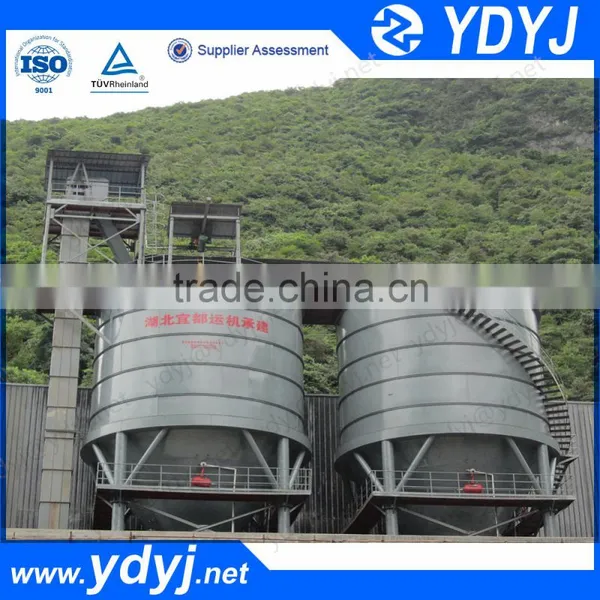

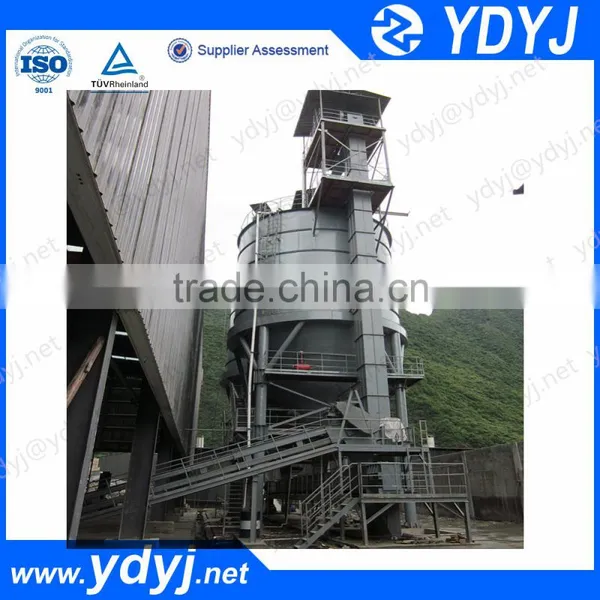

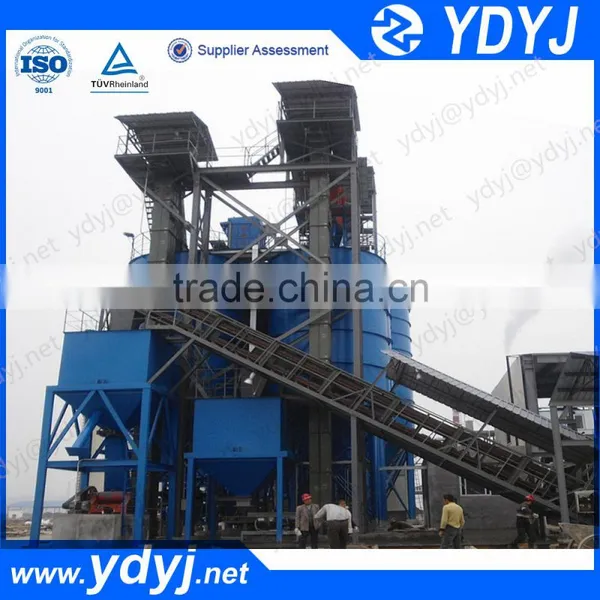

site picture
Technical parameter
Equipment Type | TB-NE250 | TB-NE315 | TB-NE400 | TB-NE500 | TB-NE630 | TB-NE800 | TB-NE1000 | |||
Bucket type | J | T | ||||||||
Capacity(m3/h) | 15-25 | 32-46 | 50-75 | 84-120 | 35-190 | 216-310 | 340-480 | |||
Bucket | Width(mm) | 252 | 315 | 400 | 500 | 630 | 800 | 1000 | ||
Capacity (L) | 3 | 6 | 12 | 25 | 50 | 100 | 200 | |||
Bucket distance(mm) | 200 | 250 | 320 | 400 | 500 | 630 | ||||
Chain | Pitch (mm) | 100 | 125 | 160 | 200 | 250 | 315 | |||
Number | 1 | 2 | ||||||||
Broken load of chain(KN) | 112/160 | 160/224 | 224/315 | 315/450 | 450/630 | 630/900 | ||||
Diameter of sprocket(mm) | 386.37 | 482.96 | 618.19 | 772.74 | 965.92 | 1217.06 |
| |||
Bucket speed (m/s) | 0.5 | |||||||||
driving shaft speed (rpm) | 24.71 | 19.78 | 15.45 | 13.26 | 9.89 | 7.85 |
Packaging & Shipping.
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements).
3. It is suitable for long distance ocean transportation.
Please clear the following technical datas before ordering:
Q: What 's the material will be lifted?please tell us more material features.
Q:What's the lifting height between the inlet with outlet?
Q:What's the lifting capacity do you want?
Company qualification certificate
Contact Us
- Hubei Yidu Yunji Mec. and Elec. Co., Ltd.
- Contact nameLisa .
- Phone86-717-4843222
- AddressEast of Luxun Road
