Specifications
1. Bucket elevator with Large lifting capacity.
2. Flanged structure and bolt connection.
3. Max lifting height up to 120 meters.
4. ISO,TUV,SEW,FLENDER.

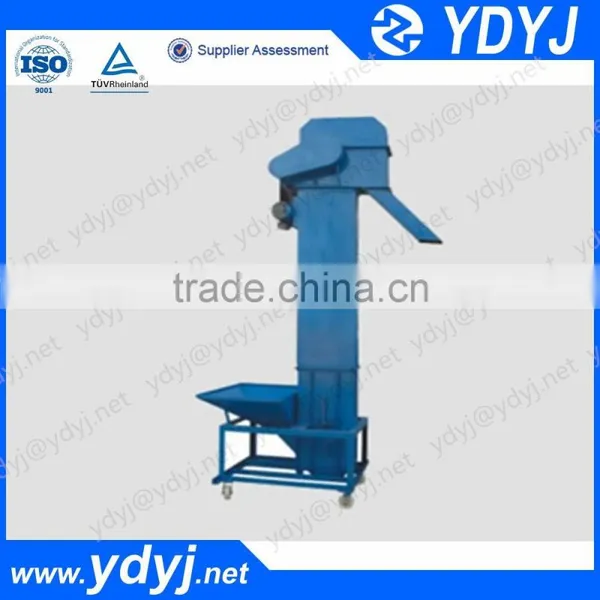

Grain Vertical Bucket Elevator/bucket elevator

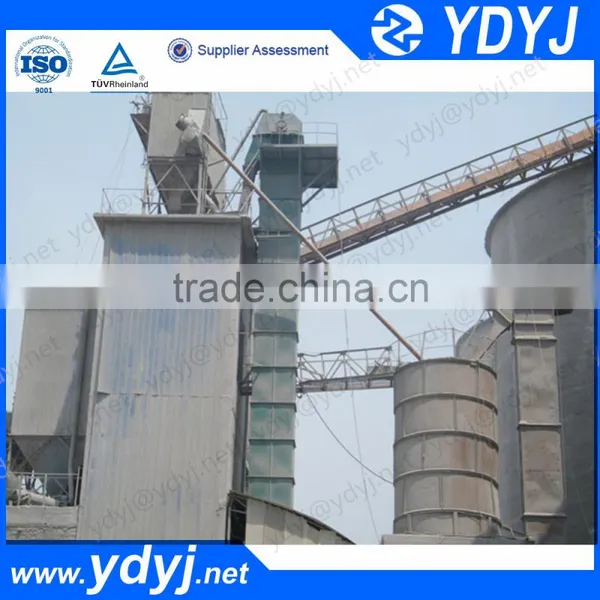

Application scope
TZD series bucket elevator is widely used in grain and oil, metallurgy, cement, chemical, light industry and so on. It is used for lifting grain ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on. The material density is not more than 2 t/m3, the site temperature is not more than 2500C.
Operating principle
When it's driving device start working , it drives the puley to make the belt with buckets to do the circular movement from the below of the tail to the top of the head The head section has outlet and the tail section has inlet.
The bucket is filled with material and run to the head section, then the material is thrown out from the outlet under the action of centrifugal force according to the parabolic design.With the running, the empty bucket is back to the below tail section and be filled material from the inlet again,then be lifted up to do parabolic discharge movement . So this cycle finish the vertical transport of materials.
Features
1. Grain bucket elevator need small installation space and can lift more materials. for example wheat, soybean , corn etc.
2.The transmission capacity is large, it is up to 1000 t/h.
3.Long use life.

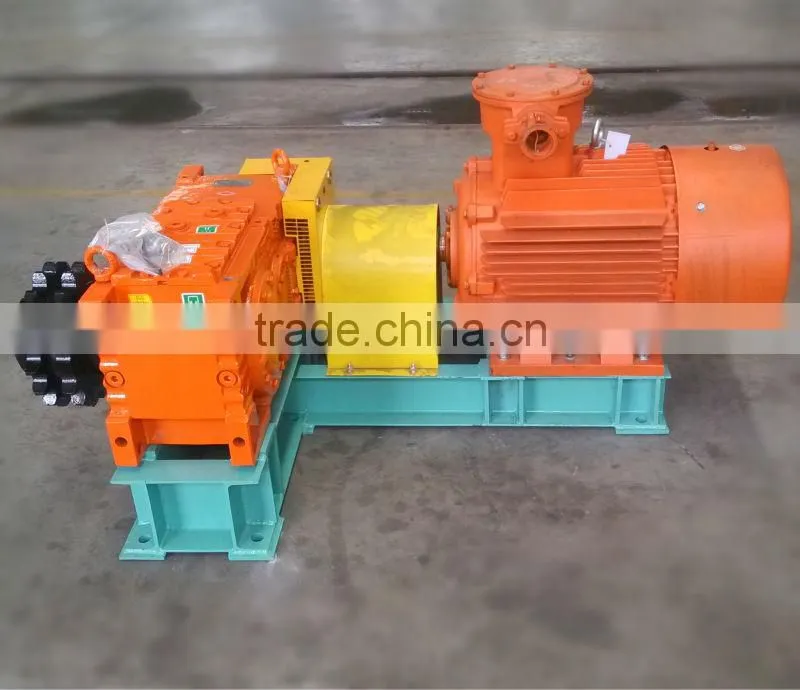

Elevator Components
Belt and plastic buckets
Technical parameter
Type |
TZD200 |
TZD250 |
TZD300 |
TZD400 |
TZD500 |
TZD650 |
TZD800 |
TZD1000 |
Belt width(mm) |
200 |
250 |
315 |
400 |
500 |
650 |
800 |
1000 |
Bucket Capacity (L) |
1.21 |
2.35 |
3.1 |
6.1 |
11.5 |
2*3.1 |
2*6.1 |
2*11.5 |
Bucket pitch(mm) |
105-300 |
125-150 |
145 |
195 |
255 |
145 |
195 |
255 |
Belt speed (m/s) |
1.76-2.75 |
1.76-3 |
1.93-3.05 |
1.93-3.05 |
1.97-3.1 |
2.2-3.87 |
2.5-3.94 |
2.5-3.94 |
Capacity (t/h) |
10-50 |
30-100 |
50-150 |
80-150 |
100-200 |
150-300 |
200-400 |
400-600 |
Max lifting height (m) |
60 |
60 |
65 |
65 |
65 |
65 |
65 |
65 |
Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Our service
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Q: What 's the material will be lifted?please tell us more material features.
Q:What's the lifting height between the inlet with outlet?
Q:What's the lifting capacity do you want?
