Ore Grinding Machine Ball Mill--- CHINA YUFENG
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, ball mill / grinding machine / ball grinder
Capacity(t/h):
8-210 t/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ball Mill & Classifier 200-8000 Mesh --Yufeng BrandNegotiableMOQ: 1 Set -
Carborundum Utrafine Powder Production Line Raymond Mill & Classifier --Yufeng BrandNegotiableMOQ: 1 Set
-
Nickel Ore Iron Ore Oxidizing Roasting Kiln Rotary Kiln --Yufeng BrandNegotiableMOQ: 1 Set
-
Wet Material Rotary Drying Machine Sand Sawdust Wood Flake Dryer,2-500t/hNegotiableMOQ: 1 Set
-
Pulse Bag Filter for SaleNegotiableMOQ: 1 Set
Condition
New
Type
Other, ball mill / grinding machine / ball grinder
Capacity(t/h)
8-210 t/h
Place of Origin
Henan, China
Brand Name
Yufeng
Model Number
mill
Zhengzhou Yufeng Heavy Machinery Co., Ltd has been one of the largest mining machinery manufacturers in China. It mainly deal with Stone and mining Crushing and screening equipments, Mineral processing equipments, Artificial sand and stone making equipments and AAC equipments,rotary drying equipments and rotary kiln , Lime and Cement production equipment and other equipments. The company welcomes all friends from home and abroad to visit Yufeng Heavy company to check the high quality products. The service center sincerely hopes that we can have a successful cooperation
Product Description of high efficiency ball mill:
Ball mill, grinding mill is an efficient tool for grinding many materials into fine powder
Used to grind many kinds of mine and other materials
Widely used in building material, chemical industry, and more
There are two ways of grinding: The dry process and the wet process
It can be divided into tabular type and flowing type according to different forms of discharging material.
Applications:
Key equipment for regrinding
Used for cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and more
Working principle:

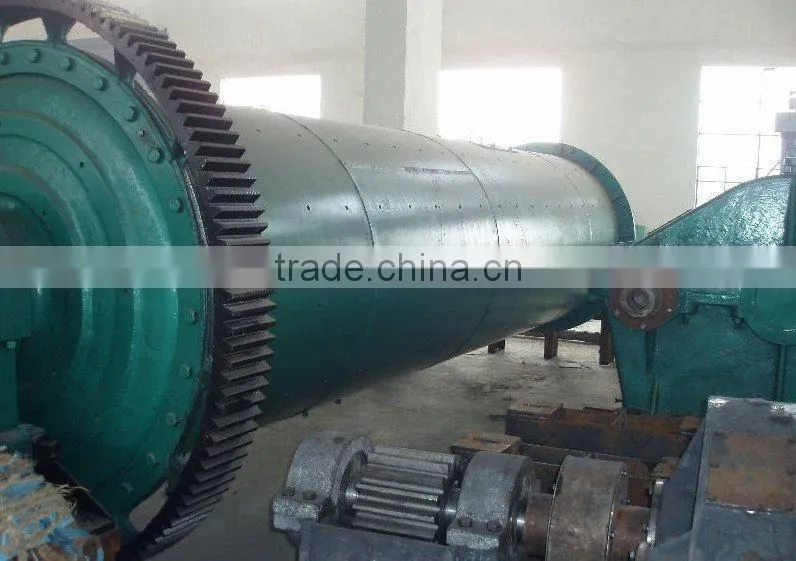

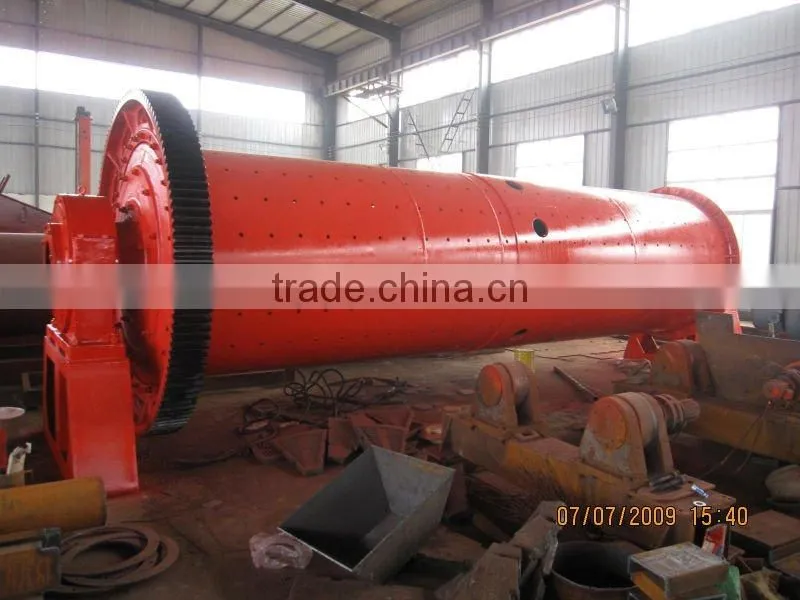

This ball grinding mill is horizontal type and tubular running device, has two warehouses
This ball mill machine is grid type and its outside runs along gear
The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device
In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board, when the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to make the material grinding and striking After grinding, coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scale board In the end, the powder is discharged by output material board and the end products are completed.
Ball mill features and benefits:
Ball mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control ) and more, the hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear, the barrel body is wearable well and bears wearable scale board, this machine run steadily and works reliably. Energy-Saving Ball mill, grinding Mill.
Used to grind many kinds of mine and other materials
Widely used in building material, chemical industry, and more
There are two ways of grinding: The dry process and the wet process
It can be divided into tabular type and flowing type according to different forms of discharging material.
Applications:
Key equipment for regrinding
Used for cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and more
Working principle:
This ball grinding mill is horizontal type and tubular running device, has two warehouses
This ball mill machine is grid type and its outside runs along gear
The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device
In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board, when the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to make the material grinding and striking After grinding, coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scale board In the end, the powder is discharged by output material board and the end products are completed.
Ball mill features and benefits:
Ball mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control ) and more, the hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear, the barrel body is wearable well and bears wearable scale board, this machine run steadily and works reliably. Energy-Saving Ball mill, grinding Mill.
Main Technical Parameters:
Model |
Cylinder speed(r/min) |
Ball capacity (t) |
Material-in size(mm) |
Material-out size(mm) |
Capacity(t/h) |
Motor power(kw) |
Weight(T) |
Ø900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
Ø900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
Ø1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
Ø1200×3000 |
32 |
5 |
≤25 |
0.074-0.4 |
1.6-5 |
45 |
12.8 |
Ø1200×4500 |
32 |
7 |
≤25 |
0.074-0.4 |
1.6.5.8 |
55 |
13.8 |
Ø1500×3000 |
27 |
8 |
≤25 |
0.074-0.4 |
2-5 |
90 |
17 |
Ø1500×4500 |
27 |
14 |
≤25 |
0.074-0.4 |
3-6 |
110 |
21 |
Ø1500×5700 |
27 |
15 |
≤25 |
0.074-0.4 |
3.5-8 |
132 |
24.7 |
Ø1830×3000 |
24 |
11 |
≤25 |
0.074-0.4 |
4-10 |
180 |
28 |
Ø1830×6400 |
24 |
23 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
Ø1830×7000 |
24 |
25 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
36 |
Ø2200×5500 |
21 |
30 |
≤25 |
0.074-0.4 |
10-22 |
370 |
48.5 |
Ø2200×6500 |
21 |
31 |
≤25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
Ø2200×7500 |
21 |
33 |
≤25 |
0.074-0.4 |
16-29 |
380 |
56 |
Ø2400×7000 |
21 |
34.5 |
≤25 |
0.074-0.4 |
18-32 |
400 |
62.8 |
Ø2400×8000 |
20.4 |
36 |
≤25 |
0.06-0.08 |
18-36 |
410 |
81.2 |
Ø2700×3600 |
18 |
37 |
≤25 |
<0.08 |
50 |
410 |
77.5 |
...
