small animal feed pellet machine, pellet production line
Raw material used for wood pellet machine:
Wood Pellets is mainly made of any wood waste and biomass particles, such as wood sawdust, wood shavings, wood chips, wood logs, straw, rice husk, coffee husk etc. At a wood pellet plant, raw material need to be well prepared before pelletizing, then get dried, compressed, and formed into small eraser-sized bits, the wood pellets get from wood pellet plant are clean, pleasant smelling and smooth to touch.
Complete processes of wood pellet production line:

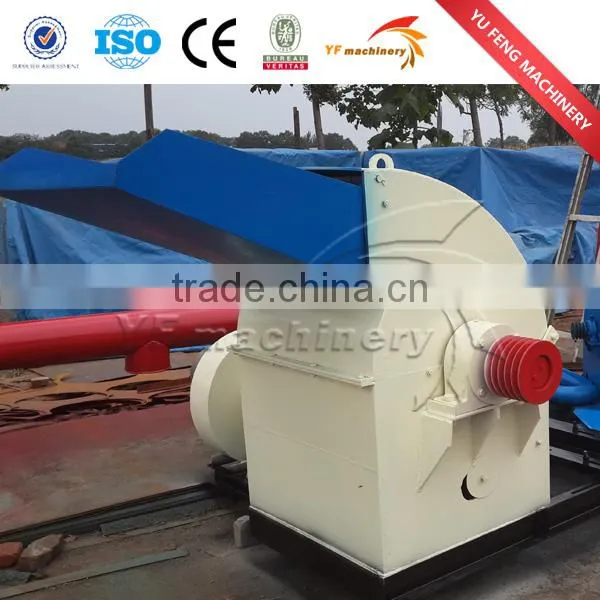

1.crushing process--hammer mill
The hammer mill is a machine whose purpose is to crush materials by the collision between the high-speed hammer and materials. Our SFSP series chipping and crushing machine is your best choice. It mill raw material like tree branch, wood shavings, wood chips, wood logs, cotton stalk, corn stalk, wheat straw etc, with size less than 50mm (diameter). After milled, the output size can reach diameter 3-5 mm, then it is pushed to next process to get dried and pelletized.

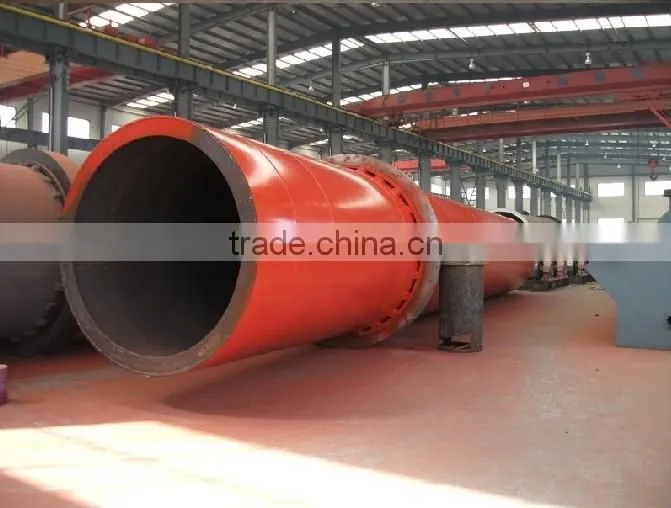

2.drying process--rotary dryer
After crushing process, the wood and biomass material need to be well conditioned on moisture before pelletizing. The best moisture content to pelletizing is about 14-16%. Our rotary dryer is made up of burning stove and main rotary dryer which is high efficiency in drying the wood and biomass material. It use steam to heat air and contact material to remove certain degree of moisture. It is very important for wood pellet plant to using moisture detector which will determine the most suitable moisture before pelletizing.

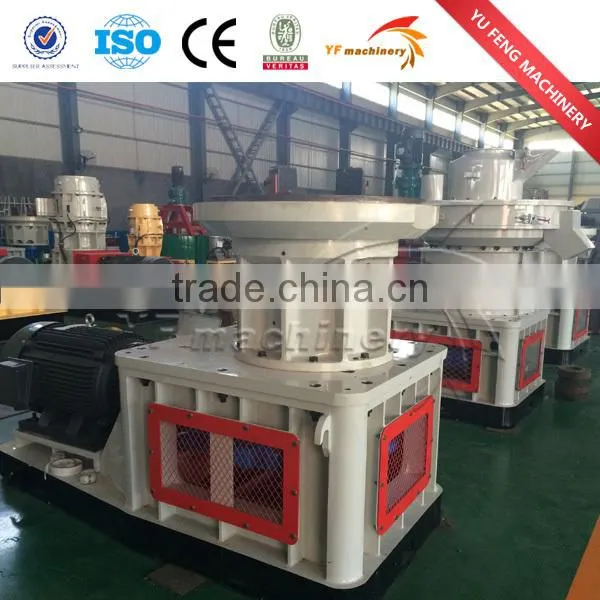

3.pelleting process-pellet machine/pellet mill
Ring Die wood pellet machine is the heart of the pellet machine production line. The Pellet machine is widely used in compacting of wood, straw, other biomass sources into pellet. Capacity ranges from 1T to 10T per hour. Our MZLH series pellet mill adopt SKF bearings from Sweden and NSK bearings from Japan, the motors in the wood pellet is from Siemens, high quality components make the pellet mill more efficient and durable.
oling process--cooling machine
After the pelletizing process, the temperature of the wood pellet is about 60-80 degrees Celsius, and the moisture content of the wood pellets is about 15%. A cooler must then be used to reduce the moisture content of the wood pellet to about 3-4%, thereby making the wood pellet easy to store. However, some customers said that the local climate is very humidity, they want to cool the wood pellets with moisture 7-8%. It is no problem, our new stabilizer combined cooler can do it well.
5.Packing process-pellet packing machine
After cooling process, the wood pellets will not directly enter into the fuel process, avoiding the wood pellet affected with damp, the packing process is very necessary. The packing process is effectively handled by our Semi-Auto Packing Machine.

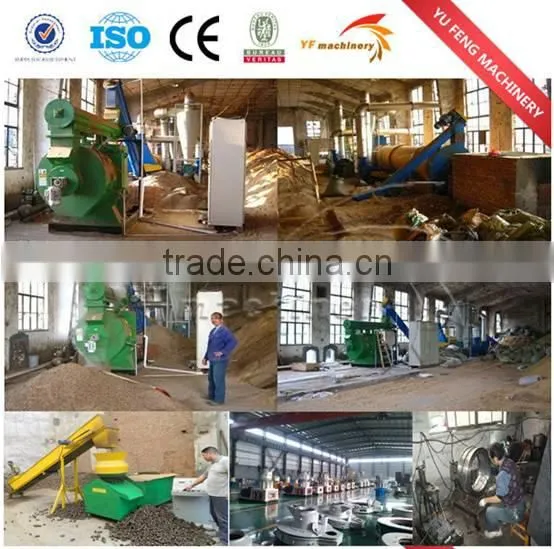

Some pictures for your reference:
Payment terms:
1.30% deposit of total amount to be paid by T/T in 5 working days after signing sales contract,the balance 70% will be paid before goods leaves factory.
2.30% deposit of total amount to be paid by T/T 5 working days after signing sales contract,the balance 70% can be paid by L/C before goods leaves factory.
3.we can negotiate specific payment terms with our client.
Packing Information:
1.20GP/ 40GP in standard container
2.in bulk cargo if goods is large
Why choose Zhengzhou Yufeng Heavy Machinery Co.,Ltd?1. We are a manufacturer, which has almost 20 years of experience in this industry.
2. You can get a flight to Xinzheng Airport. We are just about 40-50mins away from Xinzheng Airport.
3. Two Years (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.
4.we can send engineers to install the plant, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
If you have any other questions about our products or our company, you can contact Marcie through mobile phone:8618236781826 or skype:driermachine.
...
