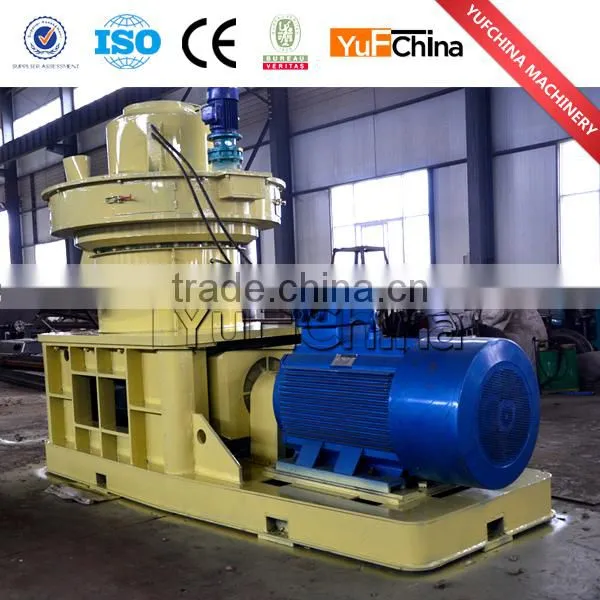

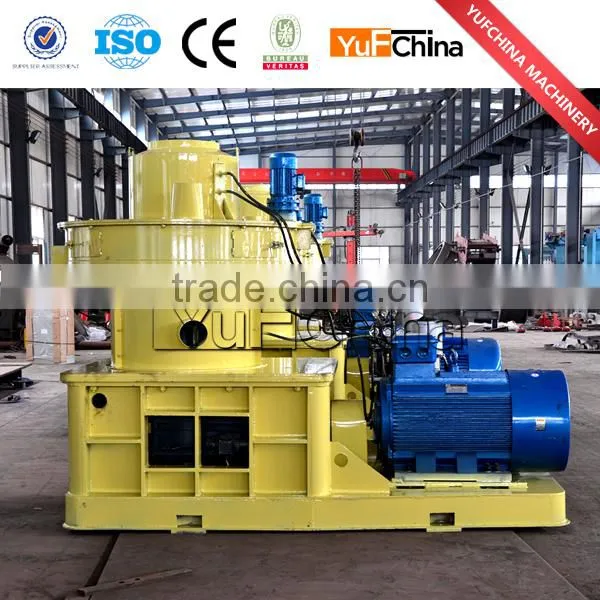

1.5t/h Output CE Approved Palm Wood Pellet Making Machine
Raw material applying for wood pellet making machine:
1.Wood log:First use wood chipper convert wood log to wood chips ,if wood chips moisture >20%,We should add a dryer to dry the wood chip until mositure <20% .
2.Wood chips: Wood chips with moisture >20%,We should add one dryer to dry wood chips until <20%. If Wood chips are dry ,moisture <20%,it can be crushed by hammer mill directly,then it comes out as sawdust ,sawdust can make pellet directly;
3.Sawdust: Moisture >20%,need dry until mositure <15-20%,if sawdust size <8mm,then make pellet directly.
4.Palm fiber and EFB:Further crushed until size <1mm,dried until moisture <20%.
5.Rice husk :Without hammer mill,when moisture <20% can make pellet directly.
6.Straw:Further crushed by hammer mill
Machine needed of the pellet making production line
Different material area may need different machine ,It according to your material .
Wood chipper ---You may need a dis or drum wood chip to chipping wood log or wood board to wood chips 2-3cm.
Wood dryer---If wood chips moisture>15%,you need dry it until <15%.
Hammer mill----To crush the material size <8mm.
Biomass pellet machine---To make wood pellet.
Cooler---Cool and dried the pellet until get standard
Features of wood pellet making machine
1.Vertical die, feeding vertically; No arching of raw materials, easy for heating dissipation.
2.Die fixed, rollers rotating, materials centrifugal, evenly distributed around.
3.Double-layer dies, up and down dual-use, high capacity, saving energy
4.Independent lubrication; high pressure filtration, clean and unblocked
5.Independent and frequency changeable cutting device, ensure formation rate of pellets
Wood pellet making machine technical parameters
|
|
Pellet size |
Inner dia.(mm) |
Production(t/h) |
Dimension(mm) |
Weight(t) |
YFK450 |
55 |
Φ4-Φ12 |
450 |
0.8-1 |
2200x900x1600 |
3 |
YFK550 |
75 |
Φ4-Φ12 |
550 |
1-1.2 |
2300x1000x1780 |
5 |
YFK560 |
90 |
Φ4-Φ12 |
560 |
1.5-2 |
2600x1300x2300 |
6.3 |
YFK580 |
160 |
Φ4-Φ12 |
580 |
2-2.5 |
2900x1300x2400 |
7.5 |
YFK680 |
160 |
Φ4-Φ12 |
680 |
2-2.5 |
3200x1400x2400 |
8.5 |
YFK850 |
220 |
Φ4-Φ12 |
850 |
3-3.5 |
3750x1650x3250 |
12.6 |
YFK880 |
315 |
Φ4-Φ12 |
880 |
4-5 |
4300x1900x3600 |
14.5 |

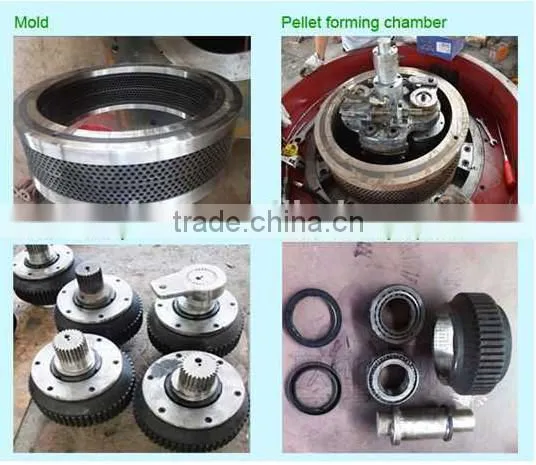

Wearing parts for wood pellet making machine
Final pellets from wood pellet machine:
Pellets applying in industrial boiler:
Shipping scene:
Operating site:
Payment terms:
1.30% deposit of total amount to be paid by T/T in 5 working days after signing sales contract,the balance 70% will be paid before goods leaves factory.
2.30% deposit of total amount to be paid by T/T 5 working days after signing sales contract,the balance 70% can be paid by L/C before goods leaves factory.
3.we can negotiate specific payment terms with our client.
Packing Information:
1.20GP/ 40GP in standard container
2.in bulk cargo if goods is large
Why choose Zhengzhou Yufeng Heavy Machinery Co.,Ltd?1. We are a manufacturer, which has almost 20 years of experience in this industry.
2. You can get a flight to Xinzheng Airport. We are just about 40-50mins away from Xinzheng Airport.
3. Two Years (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.
4.we can send engineers to install the plant, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
If you have any other questions about our products or our company, you can contact Marcie :
...
