Yufeng Brand waste wood pellet making machine
Raw materials for wood pellet making machine
1.wood waste, sorbs, branch, palm tree, sugarcane residue, saw dust , medical slag, hay, discarded edible fungus bags
2.bean stalk, wheat stalk, corn stalks, cotton stalks, sunflower stalks, mustard stalk, rice stalks, rice husk, coffee Husk, cotton shell, peanut shell, rice shell, coconut shell.
Description of wood pellet making machine
Pelletizing is the process of making logs into solid fuel. the final solid fuel pellets is clean, pleasant and smooth, and its density is more than 1.0 g/m3. The objects are used for burning purposes.
Process of wood pellet making machine
1.Crushing Process:
Depending on the different input material, we fit out the suitable Crushing machines. If the raw material is big logs with diameter less 300mm or big timber cutter, our -Chipping and Crushing Machine is your best choices; While Hammer Mill is widely used to crush each kind of straw, wood chip, tree branch, bark and leftover bits from agricultural wastes. The best moisture content in the Crushing Process is less 20%, and the thickness of the wood chip is less 5mm.
If the moisture of wood chips is more than 20%, please first dry the wood chips using drum dryer.
Note: we have different types of crusher to work on different kinds of raw materials, such as rice husk, straw, wood chipps,etc. you can tell us your raw materials and then our engineer with provide you the most suitable crusher.(we have different types of crusher in our factory)
2. Drying Process:
The best moisture content to pelletizing is about 14-16%. Our new Rotary Dryer is made up of Burning Stove and Main Rotary Dryer, which can realize to reduce the moisture from 50% to 10%, and save about 30% energy consumption .
3.pelletizing process:
Wood Pellet Mill is the most important equipment, which have the following features:

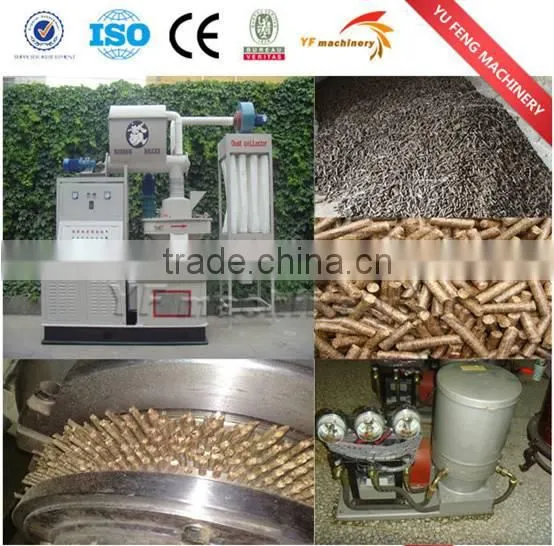

Tips: the picture above is our ring die wood pellet mill, which is with big capacity. we also have the flat die wood pellet mill for sale. we can give you the most suitable configuration according to your demands.
4.Cooling Process:
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, so this wood pellet is easy to store.
But considering the feedback from some foreign clients, the local climate is very humidity; They hope to cool the wood pellet with moisture 78%. In order to satisfy the different need from different clients, we proide certain cooler to the customer.
5. Packing Process:
After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we adopt domestic best Packing Machine.
Wearing parts for your reference:
Operating in our site:
12sets pellet production line exported to America:
Exported to Thailand:
If you have any other questions about our products or our company, you can contact Marcie through mobile phone number:8618236781826 or skype:driermachine.
...
