Specifications
small pellet machine1.ring die wood pellet machine
2.75kw-315kw
3.with automatic lubrication system
4.high alloy steel mold
small pellet machine
Applied material for small pellet machine
1) wood waste, scobs, branch, palm tree, etc;
2) bean straw, wheat straw, corn straw, cotton straw, rice straw, rice husk, etc;
3) cotton shell, peanut shell, rice shell, palm tree, coconut shell, etc;
General introduction of small pellet machine
1.Wood pellet machine adopts advantages of both horizontal ring die and flat die pellet machine. When it works, rollers( 3 roller) move, die stable. It can press very low adhesive biomass waste into high density pellets. Pellets density can be 1.1-1.4 ton/m3.
2. Wood pellet machine adopts vertical feeding materials advantages, feed materials vertically and directly to pelletizing room. ring die and roller assemble works in a horizontal way. Other suppliers ring die only feed materials from gear box side and its ring die work in a vertical level. their feeding speed and working efficiency are both very lower.Not suitable for press wood pellets.
3.Wood pellet machine has depent lubricate system, which can lubricate bearing inside of the roller automatically, protecting the spare parts. So life span are very long.
4.Wood pellet machine contains hydraulic pressure pump, which can adjust pressure automatically to fit for different materials pressure ratio. When adjusted to the fit pressure, pressure will keep stable automatically, but other supplier pellet machine need to adjust pressure manufally each time use. Very trouble to operate.
5.Wood pellet machine work with fan blower and bag dust collector.
Technical parameters for your reference:
|
|
Pellet size |
Inner dia.(mm) |
Production(t/h) |
Dimension(mm) |
Weight(t) |
YFK450 |
55 |
Φ4-Φ12 |
450 |
0.7-0.8 |
2200x900x1600 |
3 |
YFK550 |
75 |
Φ4-Φ12 |
550 |
1-1.2 |
2300x1000x1780 |
5 |
YFK560 |
90 |
Φ4-Φ12 |
560 |
1.5-1.8 |
2600x1300x2300 |
6.3 |
YFK580 |
160 |
Φ4-Φ12 |
580 |
1.8-2 |
2900x1300x2400 |
7.5 |
YFK680 |
160 |
Φ4-Φ12 |
680 |
2.5-3 |
3200x1400x2400 |
8.5 |
YFK850 |
220 |
Φ4-Φ12 |
850 |
3.5-4 |
3750x1650x3250 |
12.6 |
YFK880 |
315 |
Φ4-Φ12 |
880 |
4-5 |
4300x1900x3600 |
14.5 |

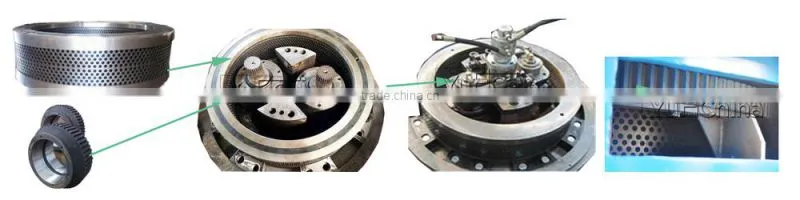

Wearing parts-ring die mold and roller assemby
Ring die mold wearing life-800-1000hrs-alloy steel
Roller assemby:700-800hrs--alloy steel
Final products for your reference:
Shipping scene pictures for your reference:
Any questions, please contact Marcie:
