High efficiency stone mill, HOT!!!! --CHINA YUFENG

Zhengzhou Yufeng Heavy Machinery Co., Ltd is founded in 1986, it was operated by Government and now is operated by private shareholder. It mainly deal with crushing and screening equipments, mineral processing equipments, artificial sand and stone making equipments and AAC equipments and lime and cement production equipments and other equipments.

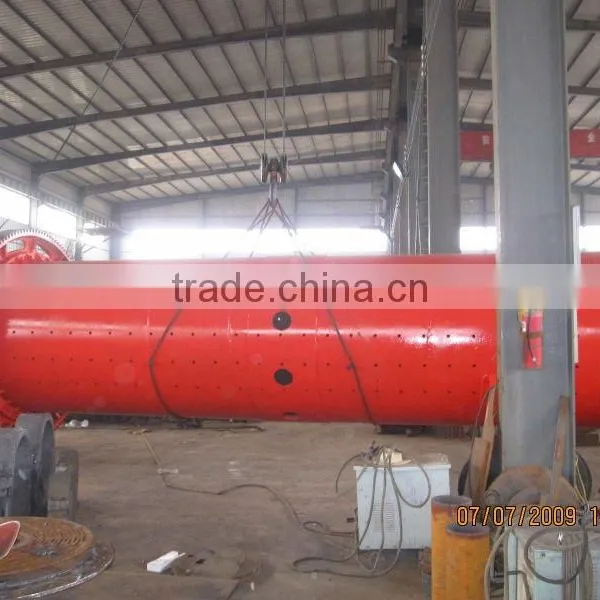

Introduction of Ball Mill:

Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

Application of Ball Mill:

The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.

Ball Mill Working principle:

The ball mill is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.

Ball Mill Main Technical Parameters:

...
