120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry

120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry thumbnail-1
120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
feed bulk and particle materials in sand production line,crushing etc
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Zhengzhou Huanqiu Heavy Industries Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application feed bulk and particle materials in sand production line,crushing etc
Power Type Electric
Capacity(t/h) 120-560t/h
Place of Origin Henan, China
Brand Name GMG Vibrating Screening Feeder
Model Number GZD or ZSW series
Power(W) 3.7*2-22kw
Dimension(L*W*H) various
Weight 3607-7800kg
Certification ce, iso90001:2008
Warranty 0ne year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Vibrating Grizzly Feeder
1.Stable vibration
2.reliable performance
3.simple maintenance, operation
4.CE&ISO

Vibrating Feeder Specification:

Vibrating Grizzly Feeder

1.stable vibration and long service life
2.reliable running, convenient installation
3.light weight

4.best after-sale service

petitive vibrating feeder price



Applacation of 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry:



This vibrating feeder is mainly used to feed bulk or particle materials evenly, regularly and continuously in various fields. When used in sand production line, it can continuously feed materials for crushing machines, and also carry out coarse screening for materials.


It is widely used in crushing work in industries like metallurgy field, coal or mining industry, mineral refining field, chemical industry, grinding sector, etc.



120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry

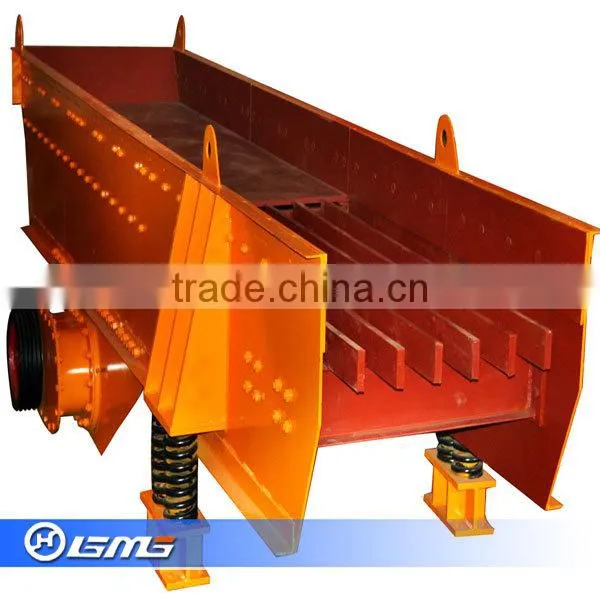

Composition of 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry:



Vibrating Screening Feeder is mainly composed of a vibration machine frame, vibration motor, spring, bearing seat and a wear resistant lining board.



120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry



Features of 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry:
Smooth vibration,
Reliable operation,
Long service life,
Low noise,
Low power consumption,
Easy to adjust,
Simple structure,
Easy to install,
Light weight,
Small volume,
Simple maintenance.

 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry

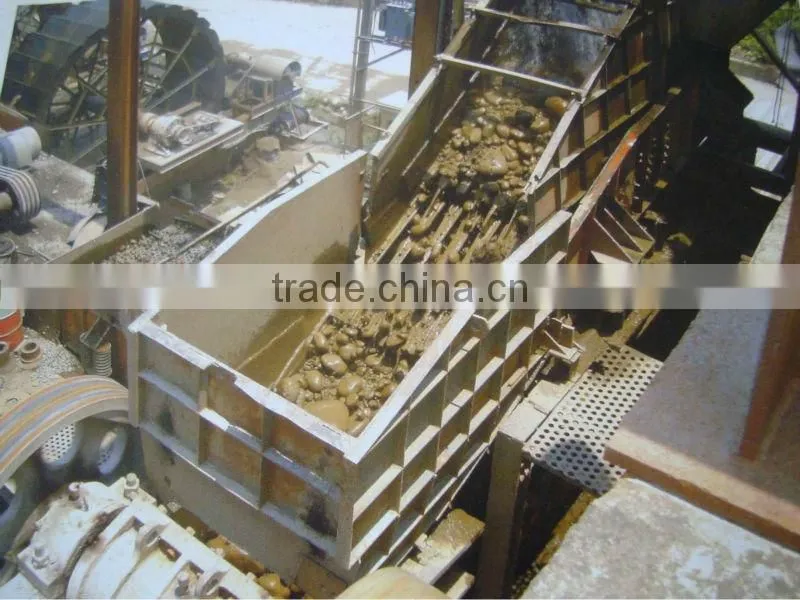

Working Principle of 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry:




The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line.

When materials are fed into the feeder, they may be thrown up and move like Para curve, then fall down. The materials will move forward on the slope surface of the feeder.







Technical Parameter of 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry:



Model Max.             feeding             (mm) Pocessing             capacity(t/h) Motor             power(kw) Obliquity             of material             trough Total             weight             (kg) Trough             size             (mm) Dimensions             (L*W*H)(mm)
GZD-850*3000 400 120 3.7*2 5 3607 850*3000 3110*1800*1600
GZD-1000*3600 500 150 5.5*2 5 3895 1000*3600 3850*1950*1630
GZD-1100*4200 580 240 5.5*2 5 4170 1100*4200 4400*2050*1660
GZD-1100*4900 580 280 7.5*2 5 4520 4900*1100 5200*2050*1700
GZD-1300*4900 650 450 11*2 5 5200 4900*1300 5200*2350*1750
ZSW-380*95 500 96-160 11 0 4082 3800*960 3920*1640*1320
ZSW-490*110 630 120-280 15 0 5352 4900*1100 4980*1830*1320
ZSW-600*130 750 400-560 22 0 7800 6000*1300 6082*2580*2083

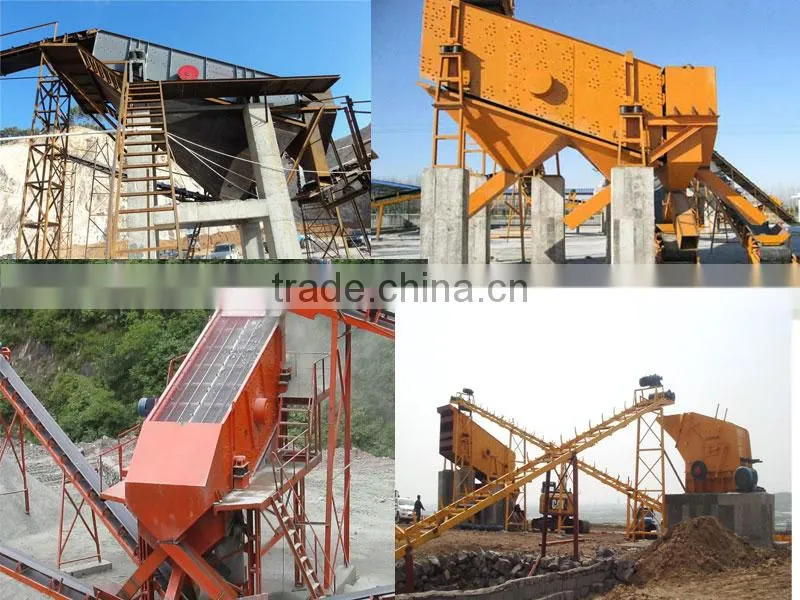

Vibrating Feeder Used In the Sand Making Line:

120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry



120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry

120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry






120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry

 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry
