100-300 t/h PE series Jaw Crusher for Mining Industry

FOB Price

USD $7,500 - $950,000 / Set

1 Set(Min.Order)

Supply Ability 55 Set / Sets per Month
Port shanghai tianjin qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Jaw Crusher	Application:	jaw crusher
Motor Type:	AC Motor	Power(W):	5.5-160 kw	Capacity(t/h):	100-300 t/h
Place of Origin:	Henan, China	Brand Name:	GMG	Model Number:	Limestone Crusher
Dimension(LWH):	as per specification	Weight:	0.8-100.9 ton	Certification:	CE ISO
Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

1.High Efficiency
2.Energy Saving
3.Easy Operation
4 CE ISO Certificate
5. 100% New Machine

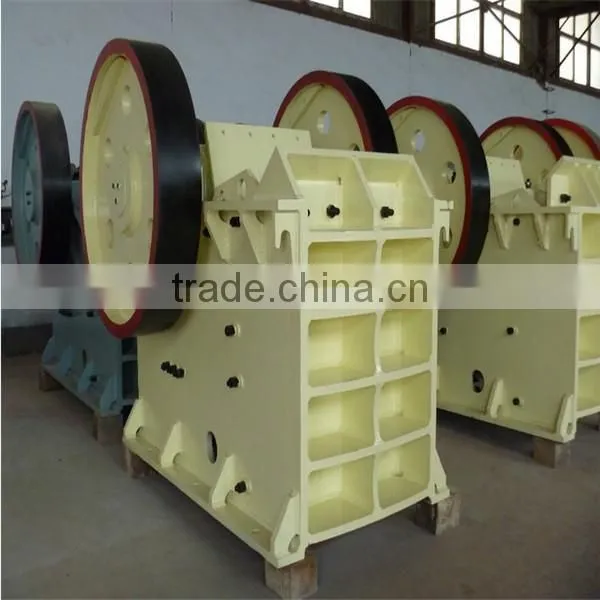

100-300 t/h PE series Jaw Crusher

Introduction of PE series Jaw Crusher

Jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble,etc. compression strength does not exceed 320Pa.

This machine is suitable for mines,building materials,highway,railway,water conservancy and chemical industry,etc.

Working Principle of PE series Jaw Crusher

The motor drives the belts and the belt wheels, and makes the movable jaw move up and down through the eccentric shaft, when the movable jaw descends, the angle between the fixed jaw and movable jaw becomes smaller, and the materials can be crushed; when the movable jaws, the angle between the fixed jaw and the movable jaw becomes bigger, and the movable jaw plates leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing chamber.

Main Specifications of PE series Jaw Crusher

Model No.	Feeding port size(mm)	Biggest into partical(mm)	Discharging port adjustment range(mm)	Capacity (t/h)	Eccentric shaft speed (r/min)	Power (KW)	Weight(T)	Shape dimension (mm)
PE-150*250	150*250	125	10-40	1-3	250	5.5	0.8	720660850
PE-200*300	200*300	180	15-50	2-6	260	7.5	1.2	910750990
PE-200*350	200*350	180	18-70	3-10	260	11	1.5	1000870990
PE-250*400	250*400	210	20-60	5-20	300	15	2.8	130010901270
PE-400*600	400*600	340	40-100	16-60	275	30	7	173017301630
PE-500*750	500*750	425	50-100	40-110	275	55	12	198020801870
PE-600*750	600*750	500	150-200	80-240	275	55	15.8	207020001920
PE-600*900	600*900	500	65-160	50-180	250	55	17	219022062300
PE-750*1060	750*1060	630	80-140	110-320	250	90-110	29	266024302800
PE-800*1060	800*1060	640	160-220	130-330	250	110	29.8	271024302800
PE-830*1060	830*1060	650	160-220	150-336	250	110	30.7	274024302800
PE-870*1060	870*1060	660	200-260	190-336	250	110	31.5	281024302800
PE-900*1060	900*1060	685	230-290	230-390	250	110	33	287024202940
PE-900*1200	900*1200	750	95-165	220-450	200	110	52	338028703330
PE-1000*1200	1000*1200	850	195-265	315-500	200	110	55	348028763330
PE-1200*1500	1200*1500	1020	150-300	400-800	180	160	100.9	420033003500
PEX-150*750	150*750	120	18-48	8-25	320	15	3.8	120015301060
PEX-250*750	250*750	210	25-60	13-35	330	30	5.5	138017501540
PEX-250*1000	250*1000	210	25-60	16-52	330	30	7	156019501390
PEX-250*1200	250*1200	210	25-60	20-61	330	37	9.7	214019501500
PEX-300*1300	300*1300	250	20-90	16-105	300	55	15.6	272019501600
