Specifications
1.Capacity:35-220 t/h2.Max. feeding size:300mm
3. 100% new machine
Impact Crusher is used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and debris. GMG is a reliable supplier of Impact Crusher with new design.

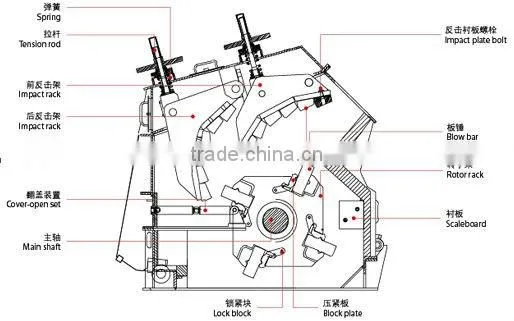

Working Principle of Impact Crusher:
When the Impact Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the Impact Crusher.
Characteristics of Impact Crusher:
1.Excellent cubic final products
2.Special structure
3.Non-key connection
4.High chrome hammer
5.Durability in long time simplicity in operation
6.Easy adjustment, high reduction ration
7.Good performance and high reliability
Specification and Technical Parameter of Impact Crusher:
| PF Series---Two cavities | ||||||||
| Model | Specification (mm) | Feed Opening (mm) | Max. Feeding Size (mm) | Capacity (t/h) | Model of Motor | Power (kw) | Weight (t) | Overall Dimensions (L×W×H) (mm) |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 35-50 | Y250M-6 | 37 | 9.5 | 1800×1600×1800 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-80 | Y315S-6 | 75 | 14 | 2340×2007×2500 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-120 | Y315L1-6 | 110 | 17 | 2582×2053×2809 |
| PF-1212 | Φ1250×1200 | 400×1250 | 350 | 70-140 | Y315L2-6 | 132 | 17.5 | 2582×2203×2809 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-160 | Y315L2-6 | 132 | 22 | 2582×2403×2809 |
| PF-1315 | Φ1300×1500 | 860×1520 | 500 | 90-220 | Y2-335M2-6 | 200 | 26 | 2930×2761×3053 |
| PF(V) Series---Three cavities | ||||||||
| Model | Specification (mm) | Feed Opening (mm) | Max. Feeding Size (mm) | Capacity (t/h) | Model of Motor | Power (kw) | Weight (t) | Overall Dimensions (L×W×H) (mm) |
| PFV-1007 | Φ1000×700 | 400×730 | 300 | 25-45 | Y250M-6 | 55 | 10.45 | 1800×1600×1800 |
| PFV-1010 | Φ1000×1050 | 400×1080 | 350 | 35-60 | Y315S-6 | 75 | 14.8 | 2340×2007×2500 |
| PFV-1210 | Φ1250×1050 | 400×1080 | 350 | 45-100 | Y315L1-6 | 110 | 18 | 2582×2053×2809 |
| PFV-1214 | Φ1250×1400 | 400×1430 | 350 | 60-140 | Y315L2-6 | 132 | 23.5 | 2582×2403×2809 |
| PFV-1315 | Φ1300×1500 | 860×1520 | 500 | 70-180 | Y2-335M2-6 | 200 | 28 | 2930×2761×3053 |
After-sale services
Provide considerate services to minimize clients’ worries.
1) Assist clients to prepare for the first construction scheme;
2) Install and debug the equipment;
3) Take initiative to eliminate the troubles rapidly at site;
Services during the sale.
1) Pre-check and accept products ahead of delivery;
2) help clients to draft solving plans.
