New Sand Motor Vibrating Screening Feeder/Equipment/Machine

New Sand Motor Vibrating Screening Feeder/Equipment/Machine thumbnail-1
New Sand Motor Vibrating Screening Feeder/Equipment/Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
feed bulk and particle materials in sand production line,crushing etc
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Zhengzhou Huanqiu Heavy Industries Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application feed bulk and particle materials in sand production line,crushing etc
Power Type Electric
Capacity(t/h) 8.-600t/h
Place of Origin Henan, China
Brand Name GMG Vibrating Screening Feeder
Model Number GZD or ZSW series
Power(W) various
Dimension(L*W*H) various
Weight 1.29-7.5t
Certification ce, iso90001:2008
Warranty 0ne year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

vibrating screening feeder
1.Stable vibration
2.reliable performance, durable
3.to feed bulk or particle materials

Specification

Vibrating Screening Feeder

1.stable vibration and long service life
2.reliable running, convenient installation
3.light weight

4.best after-sale service

petitive vibrating feeder price

Applacation of Vibrating Screening Feeder:

This vibrating feeder is mainly used to feed bulk or particle materials evenly, regularly and continuously in various fields. When used in sand production line, it can continuously feed materials for crushing machines, and also carry out coarse screening for materials.


It is widely used in crushing work in industries like metallurgy field, coal or mining industry, mineral refining field, chemical industry, grinding sector, etc.

New Sand Motor Vibrating Screening Feeder/Equipment/MachineNew Sand Motor Vibrating Screening Feeder/Equipment/MachineNew Sand Motor Vibrating Screening Feeder/Equipment/Machine

Composition of Vibrating Screening Feeder:

Vibrating Screening Feeder is mainly composed of a vibration machine frame, vibration motor, spring, bearing seat and a wear resistant lining board.

Working Principle of Vibrating Screening Feeder:


The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line.

When materials are fed into the feeder, they may be thrown up and move like Para curve, then fall down. The materials will move forward on the slope surface of the feeder.

Technical Parameter of Vibrating Screening Feeder:



Model Max.             feeding             (mm) Pocessing             capacity(t/h) Motor             power(kw) Obliquity             of material             trough Total             weight             (kg) Trough             size             (mm) Dimensions             (L*W*H)(mm)
GZD-850*3000 400 120 3.7*2 5 3607 850*3000 3110*1800*1600
GZD-1000*3600 500 150 5.5*2 5 3895 1000*3600 3850*1950*1630
GZD-1100*4200 580 240 5.5*2 5 4170 1100*4200 4400*2050*1660
GZD-1100*4900 580 280 7.5*2 5 4520 4900*1100 5200*2050*1700
GZD-1300*4900 650 450 11*2 5 5200 4900*1300 5200*2350*1750
ZSW-380*95 500 96-160 11 0 4082 3800*960 3920*1640*1320
ZSW-490*110 630 120-280 15 0 5352 4900*1100 4980*1830*1320
ZSW-600*130 750 400-560 22 0 7800 6000*1300 6082*2580*2083

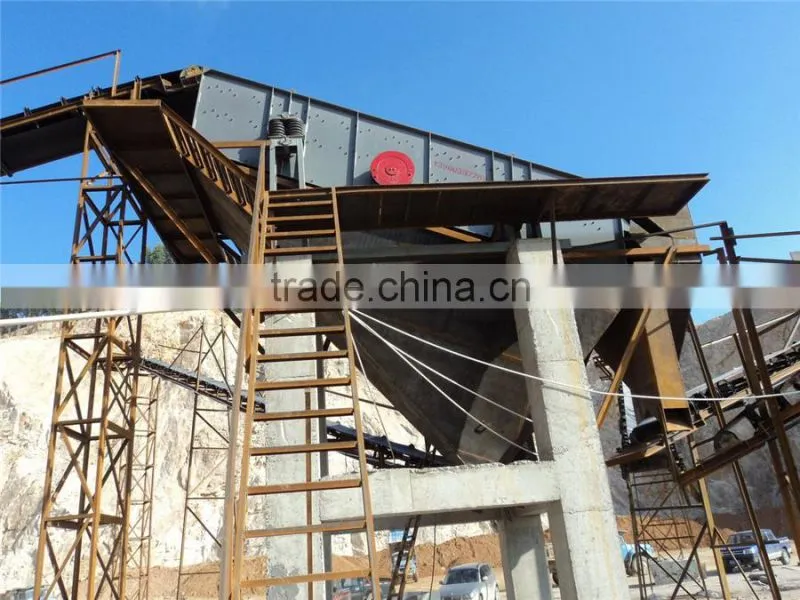

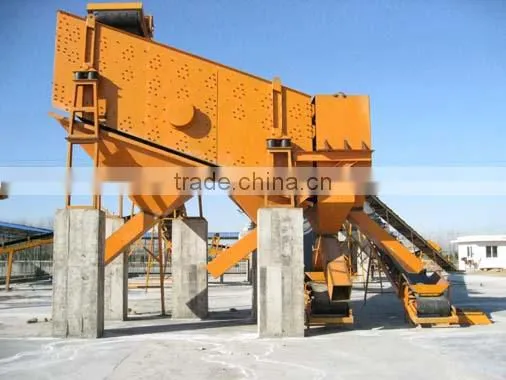

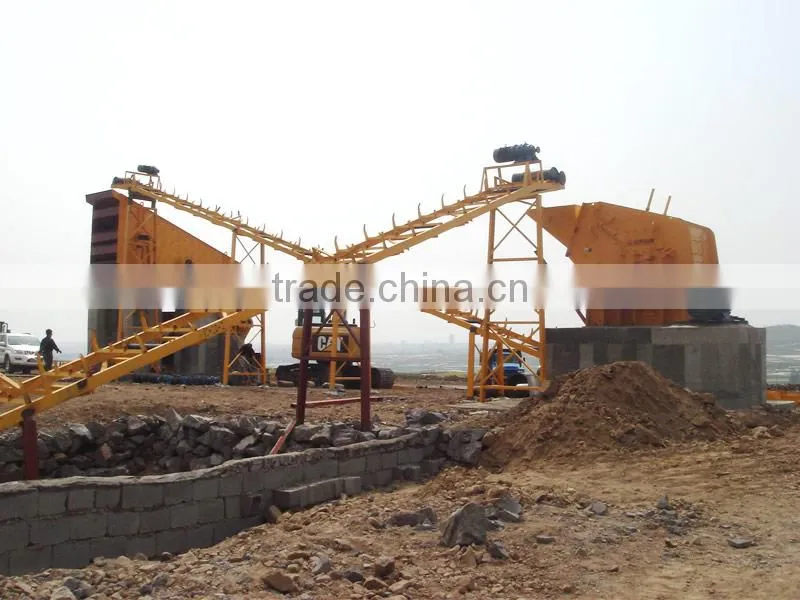

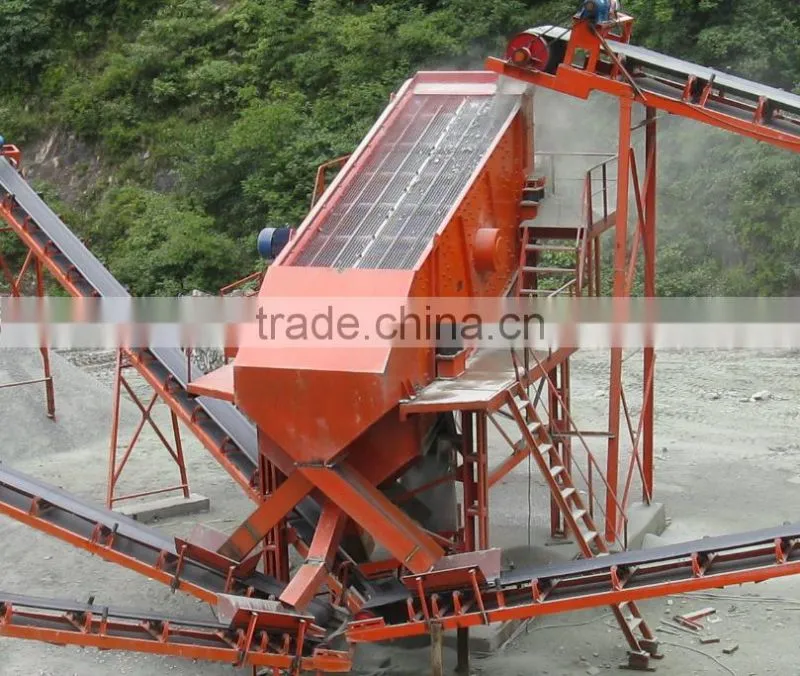

working site of Vibrating Screening Feeder:



New Sand Motor Vibrating Screening Feeder/Equipment/MachineNew Sand Motor Vibrating Screening Feeder/Equipment/Machine
