Specifications
Screw Sand Washing Machine1, Reasonable structure
2, Water-saving design
3, Low sand dissipation
4, Novel sealing device
Specifications
Sand Single or Double Screw Washing Machine
1.large capacity and high effiency
2.directly manufactuer
3.low water consumption
Application of Vibrating Screen with Double or Single Screw Sand Washing Machine in Sand Washing Plant:

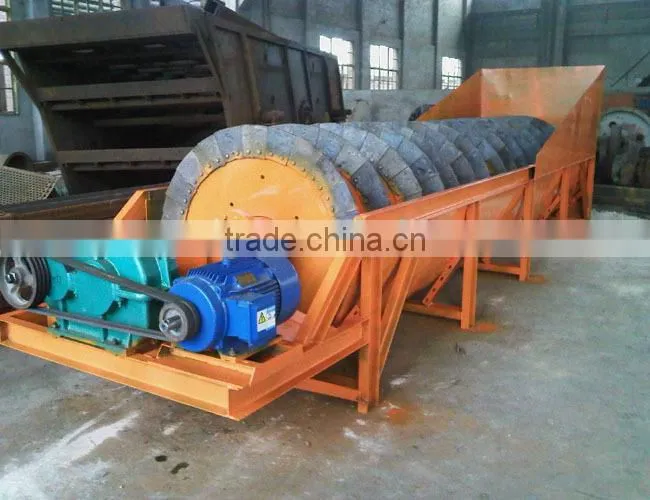

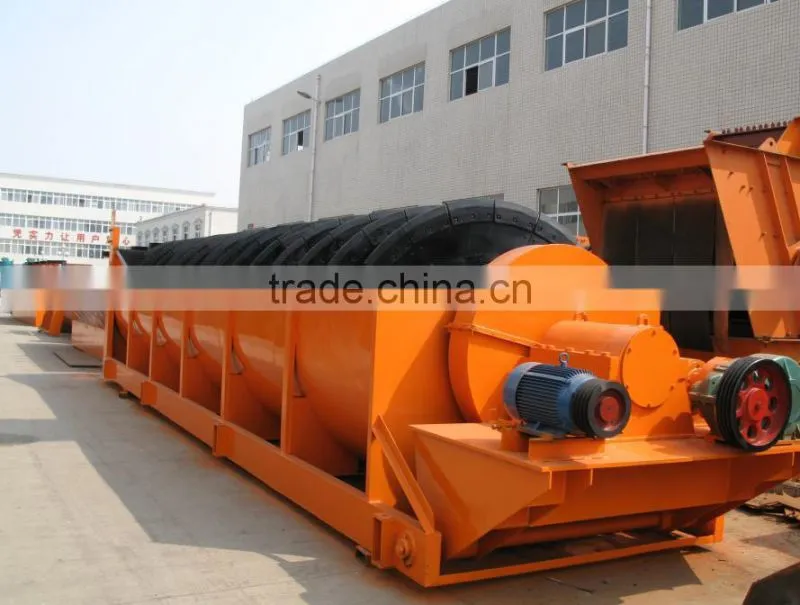

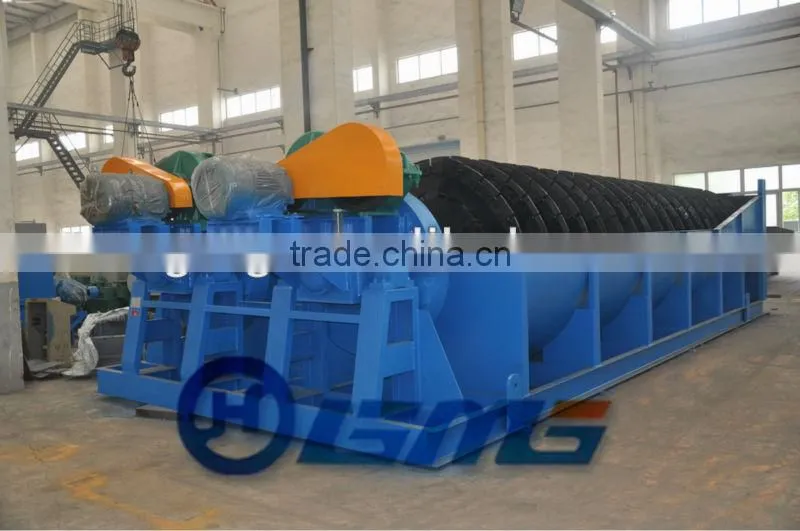

Spiral/Screw Sand Washing Machine is used to removing the dust in ore and grading orefor the metallurgic, construction material and hydropower industries. It is suitable for the washing work of the fine grain and coarse granularity material.
Wash stone machine suitable for fine grain and coarse granularity material the washing work,especially suitable for washing the ore for building and ore for road. Screw ore washer has the characteristics of rational construction, easy maintenance, big capacity, low power consumption and high washing cleanliness. The novel leakproof structure,fully enclosed oil bath type transmission device and adjustable overflow weir board guarantee the high performance of screw ore washer.

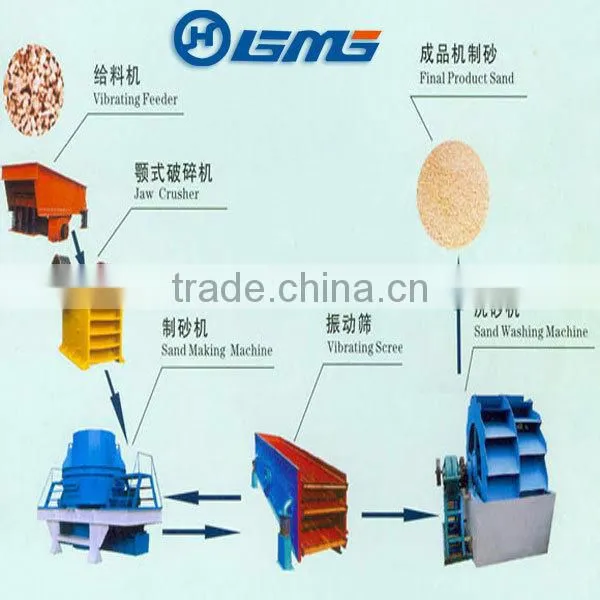

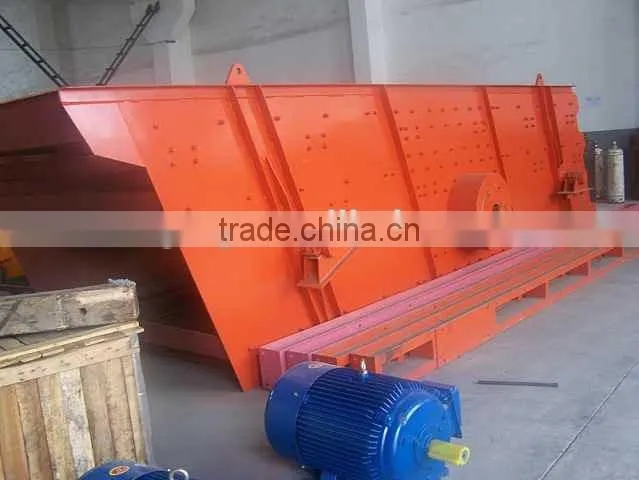

Vibrating Screen used for Sand Washing Machine in the Sand Washing Plant:
Features of Vibrating Screen with Double or Single Screw Sand Washing Machine in Sand Washing Plant:
This Sand Washing Machine/ Sand Washer has features like long spiral structure, good sealing system, simple structure, strong processing capability, convenient maintenance, good washing efficiency, etc. It is widely used in mining industry.

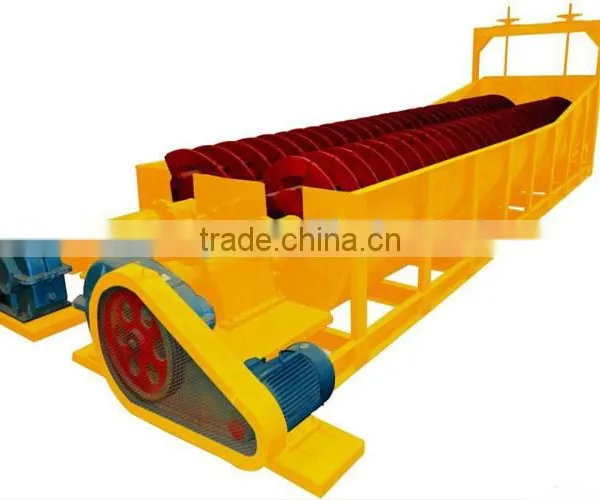

Working Principle of Vibrating Screen with Double or Single Screw Sand Washing Machine in Sand Washing Plant:

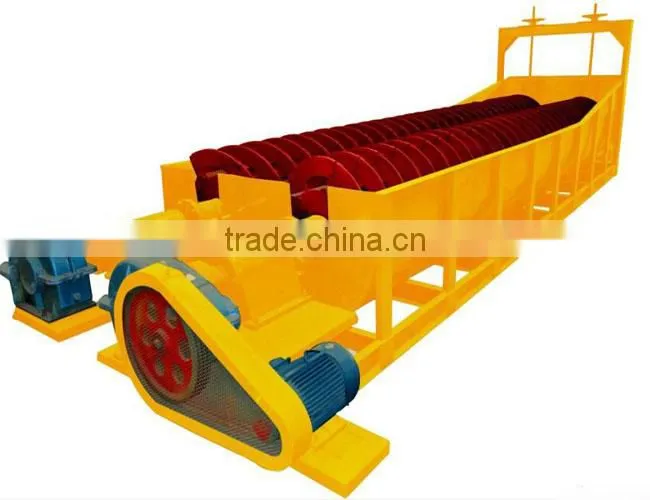

The material pours in the from the end of input,the spiral impeller rotates by the driven of the motor and the reducer,and then push the material inside the hopper close to the end of output.Thus,under the action of being advanced,mixed and the flushing water,the mud wrapped on the material and the impurity go separately.Finally,the separated fine sands are discharged from the discharging port under the advancing movement of the spiral.Thus,the continuous work of washing sand is finished again and again.Promptly carries off the impurity and the small proportion foreign matters,and discharge from the overflow port tank washer,completes the cleaning action.The clean sand and crushed stone is carried off by the leaf blade,and ids finally poured into the discharge chute from the revolving impeller,completes the cleaning action.
Specifications of Vibrating Screen with Double or Single Screw Sand Washing Machine in Sand Washing Plant:
| Model No. | Spiral Diameter (mm) |
Feeding size (mm) |
Water Comsuption T/h |
Capacity T |
Motor Power Kw |
Length x widthx height (mm) |
weight Kg |
| XL-508 | 508 | ≤10 | 14-88 | 20 | 7.5 | 8000×2343×1530 | 2670 |
| XL-610 | 610 | ≤10 | 14-165 | 50 | 7.5 | 8000×2490×1530 | 3800 |
| XL-762 | 762 | ≤10 | 18-124 | 75 | 11-15 | 9070×2650×1638 | 5225 |
| XL-914 | 914 | ≤10 | 18-162 | 100 | 11-15 | 9070×2650×1638 | 6370 |
| XL-1118 | 1118 | ≤10 | 27-333 | 175 | 30 | 9070×2830×1900 | 9800 |
| 2XL-762 | 762 | ≤10 | 40-250 | 140 | 2×11 | 11580×3965×2370 | 7440 |
| 2XL-914 | 914 | ≤10 | 105-620 | 200 | 215 | 9070×3300×1638 | 9531 |
| 2XL-1118 | 1118 | ≤10 | 125-1400 | 350 | 222 | 9070×3890×1900 | 16700 |
| XLZ-762 | 762 | ≤60 | 355-450 | 80-125 | 22 | 11580×5226×2370 | 9800 |
| XLZ-914 | 914 | ≤60 | 400-600 | 125-175 | 30 | 6980×1200×1340 | 11800 |
| XLZ-1118 | 1118 | ≤75 | 500-750 | 180-250 | 37 | 7400×1380×1950 | 13900 |
| 2XLZ-762 | 762 | ≤60 | 600-800 | 100-150 | 2×22 | 6980×2091×1340 | 16800 |
| 2XLZ-914 | 914 | ≤60 | 700-900 | 150-200 | 2×30 | 7120×2146×1590 | 20800 |
| 2XLZ-1118 | 1118 | ≤75 | 900-1100 | 200-300 | 2×37 | 8500×2861×2150 | 23870 |
