100 TPH PE Series Granite Jaw Crusher
- shanghai tianjin qingdao
- T/T Credit Card
You May Like
-
100 TPH PE Series Granite Stone Jaw Crusher
-
200 TPH PE Series Granite Jaw Crusher
-
New Technology Mobile Track Wheel And Crawler Wood Crusher Wood Grinder
-
30TPH Large Capacity Mobile Wood Chipper Track Crawler Type Wood Crusher System
-
Vibrating Screen With Double or Single Screw Sand Washing Machine in Sand Washing Plant
-
New Sand Motor Vibrating Screening Feeder/Equipment/Machine
Product Details
| Condition | New | Type | Jaw Crusher | |
| Application | jaw crusher | Motor Type | AC Motor | |
| Power(W) | 5.5-160 kw | Capacity(t/h) | 100 tph | |
| Place of Origin | Henan, China | Brand Name | GMG | |
| Model Number | Limestone Crusher | Dimension(L*W*H) | as per specification | |
| Weight | 0.8-100.9 ton | Certification | CE ISO | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.High Efficiency2.Energy Saving
3.Easy Operation
4 CE ISO Certificate
5. 100% New Machine

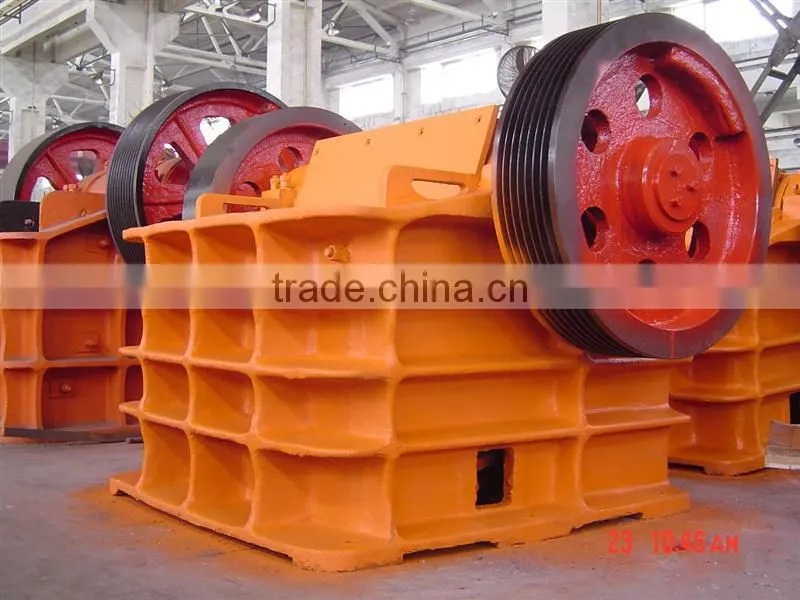

100 TPH PE series Granite Jaw Crusher
Introduction of PE series Jaw Crusher
Jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble,etc. compression strength does not exceed 320Pa.
This machine is suitable for mines,building materials,highway,railway,water conservancy and chemical industry,etc.

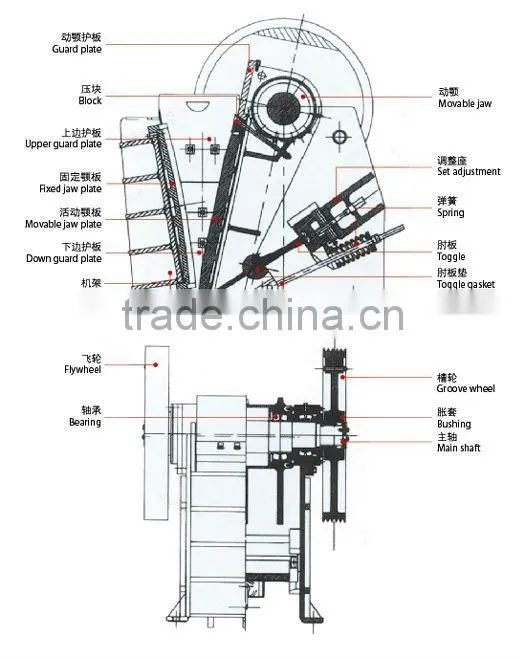

Working Principle of PE series Jaw Crusher
The motor drives the belts and the belt wheels, and makes the movable jaw move up and down through the eccentric shaft, when the movable jaw descends, the angle between the fixed jaw and movable jaw becomes smaller, and the materials can be crushed; when the movable jaws, the angle between the fixed jaw and the movable jaw becomes bigger, and the movable jaw plates leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing chamber.
Main Specifications of PE series Jaw Crusher
Model No. | Feeding port size(mm) | Biggest into partical(mm) | Discharging port adjustment range(mm) | Capacity (t/h) | Eccentric shaft speed (r/min) | Power (KW) | Weight(T) | Shape dimension (mm) |
PE-150*250 | 150*250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720*660*850 |
PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910*750*990 |
PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000*870*990 |
PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300*1090*1270 |
PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730*1730*1630 |
PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
PE-600*750 | 600*750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070*2000*1920 |
PE-600*900 | 600*900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190*2206*2300 |
PE-750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660*2430*2800 |
PE-800*1060 | 800*1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710*2430*2800 |
PE-830*1060 | 830*1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740*2430*2800 |
PE-870*1060 | 870*1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810*2430*2800 |
PE-900*1060 | 900*1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870*2420*2940 |
PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380*2870*3330 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*2876*3330 |
PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200*3300*3500 |
PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560*1950*1390 |
PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140*1950*1500 |
PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720*1950*1600 |
