Specifications
1.world famous electric component2.three or four hopper
3.sicama mixerJS1500
4.belt conveyor liftting
Advantage
Excellent performance
Suitablefor various sites like roads, bridges, dams, airports and seaports. Twinhorizontal shaft mixer of powerful mixing capacity, excellent mixingquality, fast and high production rate.
High reliability
Mixer liner and paddles with special shafts and sealing .International branded electrical components.
Accurate weighing
Imported weighing and control components.
Excellent maintenance
Platforms and ladders for observe maintenance and operation.
Industrial design
1. Beautiful industrial design of ergonomics & aesthetics closely combined
2. An artwork, comfortable to operate and easy to maintain
3. Rigorous logical thinking, profound design concept, comprehensive agronomical process and accurate detail design
Convenient site-transfer and installation
1. Modular structure: independent batcher, belt conveyor, mixing tower, screw conveyor and cement silo;
2. Easy and speedy to disassemble and install.
Outstanding environment production
1. All powder materials are handled in wind tight situation;
2. Wind tight mixing tower and aggregate belt conveyor.
Main technical parameter

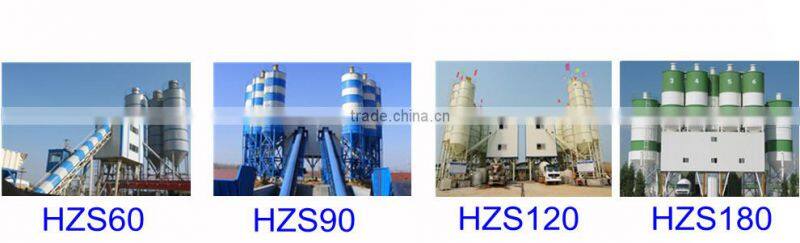

| Model | HLS60 | HLS90 | HLS120 | HLS180 |
| Rated productivity ( m3/h) | 60 | 90 | 120 | 180 |
| Matching mixer | JS1000 | JS1500 | JS2000 | JS3000 |
| Storage bin capacity (m3) | 3×15/4×15 | 3×15/4×15 | 4×20 | 4×30 |
| Discharging height (m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Total power (kw) | 78 | 112 | 150 | 198 |
| Aggregate measuring accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement measuring accuracy( %) | ±1 | ±1 | ±1 | ±1 |
| Water measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Fly ash measuring accuracy( %) | ±1 | ±1 | ±1 | ±1 |
| Additive measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total weight( Kg) | 40000 | 43000 | 70000 | 85000 |

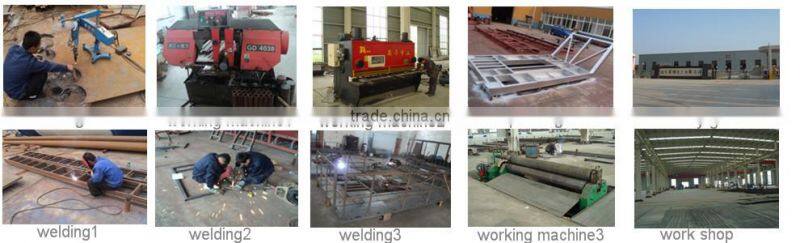

Work shop
After-sale service
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
Produce case
Certificate
Foreign Exhibition
