Specifications
1) Export to Russia2) With winter warm heating system and insulation system
General instruction:
It is our special design for Russia market to suit the cold environment in winter. At the base of standard HZS concrete batching plant, it add warm heating system in aggregate batch machine, concrete mixer and so on. Also the insulatin plate is thicked to 100mm. The equipment can equip with boiler, fuel can be gas, coal and so on.
Main features:
1) Adopt modular design, convenient to transport, install and remove;
2) Concrete mixer can choose twin-shaft compulsory concrete mixer or vertical planetary concrete mixer, with brand of Sicoma, Bhs, Teka or Chinese good brand;
3) Aggregate batching system adopts PLD series concrete batcher which offers efficient
and accurate measurement; The number of storage hopper is designed according to the aggregate used.
4) Automatic control system with displaying the whole working process.
Main parameters:
Model |
HZS25 |
HZS40 |
HZS50 |
HZS75 |
HZS100 |
|
Productivity(m3/h) |
25 |
40 |
50 |
75 |
100 |
|
Mixer |
model |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
|
Power of motor (kw) |
18.5 |
30 |
2*18.5 |
2*30 |
2*37 |
|
Aggregate (mm) |
60/80 |
60/80 |
60/80 |
60/80 |
60/80 |
Batch bin |
Capacity (m3) |
4 |
4 |
8 |
8 |
20 |
|
Quantity (pcs) |
3 |
3 |
3 |
3 |
3 |
Materials feeding |
Skip hopper |
Skip hopper |
Skip hopper |
Skip hopper |
Belt conveyor/ Skip hopper |
|
Weighing accuracy |
Aggregate (kg) |
1500±2% |
1500±2% |
1500±2% |
1500±2% |
1500±2% |
|
Cement (kg) |
300±1% |
500±1% |
500±1% |
800±1% |
1000±1% |
|
Fly ash (kg) |
|
|
150±1% |
200±1% |
300±1% |
|
Water (kg) |
150±1% |
200±1% |
200±1% |
300±1% |
500±1% |
|
Additive (kg) |
20±1% |
20±1% |
20±1% |
30±1% |
40±1% |
Total power(kw) |
40 |
76 |
97 |
121 |
220 |
|
Discharge height(m) |
3.8 |
3.8 |
3.8 |
3.8 |
3.8 |
|

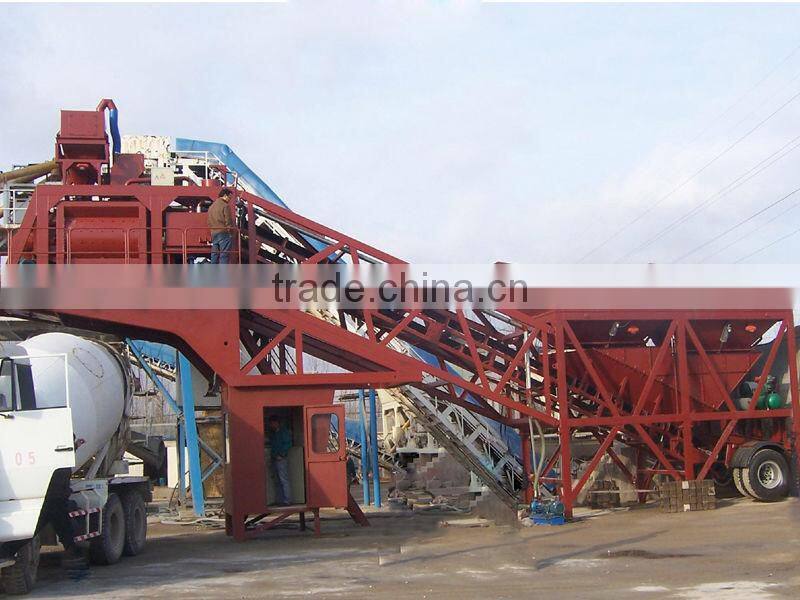

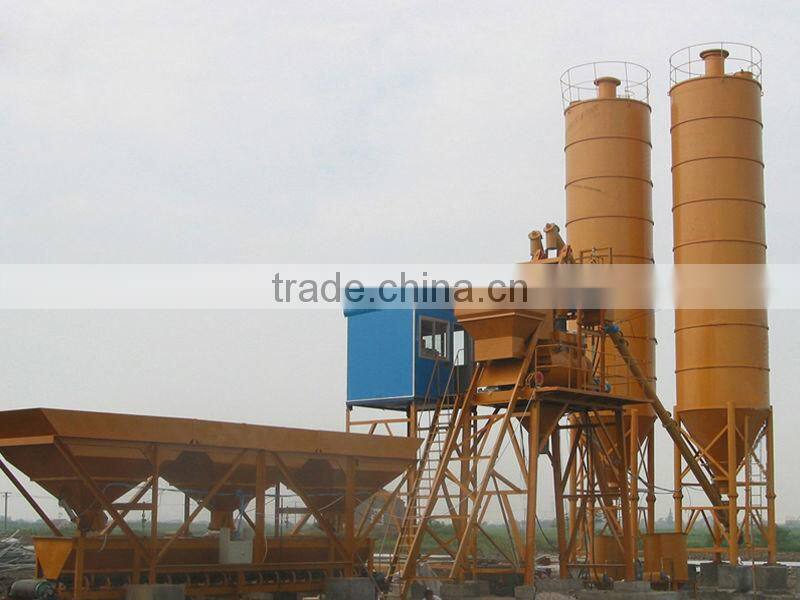

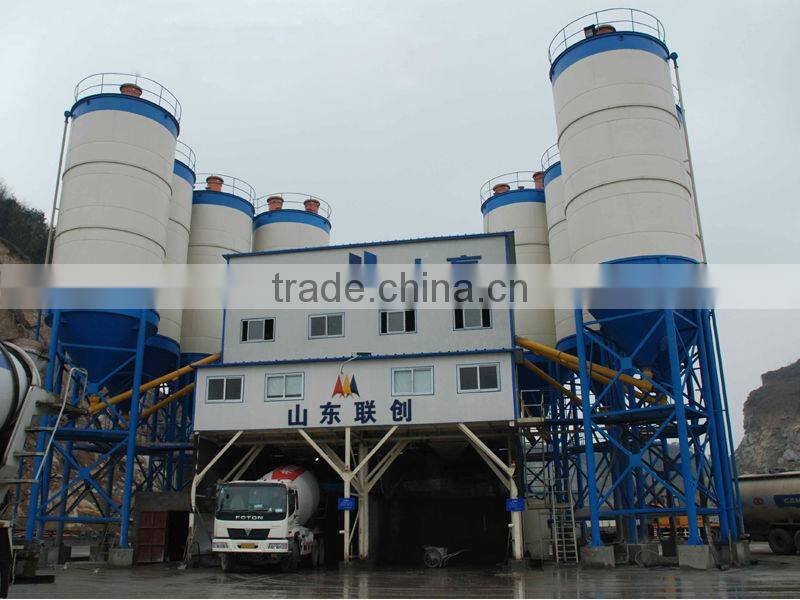

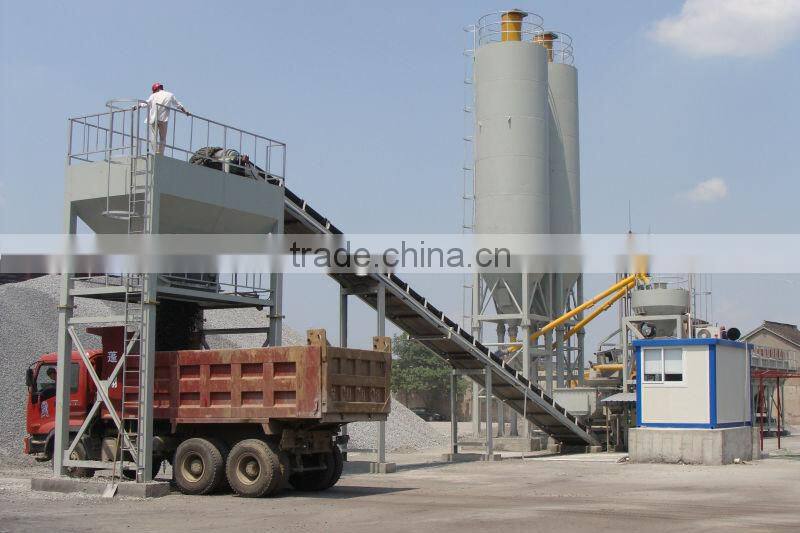

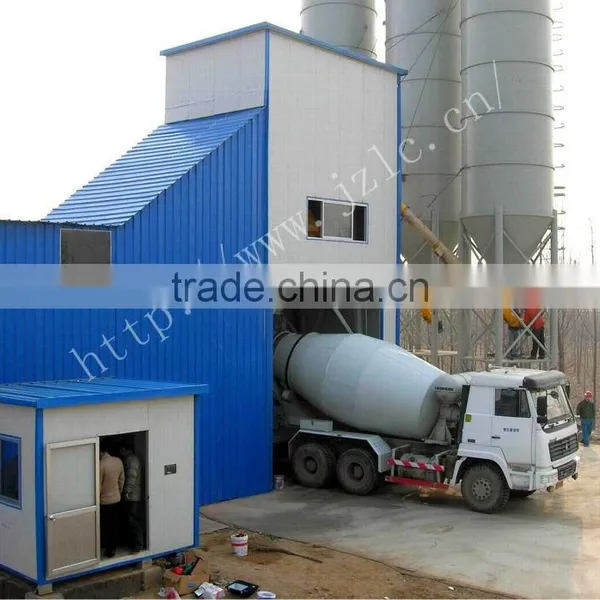

Photoes for reference
Other type products
Standard HZS economical concrete batching plant
High productivity HLS concrete batching plant
Mobile concrete batching plant
Stabilized soil mixing plant
Raw materials
Customer visit
After-Sales Service:
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
If you are interested in our company,please contact me !
