Specifications
1.Advanced technology2.Easy to operate
3.High efficiency
4.Simple structure
5.Low energy consumption

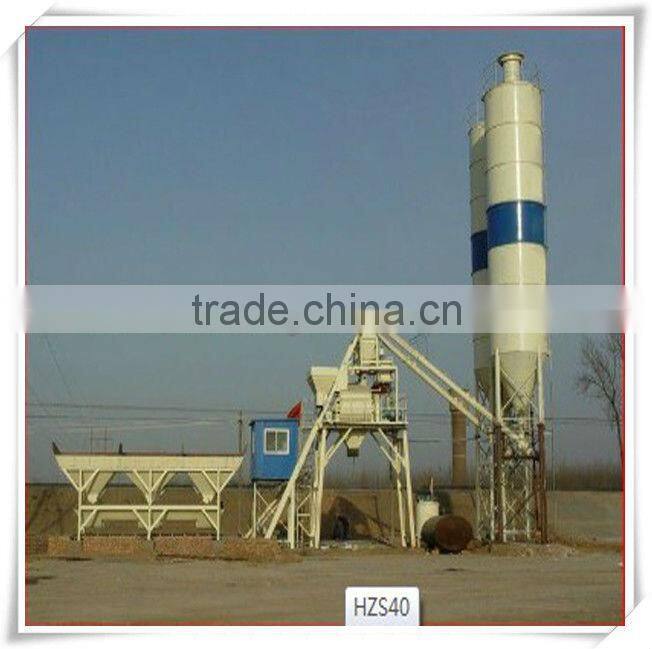

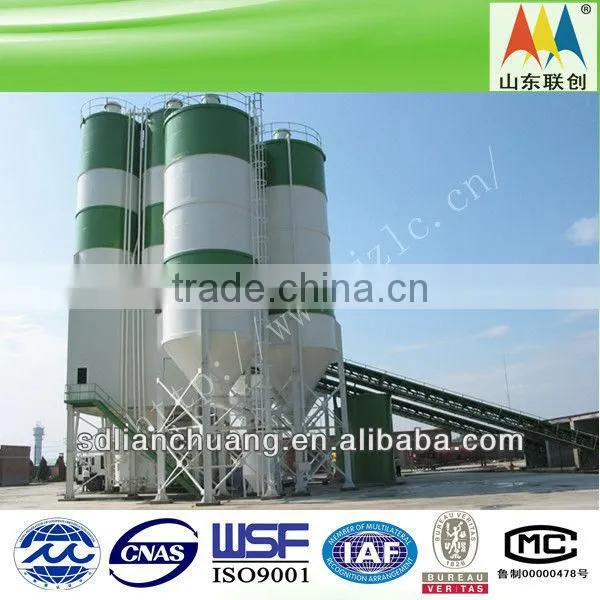

HZS40 Cement Concrete Mixing Plant
HZS40Concrete mixing plant is composed of material supply, batching system, mixing, electrical control and steel structure. Concrete mixers is ideal concrete equipment for building project, building ground and precuts product factory.
Product features :
1.compact structure to operate and easy transportation
2.It adopts Lianchuang twin-shaft compulsory mixer,folding three-hopper burden machine.
3.Its characteristics are unique car chassis design, multi-language Windows operating interface,electricity gas water Express plug,a high degree of automation,disassembly and convenient mobility.
4.It´s fit for small and medium-sized projects.
We can strengthen the integrated design of the series mixing station according to user´s requirements
Technical parameter is just for reference
Model |
HZS25 |
HZS40 |
HZS50 |
HZS75 |
Max theory productivity(m3/h) |
25 |
35 |
50 |
75 |
Mixer |
JS500 |
JS750 |
JS1000 |
JS1500 |
Storage bucket capacity(m3) |
3×2.4 |
3×4 |
3×8 |
3×12 |
Maximum size of aggregate(mm) |
60/80 |
60/80 |
60/80 |
60/80 |
Discharge height(m) |
1.7-3.8 |
1.7-3.8 |
1.7-3.8 |
1.7-3.8 |
Charge height(m) |
2.9 |
2.9 |
2.9 |
2.9 |
Aggregate measuring accuracy(%) |
±2 |
±2 |
±2 |
±2 |
Cement measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
Fly ash measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
water measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
additive measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
Power(kw) |
35 |
50 |
60 |
85 |
Total weight(kg) |
14000 |
18000 |
25000 |
35000 |
The following is about the company and the product image
Company plant

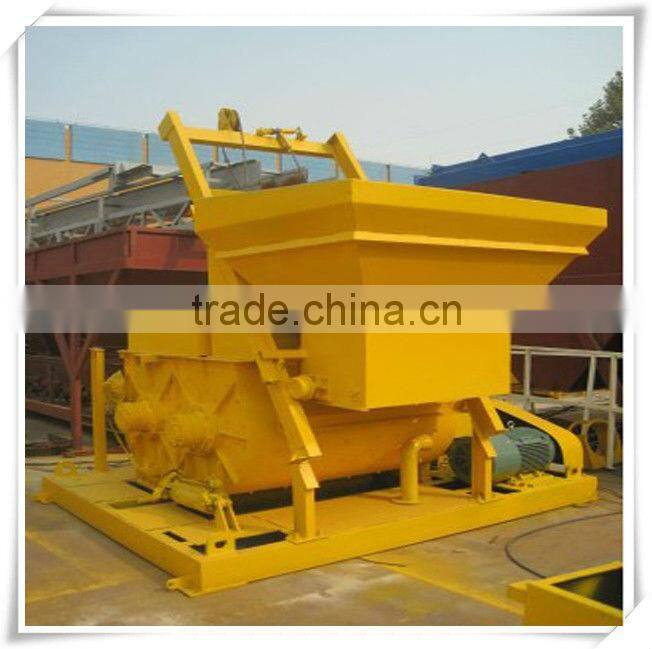

The machine adopts JS750 concrete mixer

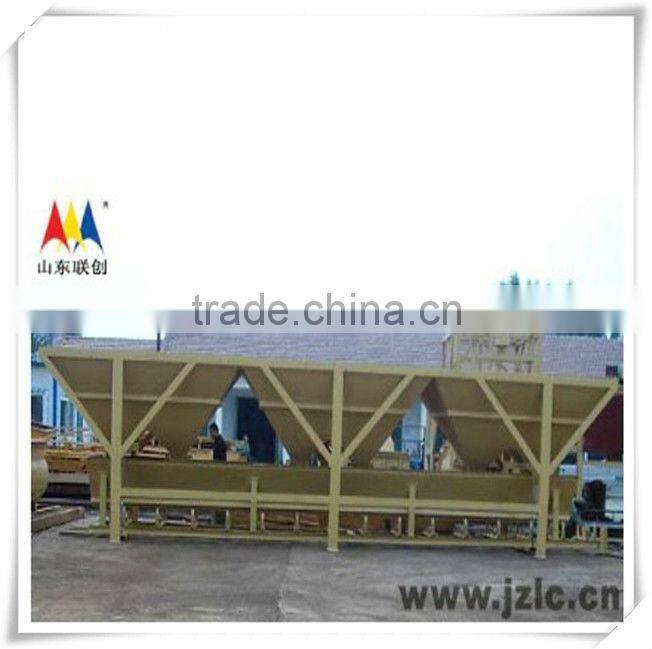

The batching machine adopts PLD800, it is measuring nicety and high produce efficent.

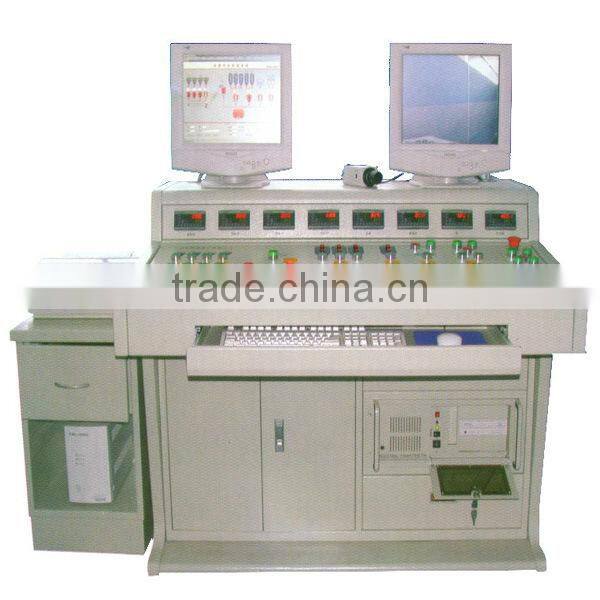

The water supply system is composed by water tank, water pump and water weigh system. The whole batching and mixing course is automatism by electrical control system (it also can be hand control). The structure is simple and easy to install and debug. It is adopts advanced control system and imports component with high dependability.

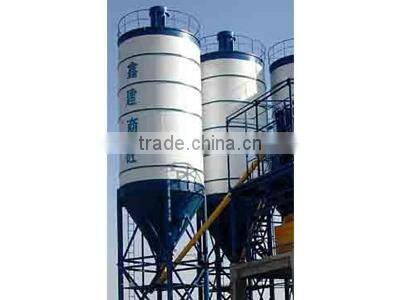

The cement is store in cement silo and feeding by screw conveyor.
We have been awarded ISO9100 Quality Systerm Certificate, ISO14001 Environmental Management Systerm Certificate.
Our Product
Relying on the operation philosophy of "technology guided, quality oriented, and considerate service", our company has actively developed markets both at home and abroad, enjoying a high reputation in Algeria, Kazakhstan, and the UAE, as well as over 20 provinces, cities, and municipalities in our country. In order to meet clients' demands, our company will invest more in technology, make full use of leading edge of technology, cooperate with world famous enterprise in the industry, improve product quality and reduce production cost by global purchasing and production in scale. Also we will further perfect the sales & service network, and provide concrete machinery with good quality and low price for worldwide construction enterprises.
After-Sales Service:
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
If you are interested in our company,please contact me !
