Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > High Quality Concrete Mixer Truck for Hot Sale

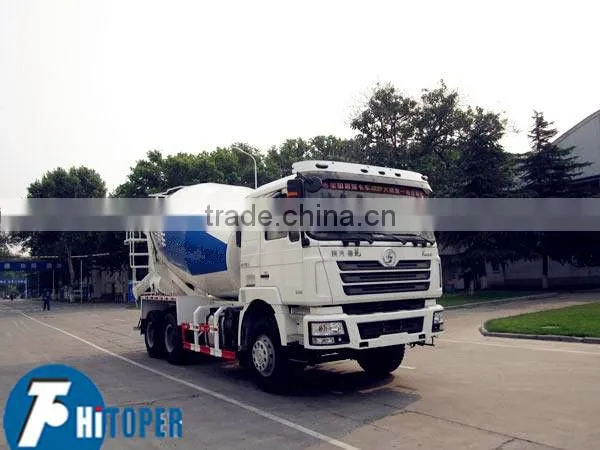

High Quality Concrete Mixer Truck for Hot Sale

Name: High Quality Concrete Mixer Truck for Hot Sale
Brand: Toper
SKU: 139848795

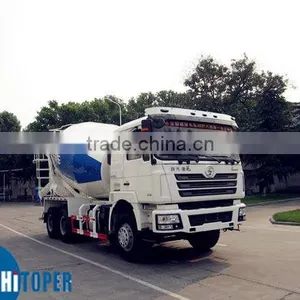

High Quality Concrete Mixer Truck for Hot Sale thumbnail-1

High Quality Concrete Mixer Truck for Hot Sale photo-1

US$ 25,000 - 80,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Brand Name:

Toper

Contact Supplier Request Quote Chat Now

Zhengzhou Toper Industrial Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Brand Name Toper

Model Number 10CBM

Weight optional

Dimension(L*W*H) standard

Power(W) Optional

Certification ISO 9001;2008&CE

Warranty 18 month

After-sales Service Provided Overseas third-party support available

Product Description

Features

Capacity ranges from 6m3 to 16m3
Self-loading, self-mixing, self-supplying water, self-discharging

Constraction machinery/concrete mixer truck/concrete transportation truck

This type concrete mixer truck most widely used is the Cement Truck – Materials are loaded at a concrete mixing plant, Then the concrete is mixed in transit and delivered to job sites.

The concrete can be unloaded via a chute for ground level applications or the concrete is poured into a concrete pump system for high height applications.The capacity of concrete mixer truck ranges from 6 m³ to 16m³, meeting customers' various needs.

Main structure of the mixer machine

Classis; update, drive shaft hydraulic, reducer system; tanker; discharging; cleaning system; frame,; manual system; roller system; filling system; electric system.

Technical parameter of the mixer machine

Item			7m³ concrete truck mixer	8m³ concrete truck mixer		9m³ concrete truck mixer	10m³ concrete truck mixer	12m³ concrete truck mixer
Drum	Geometric volume(m³)		12.1	13.8		16.5	17.5	20.5
	Effective agitate volume(m³)		7	8		9	10	12
	Effective mixing volume(m³)		5	6		7.5	8.5	10.5
	Inclination angle		15	15		12	11	11
	Rotational velocity(r/min)		0~14
	Rotation direction(from the rear of truck)		Charge in clockwise, discharge in anticlockwise
	Vane		Double-screw vane
	Discharge capacity		When the slump is 5cm≥2m³/min
	Remnant		When the slump is 5cm≤1%
Charge and discharge device	Hopper (L×W)(mm)		950×1000
	The main hopper length (mm)		1600
	The annex hopper length(mm)		780
Water supply system			Water pump (WP24-180B12)or(WP24-180B12)
Hydraulic system		Oil pump	A4VTG71		A4VTG71	A4VTG71	A4VTG90	A4VTG71/32R
		Motor	Deutschland Rexthroth		PLM7	PLM7	PLM9	PLM9
			AA2FM63		(3in1)	(3in1)	(3in1)	(3in1)
chassis		Type of engine/Power	WD615.87/213		WD615.69/247 WD615.87/213	WD615.69/247	WD615.69/247	WD615.47/273

Our Services

Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
