Specifications
concrete truck mixer1.it adopts key advanced technology of the heavy truck
fortable, safet and convenient

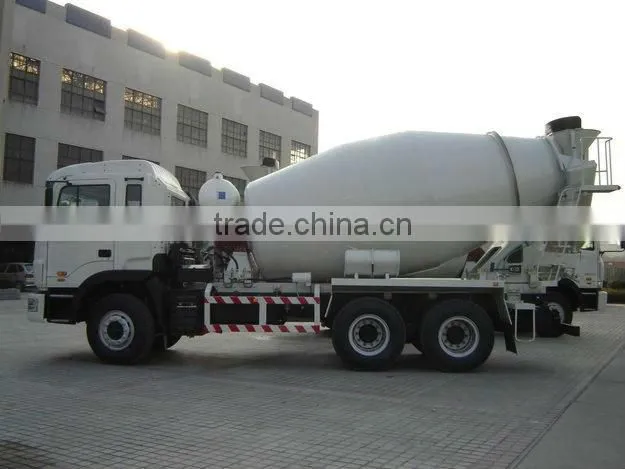

10m3 fully automatic concrete truck mixer for Sale
10M3 concrete truck mixer:
| Chassis | DFL5251GJBA1 Dongfeng Automobile Group |
| Engine | dCi340-30 Dongfeng |
| Brake | Steam Brake |
| Speed Gearbox | 8JS130T-B |
| Cab Corp Cab | Dongfeng |
| Rear Axle | 13T |
| Spring Leaf No | 9/13 |

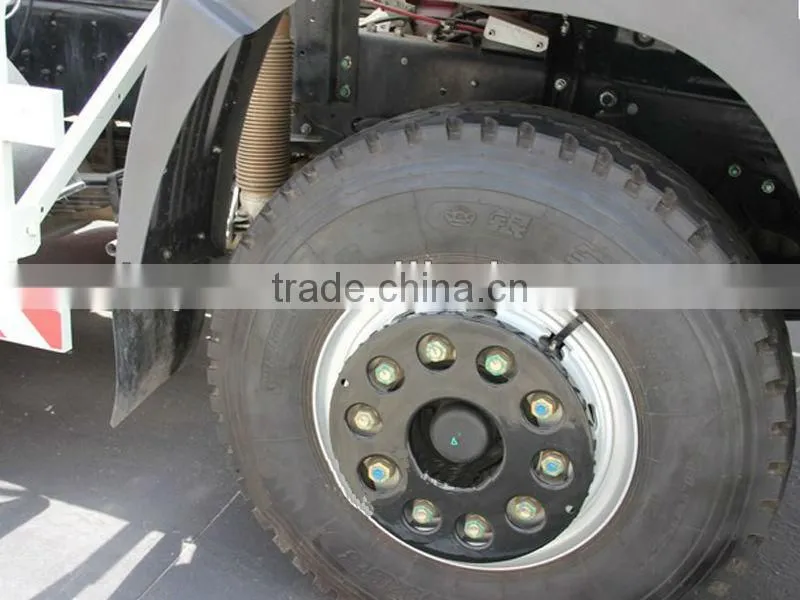

| Tire & Spare Tire | 11.00R20 |
| Hydraulic pump | 54 USA |
| Hydraulic motor | 54 USA |
| Cooler | 54 Liters China |
| Capacity of Tank (m3) | 8 or 10 |
| Material of Tank | 16 Manganese Steel |
| Thickness of Tank (mm) | 5 |
| Kerb Weight / Payload Weight / Gross Weight | 12825 / 12000 / 24955 |
| Overall Dimension (mm) | 9800 x 500 x 960 |
| Wheelbase (mm) | 3800 + 1350 |
Concrete truck mixer application and features
The capacity ranges from 7 m3 to 14m3. The cleaned exhaust is up to European III standard. In addition, they have following characters:
1. Chassis: we have bought different chassis for alternative, such as China Faw, China Dongfeng, Foton, Styre, Isuzu, Volvo, etc.
2. Hydraulic system of driving drum: The hydraulic system can adopt different imported brands according to the customers requirement.
3. Mixing drum: Specialized design keep the wall of mixing drum from sticking concrete. That improve homogenizing of concrete and no concrete remained and stuck. The drum and mixing lamina are made of excellent wearable steel plate. This assures their longtime work.
4. Feeding and discharging system: The feeding bucket and discharging bucket are made of excellent wearable steel plate. They can be against tremendous impact from concrete discharging. They are equipped with lock system, easy to lift and put down, to be fixed in good position.
5. Control system: The control handspike under the driver sit and at two sides of truck back can conveniently control the rotating direction and rotating speed of mixing drum. So that is security and stability.
7m3 concrete truck mixer:
Geometric volume: 12.1m3
Efficitive agitate volume: 7m3,
Effictive mixing volume: 5m3
Inclination angle: 15
Vane: Double-screw vane
Oil pump: A4VTG71
Motor: Deutschland Rexthroth AA2FM63
Type of engine/Power: WD615.87/213
8m3 concrete truck mixer:
Geometric volume: 13.8m3
Efficitive agitate volume: 8m3,
Effictive mixing volume: 6m3
Inclination angle: 15
Vane: Double-screw vane
Oil pump: A4VTG71
Motor: PLM7
Type of engine/Power: WD615.69/247 WD615.87/213
9m3 concrete truck mixer:
Geometric volume: 16.5m3
Efficitive agitate volume: 9m3,
Effictive mixing volume: 7.5m3
Inclination angle: 12
Vane: Double-screw vane
Oil pump: A4VTG71
Motor: PLM7
Type of engine/Power: WD615.69/247kW
