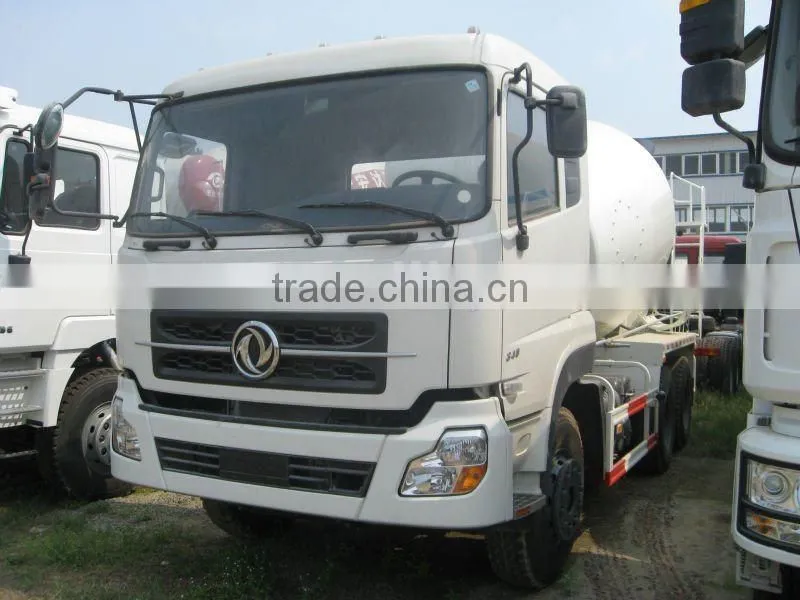

8/10/12 M3 mixer truck with the cement for hot sale.
- 10 Set / Sets per Month
- Shanghai Qingdao Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
- SHANTUI JANEOO Concrete Electric truck mixer
- SHANTUI JANEOO Concrete mixer truck C612
- new concrete mixer truck manufacture good condition machinery
- 6cbm three wheel diesel mobile concrete mixer truck for sale
- concrete mixer truck for sale cement mixer truck made in china
- hot sell 4 wheel mobile concrete mixer truck concrete transit mixer
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Toper |
Model Number: | 10CBM | Weight: | optional | Dimension(L*W*H): | standard |
Power(W): | Optional | Certification: | ISO 9001;2008&CE | Warranty: | 18 month |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Features
Capacity ranges from 6m3 to 16m3
Self-loading, self-mixing, self-supplying water, self-discharging
Constraction machinery/concrete mixer truck/concrete transportation truck
This type concrete mixer truck most widely used is the Cement Truck – Materials are loaded at a concrete mixing plant, Then the concrete is mixed in transit and delivered to job sites.
The concrete can be unloaded via a chute for ground level applications or the concrete is poured into a concrete pump system for high height applications.The capacity of concrete mixer truck ranges from 6 m³ to 16m³, meeting customers' various needs.
Main structure of the mixer machine
Classis; update, drive shaft hydraulic, reducer system; tanker; discharging; cleaning system; frame,; manual system; roller system; filling system; electric system.
Technical parameter of the mixer machine
Item |
| 7m³ concrete truck mixer | 8m³ concrete truck mixer | 9m³ concrete truck mixer | 10m³ concrete truck mixer | 12m³ concrete truck mixer | ||
Drum | Geometric volume(m³) | 12.1 | 13.8 | 16.5 | 17.5 | 20.5 | ||
Effective agitate volume(m³) | 7 | 8 | 9 | 10 | 12 | |||
Effective mixing volume(m³) | 5 | 6 | 7.5 | 8.5 | 10.5 | |||
Inclination angle | 15 | 15 | 12 | 11 | 11 | |||
Rotational velocity(r/min) | 0~14 | |||||||
Rotation direction(from the rear of truck) | Charge in clockwise, discharge in anticlockwise | |||||||
Vane | Double-screw vane | |||||||
Discharge capacity | When the slump is 5cm≥2m³/min | |||||||
Remnant | When the slump is 5cm≤1% | |||||||
Charge and discharge device | Hopper (L×W)(mm) | 950×1000 | ||||||
The main hopper length (mm) | 1600 | |||||||
The annex hopper length(mm) | 780 | |||||||
Water supply system | Water pump (WP24-180B12)or(WP24-180B12) | |||||||
Hydraulic system | Oil pump | A4VTG71 | A4VTG71 | A4VTG71 | A4VTG90 | A4VTG71/32R | ||
Motor | Deutschland Rexthroth | PLM7 | PLM7 | PLM9 | PLM9 | |||
AA2FM63 | (3in1) | (3in1) | (3in1) | (3in1) | ||||
chassis | Type of engine/Power | WD615.87/213
| WD615.69/247 WD615.87/213 | WD615.69/247 | WD615.69/247 | WD615.47/273 | ||
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
