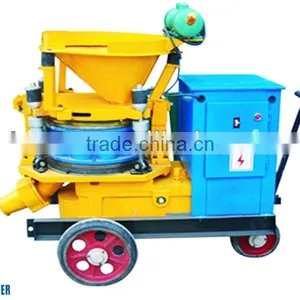

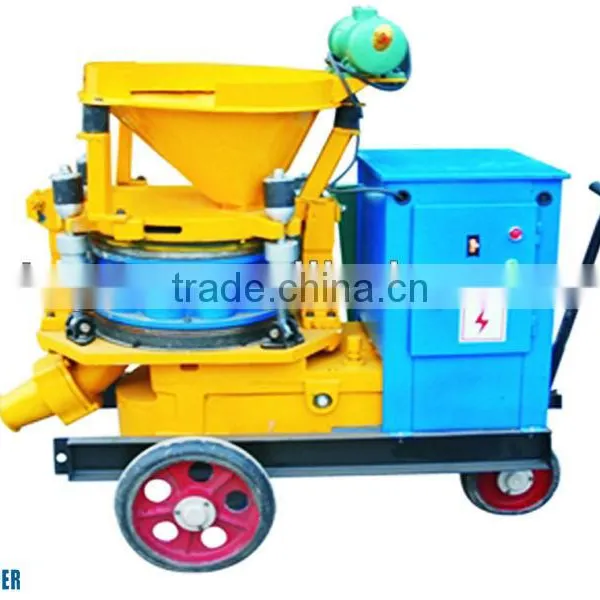

HSP Wet-mix shotcrete machine

item

HSP-5

HSP-7

HSP-9

Output

4-5 m³/H

5-7m³/H

6-9m³/H

Max. Convey dist

Horizontal:30m Vertical: 20m

Horizontal:30m

Vertical: 20m

Horizontal:30m

Vertical: 20m

Concrete proportion

1:4-5C/A

1:4-5C/A

1:4-5C/A

Water cement ratio

≤0.4

≤0.4

≤0.4

Hose inner size

Φ51m

Φ51m/64mm

Φ51m/64mm

Max. Aggregate size

15mm

15mm

15mm

Operating air pressure

0.3-0.6MPa

0.4-0.6MPa

0.4-0.6MPa

Air consumption

10-15m³/min

10-15m³/min

10-15m³/min

Rotor  diameter

438mm

480mm(160)

480mm(175)

Spring rate level

≤10%

≤10%

≤10%

The accelerating liquid adding amount

0.3-0.7%

0.3-0.7%

0.3-0.7%

main Electric motor power

Y132m-6-5.5KW

Y160m-6-7.5KW

Y160m-6-7.5KW

vibration electric motor power

0.37KW

0.37KW

0.37KW

Accelerating metering pump

pneumatic

pneumatic

pneumatic

Electric Voltage

380V

380V

380V

Overall dimension(mm)

1280x700x1280

2000X800X1300

2000X800X1300

 Whole weight

700kg

800kg

900kg

wheel

Nylon wheel ;Rubber wheel ;skid wheel ;Rail wheel
