Specifications
Cement screw conveyoroverall rigidity, big load capacity, can continuous transport no matter horizontal or a large angel.

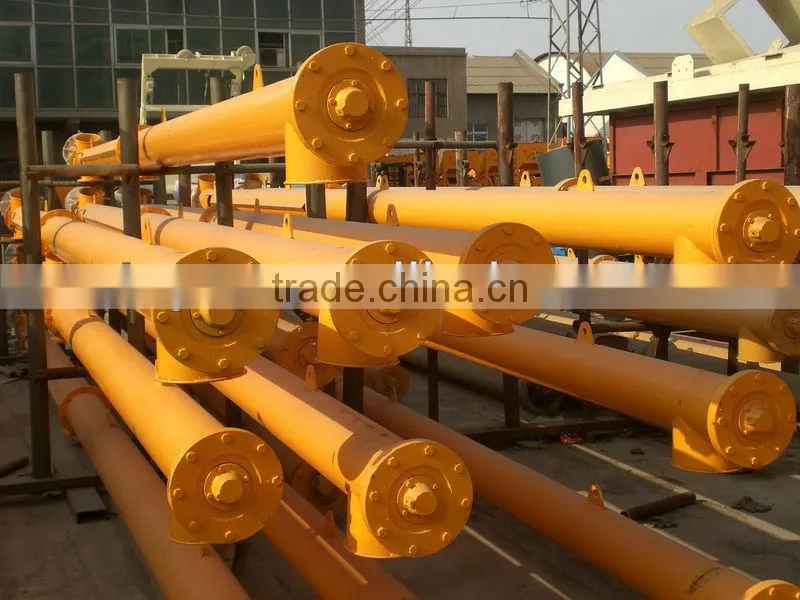

Sand, cement screw conveyor used in concrete batching station
This cement conveyor is suitable for transporting all kinds of powder, granular, small block materials, such as cement, clay powder, coal, sand, grains, pebbles and so on. And screw conveyor is especially suitable to conveyor cement from cement silo to mixer or batching machine.
Our LSY cement screw conveyor has the following features,
1 cement screw conveyor with high-quality seamless tube, overall rigidity, are free to choose the work location and work status, no dust leakage, safe and reliable.
2 using a molding screw blade welded to the central tube, the balance can be achieved completely, double pitch design reduces the material compressing degree in the transport, especially for long distance or the delivery of powder materials such as cement powder.
3 high-quality reducer, heavy design, with large torque, low noise, no oil leakage, long life.
4 optional universal ball, making installation adjustment easily, together with high tightness, also ensure good connection strength.
7 common diameter 219,273,323,407 large stocking, size and angle can be customized according to customer requirements.
8 is assembled under standard, more convenient to transportation.
Our cement screw conveyor parameters,
Type |
LSY163 |
LSY180 |
LSY230 |
Diameter(mm) |
163 |
180 |
230 |
Speed(r/min) |
310 |
310 |
240 |
Shell diameter(mm) |
194x6 |
219x8 |
273x8 |
|
Rated conveyor capacity (cement)(t/h) |
35 |
45 |
65 |
Conveyor length(m) |
2-12 |
2-13 |
2-15 |
Working angle |
0-60 |
0-60 |
0-60 |
Motor |
Y132M-4 |
Y160L-6 |
Y160L-4 |
