Specifications
Concrete pump:1,world advanced techniques
2,hydraulic loop
3,distribution valve auto-compensating clearance

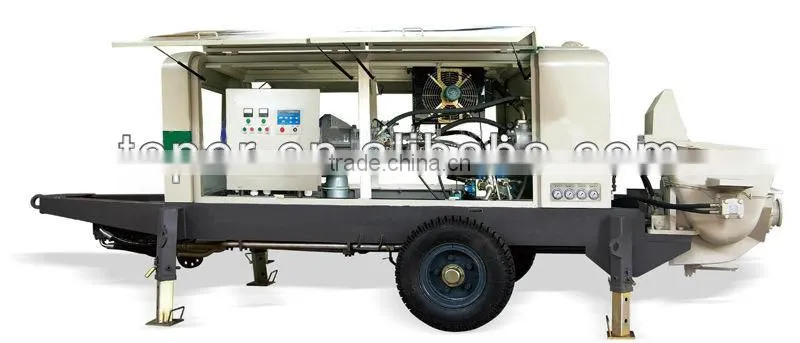

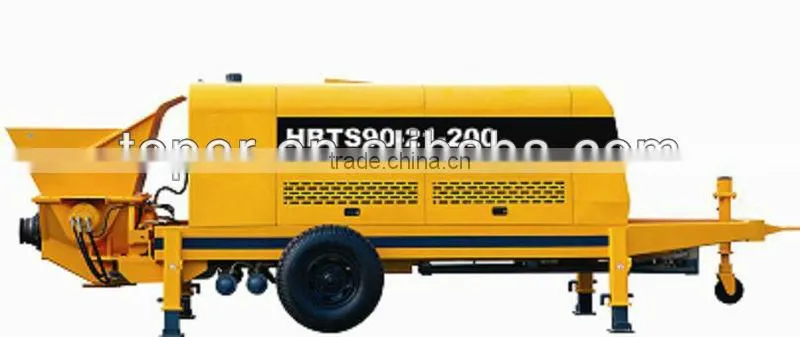

Concrete pump used for concrete
Brief introduction of concrete pump
The concrete trailer pump adopt such world advanced techniques as open hydraulic loop,distribution valve
auto-compensating clearance,constant power control, total hydraulic automatic change,and electric proportional
control,etcand all adopts steamline production assembly while the company strictly controls all the machining
processes and assembly quality and gives final test to every pump trailer by simulation working conditions and
overload experiments to ensure customers zero fault in the first operation.
Technical parameters of concrete pump
| HBT-Z-gate valve serial pump trailer main technical parameters | ||||||||||
| Pump trailer model | Pumping displacement in theory (m3/h) | Mpa Outlet pressure (MPa) | Max.transport distance(m) | Concrete cylinder diameter ×stroke (mm) |
Electric machine power (kw) |
Outer size(mm) | Main machine weight (kg) 5600 6500 | |||
| HBT60Z1407-75 | 69 | 7 | 580 | 120 | 200×1400 | 75 |
6370× 2045×2065 |
|||
| HBT60Z1407-112 | 69 | 7 | 580 | 120 | 112 |
6030× 2045×2559 |
||||
| HBT-D-butterfly valve serial pump trailer main technical parameters | ||||||||||
| Pump trailer model |
Pumping displacement in theory (m3/h) |
Mpa Outlet pressure (MPa) |
Max.transport distance(m) |
Concrete cylinder diameter ×stroke (mm) |
Electric machine power (kw) |
Outer size (mm) |
Main machine weight (kg) | |||
| High pressure | Low | High pressure | Low pressure | Horizontal | Vertical | |||||
| pressure | ||||||||||
| HBT40D1206-55 | 24.5 | 40 | 6 | 3.7 | 500 | 100 | 195×1200 | 55 |
6035× 2005×2072 |
4500 |
