Lightweight concrete wall panel making machine1.super quality
2.high effective

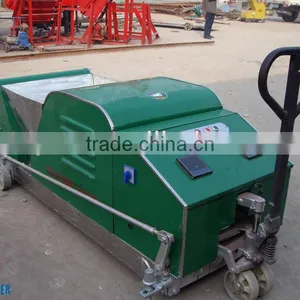

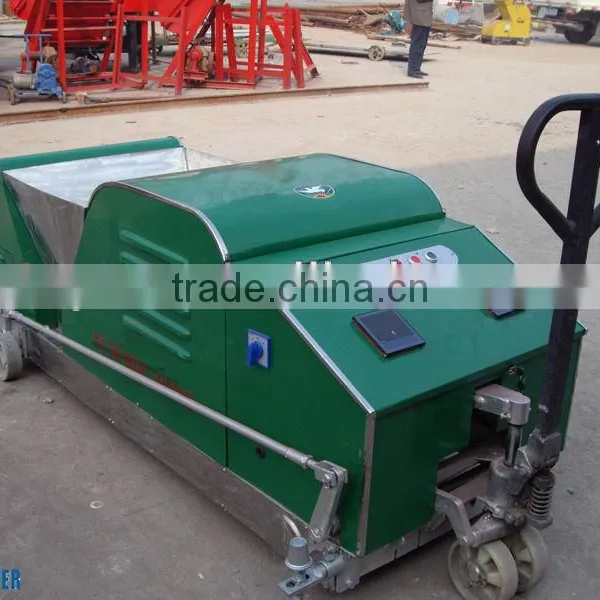

lightweight concrete wall panel making machine
TBQT Series Lightweight concrete wall panel making machine take industrial ash and slag, fly ash, coal gangue, pumice, shale, haydite etc of one or more, add a certain proportion of ordinary Portland cement, expanded perlite as raw material, you can add 1.6-2.8mm low carbon steel wire in the wall panel as support strengthened material, this machine can move automatically, can produce lightweight wall panel in succession. It obtained national patent and the patent no. is ZL 2004 2 0112785.3.In ration of raw material, the rate of Industrial solid waste can be arrived at 75%, it is high value in our country now. The lightweight wall panel fit with the People's Republic of China construction industry standard JG/T169-2005 lightweight wall panel’s standard.
1. The panel can be decorated with prestressed low carbon steel wire, diameter 1.6-2.8mm.
2. Production site use trams (channel steel orientation) or trackless (Ground sizzling orientation) ,the user can place order according to need to order
3. Spiral reamer, edge template, vibration plates, hang hooks, guiding reinforced mixture device etc easily-worn are surrounded by hard alloy welding, enhance easily-worn parts service life extremely.
4. There is the hydraulic system, when adjust and move the machine, so the operation is simple and low labor strength.
5. Can Produce 450-500 square meters per 8 hours everyday
TBJQT Lightweight concrete wall panel making machine technical parameters
Type |
TBQT9x60 |
Width(mm) |
595±2 |
Thickness(mm) |
90±1 |
No. of holes and hole diameter(mm) |
7x58 |
Panel making speed(m/min) |
1.1-1.7 |
Main motor (kw) |
Y112M-4 |
Vibrator(kw) |
ZW5A-0.8 |
Overall dimensions (mm) |
2560x950x980 |
GW(kg) |
1100 |
EXW Price ( usd) |
12000 |
