Help CenterHigh Quality Concrete Pump Used Machinery for Concrete Station
Related Products
-
Cement Silos for Construction IndustryUS$ 1,000 - 10,000MOQ: 1 Set -
Good Quality Decomposable Cement Silo/detachable Cement SiloUS$ 9,000 - 20,000MOQ: 1 Unit
-
Hot Sell Modular Bolted Cement Silo(30 50 80 100 150 200 300T)US$ 8,000 - 15,000MOQ: 1 Unit
-
Super Quality Screw Conveying Machine/screw ConveyorUS$ 1,500 - 6,000MOQ: 1 Set
-
Sand, Cement Screw Conveyor Used in Concrete Batching StationUS$ 1,500 - 6,000MOQ: 1 Set
Specifications
Concrete pump:1.Hydraulic system.
2.Electrical control system.
3.large delivery volume.
4.good maintainability.
The main type including:
1. S value diesel engines/motor series.
2. Z value diesel engines/motor series.
3. Superhigh Trailor.
4. Mining concrete pump.
Main Characteristic:
Hydraulic system adopts imported factory-assembled valve groups to control concrete pump with much higher reliability:
Main electrical components, all imported factory-assembled, fully ensure high reliability of electrical control system;
As the inclined-mounted slide value is adopted as the distribution valve, the capacity of material-suction is good, and the work is reliable;
Thew main oil pump with constant-power variable large delivery volume has high efficiency of main power under constant power;
Blade, especially designed with little dead angle of agitation, can be fit for many kinds of concrete mix proportions.
Due to its functions of automatic recession, the check and change of piston heads will be convenient and rapid.
The text display with large screen which is operated in menu type could lessen operation buttons; and the protection level of the eletric control box reaches Grade-IP65
The speed adjustment of the diesel engine automatically controlled by computers had gained the demestically exclusive patents.
As the electro proportional controlling technology is introduced, the pumping displacement could be adjusted steplessly.
With good maintainability, the assembly and disasembly of all wearing parts is very convenient.

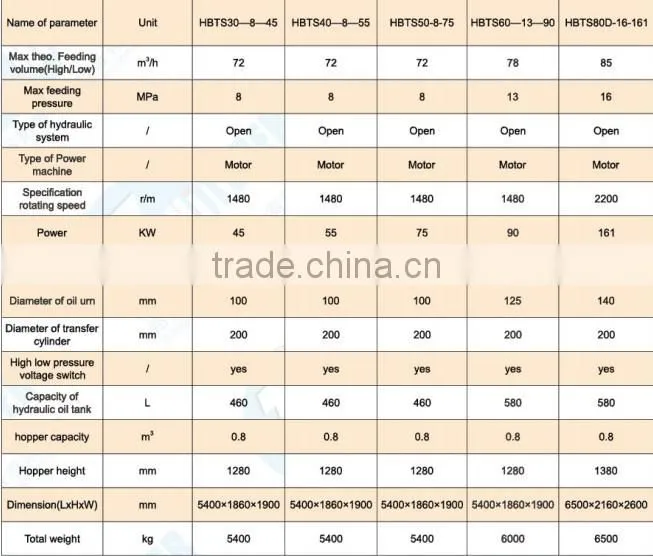

Main technically parameter:
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
