Specifications
Shotcrete machine>CE,ISO9001:2000
>make shotcrete machine 10years
>capacity:9m3/h,pump distance:200M
>220V,380V, 415V

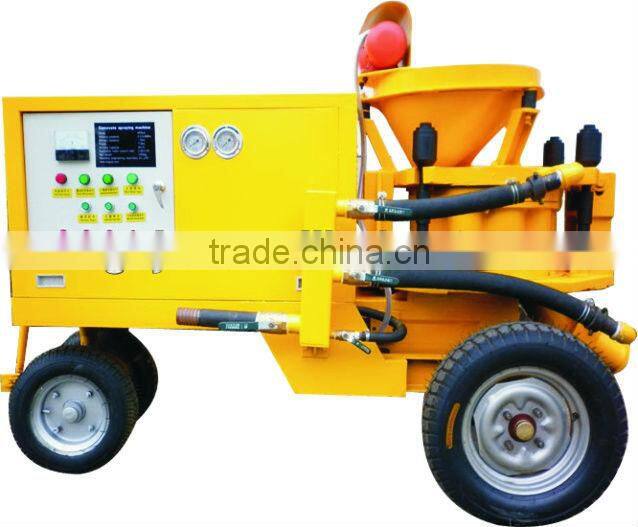

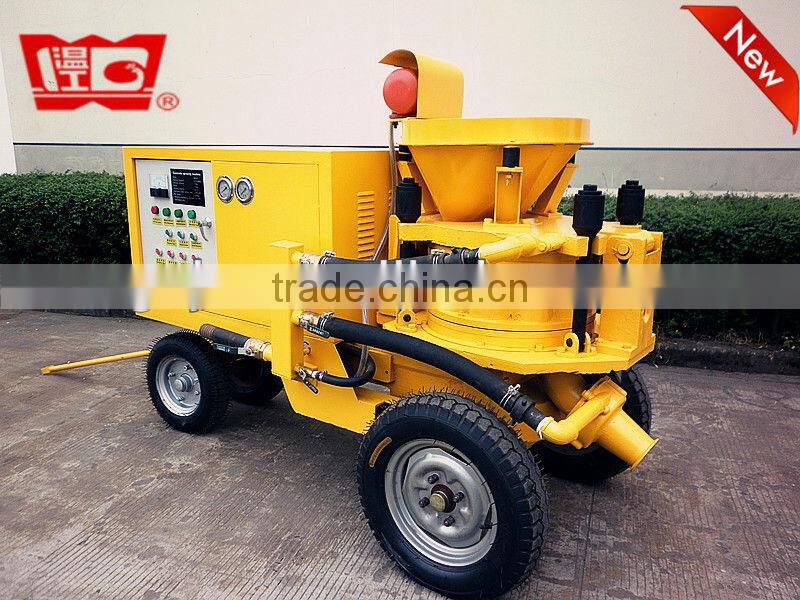

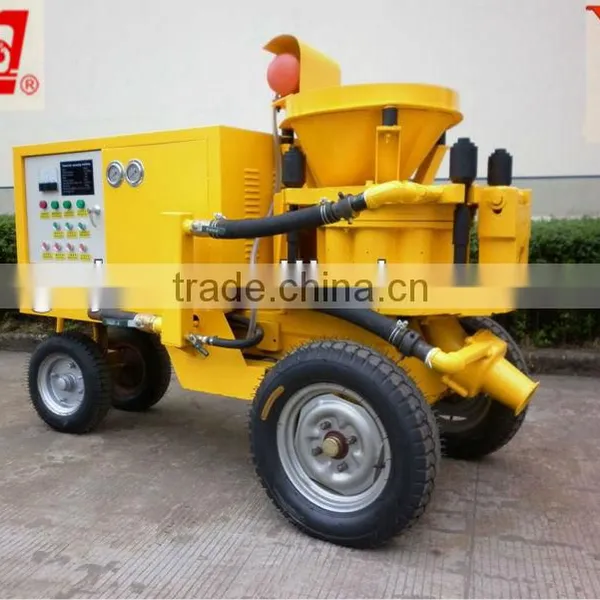

PS-7 Shotcrete machine
PS series wet concrete shotcrete machine is the ideal equipment for concrete anchor shotcrete construction. It is widely applicable in tunnels, culverts, underground engineering, coal mining, mine shaft, water conservancy power engineering and slope protection, soil nail wall project and anchor shotcrete support construction. The accelerated agent conveying is independent system, accurately control and adjust freely through the standard metering pump. The swirler upper shell sets special made rubber chamber, is benefit for mixture conveying through air pressure vibration with non-stick material and smooth internal wall. The machine has advantages of stable performance, easy operation and maintenance, energy saving, long service life, environment friendly to improve shotcrete layer quality.
Technical parameters of PS series wet concrete shotcrete machine
Model |
- |
PS-7 |
PS-9 |
Motor power |
kw |
7.5 |
11 |
Production capacity |
m3/h |
7 |
9 |
Cement-sand ratio |
- |
1 : 3-5 |
1 : 3-5 |
Water-cement ratio |
- |
≤0.55-0.65 |
≤0.55-0.65 |
Maximum horizontal delivery distance |
m |
30 |
30 |
Maximum vertical delivery distance |
m |
15 |
15 |
Vibration motor power |
kw |
0.25 |
0.25 |
Maximum aggregate size |
mm |
15 |
15 |
Inner diameter of delivery hose |
mm |
51, 64 |
51, 64 |
Working air pressure |
Mpa |
0.4-0.6 |
0.3-0.6 |
Air consumption |
m3/h |
≥10 |
≥10 |
Net weight |
kg |
900 |
1000 |
Dimension (L×W×H) |
mm |
2000×800×1100 |
1950×1050×1300 |
Note: The products are improved without notice!
1. PS-7 wet shotcrete machine can be used for dry and wet both shotcrete spraying. It can be used in railway tunnel, rock soil slope construction, swimmingpool.
