Help CenterCE Approved! 9m3/h Wet-mix Shotcrete Machine
Related Products
-
ISO9001:2008 5m3/h Small Wet Concrete Gunite PumpUS$ 4,600 - 5,500MOQ: 1 Set -
ISO9001:2008 PS-7 Wet Shotcrete MachineUS$ 4,800 - 5,500MOQ: 1 Set
-
PZ-6 Aliva Small Shotcrete PumpUS$ 2,000 - 2,500MOQ: 1 Set
-
PZ-9 Concrete Pump and Spray MachineUS$ 2,800 - 3,500MOQ: 1 Set
-
PZ-9 Dry Mix Concrete Tunnel Shotcrete MachineUS$ 2,800 - 3,500MOQ: 1 Set
Specifications
wet shotcrete machine>CE,ISO9001:2000
>make shotcrete machine 10years
>capacity:9m3/h,pump distance:200M
>220V,380V, 415V
PS-9 wet-mix shotcrete machine
Wet-mix shotcrete machine is a Duplo-Concrete spraying machine for spraying with spraying boom. It's the most ideal device for the concrete anchor spray construction.
The conveying output is 8.0-9.0 m3/h and conveying distance is 200M for dry horizontal, 40M for wet horizontal, 30M for wet horizontal and 15M for wet vertical. The 18L rotor has a maximum grain size of 20mm.
And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted. And uniquely-made rubber bushing block on the swirler benefits mixture delivery.
Technical parameters of PS series wet concrete shotcrete machine
Model |
- |
PS-7 |
PS-9 |
Motor power |
kw |
7.5 |
11 |
Production capacity |
m3/h |
7 |
9 |
Cement-sand ratio |
- |
1 : 3-5 |
1 : 3-5 |
Water-cement ratio |
- |
≤0.55-0.65 |
≤0.55-0.65 |
Maximum horizontal delivery distance |
m |
30 |
30 |
Maximum vertical delivery distance |
m |
15 |
15 |
Vibration motor power |
kw |
0.25 |
0.25 |
Maximum aggregate size |
mm |
15 |
15 |
Inner diameter of delivery hose |
mm |
51, 64 |
51, 64 |
Working air pressure |
Mpa |
0.4-0.6 |
0.3-0.6 |
Air consumption |
m3/h |
≥10 |
≥10 |
Net weight |
kg |
900 |
1000 |
Dimension (L×W×H) |
mm |
2000×800×1100 |
1950×1050×1300 |
Note: The products are improved without notice!
1. PS-7 concrete shotcrete machine can be used for swimmingpool shotcrete, Civil engineering, rock shocrete

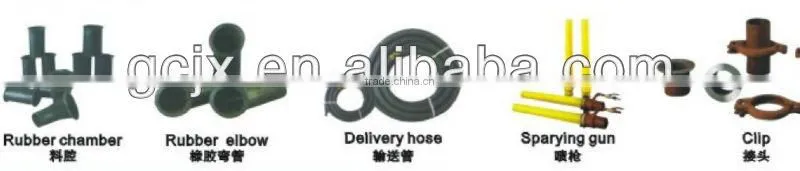

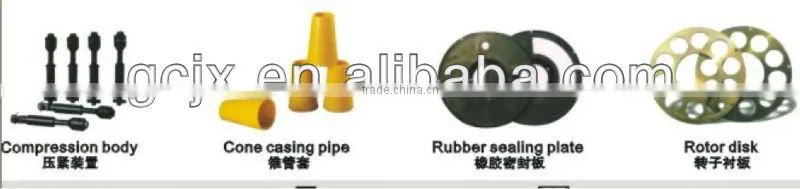

3. The spare parts as below:
