Specifications
concrete spray machine>CE,ISO9001:2000
>make shotcrete machine 10years
>capacity:9m3/h,pump distance:200M
>220V,380V,415V

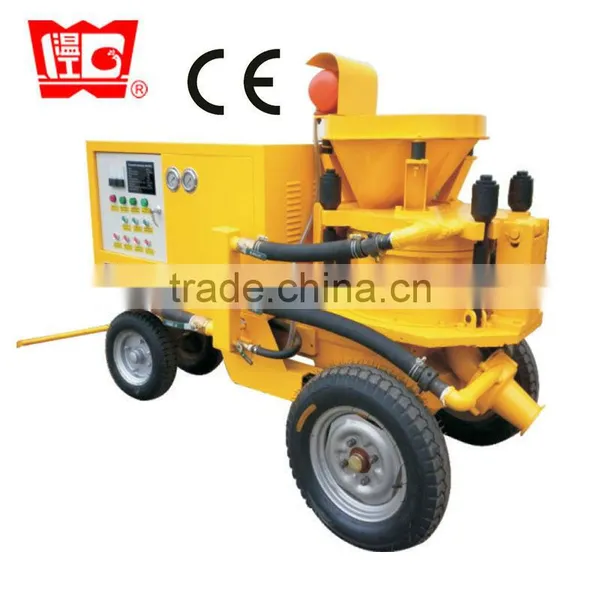

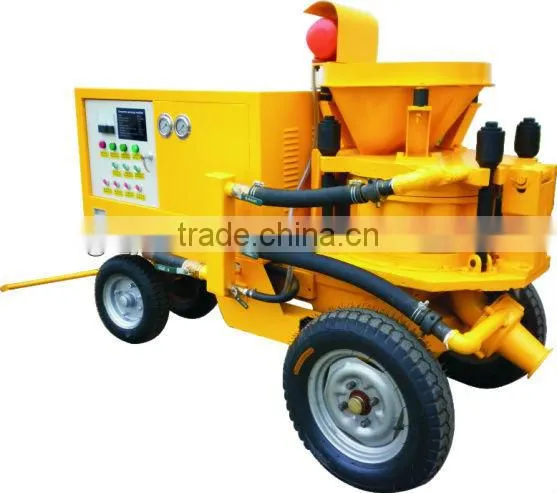

PS-9 concrete spray machine
PS series wet concrete shotcrete machine is the ideal equipment for concrete anchor shotcrete construction. It is widely applicable in tunnels, culverts, underground engineering, coal mining, mine shaft, water conservancy power engineering and slope protection, soil nail wall project and anchor shotcrete support construction.
The machine has advantages of stable performance, easy operation and maintenance, energy saving, long service life, environment friendly to improve shotcrete layer quality.
Technical parameters of PS series wet concrete shotcrete machine
Model |
- |
PS-7 |
PS-9 |
Motor power |
kw |
7.5 |
11 |
Production capacity |
m3/h |
7 |
9 |
Cement-sand ratio |
- |
1 : 3-5 |
1 : 3-5 |
Water-cement ratio |
- |
≤0.55-0.65 |
≤0.55-0.65 |
Maximum horizontal delivery distance |
m |
30 |
30 |
Maximum vertical delivery distance |
m |
15 |
15 |
Vibration motor power |
kw |
0.25 |
0.25 |
Maximum aggregate size |
mm |
15 |
15 |
Inner diameter of delivery hose |
mm |
51, 64 |
51, 64 |
Working air pressure |
Mpa |
0.4-0.6 |
0.3-0.6 |
Air consumption |
m3/h |
≥10 |
≥10 |
Net weight |
kg |
900 |
1000 |
Dimension (L×W×H) |
mm |
2000×800×1100 |
1950×1050×1300 |
Note: The products are improved without notice!
1. concrete shotcrete machines are exported with 20sets each month to Russia.
2. It can do wet and dry type shotcrete in lots of applications.
