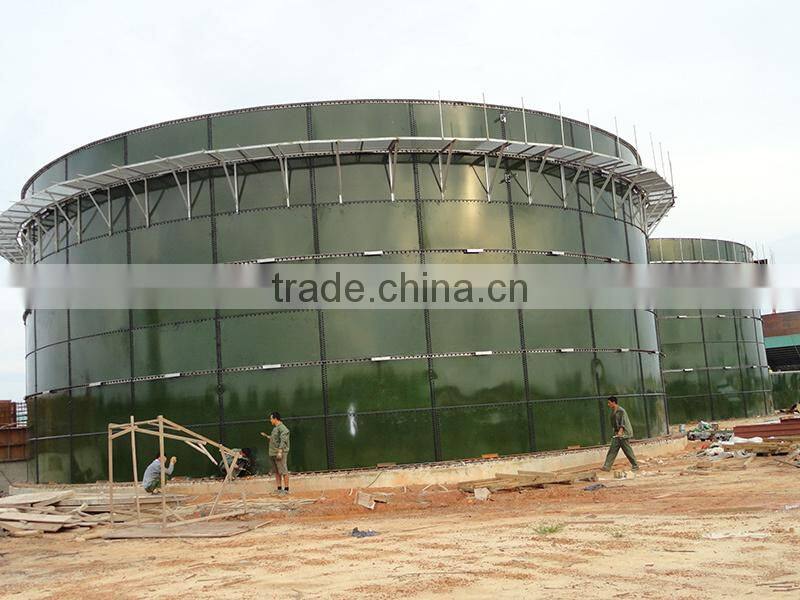

Cylindricall Glass Lined Storage Tanks for Fire Protection
Product Name |
Assembled Water Tank Bolted Storage tanks |
Feature |
Eco-friendly |
Coating color |
Dark green /can be customized |
Coating thickness |
0.25mm~0.40mm & Double coating |
Adhesion |
3,450N/cm |
Elastic |
Same as steel sheet ,around 500KN /mm
|
Acid and alkalinity proof |
Standard sheet PH:3~11 Special sheet PH: 1~14 |
Hardness |
6.0Mohs |
Service life |
≥30 years |
Holiday test |
>1500v |
Permeability |
Gas / liquid impermeable |
Easy to clean |
Smooth, glossy, inert, non adhesive |
Corrosion resistance |
Excellent,suitable for wastewater, salt water, sea water, high-sulfur crude oil, salt fox, organic and inorganic compounds |
--------About enamel coated steel tank (glass fused to steel tank )
The steel round (cylindrical) shell of the tank is built from two-layer enameled sheets coated on both sides. The
sheets are attached with special high-grade bolts and sealed by constantly flexible silicone (sealant). The surface
of connecting material and the shell itself are properly treated.
This is the only tank finish where two materials are fused together to achieve the best of both: the strength and
flexibility of the steel combined with the corrosion resistance of the glass. The high temperature fusion of glass
to steel fired at 850 degree results in an inert, durable finish. Applied to both interior and exterior, the GFS
technology is able to withstand the rigours of the construction site and provide many years of trouble free service
in harsh environments.
In water and waste water treatment and biogas project, GFS tank has been widely used as various aerobic and anaerobic reactors of UASB,EGSB,SBR,BAF,USR,CSTR, and equalization tank,Clarifier,
sludge holding tank, etc.
Raw Material
Application of enamel tank
Enamel tank is an ideal solution for a large number of applications, some are listed below:
Power &energy |
Water supply &treatment |
Wastewater treatment |
Industrial dry bulk storage |
Fuel oil,diesel |
Potable water |
Buffer pool |
Chemicals storage |
kerosene |
Water purifying tank |
Aerobic reactor |
Mineral |
Aviation oil |
Ro water |
Sludge tank |
grain, seeds |
DL water |
Disinfecting water |
Anaerobic reactor |
Stone,clay ,glass |
Fly ash silo |
Fire protection water |
Regulating tank |
Wood product |
Coal storage |
Irrigation water |
Water purifying tank |
Petrochemicals |
Drilling mud |
Biological filter |
Leachate storage |
Mining industry |
Reverse osmosis water |
Sedimentation container |
Animal wastes |
Foods |
Biogas biomass |
Lime silo |
Irrigation water |
plasthetics |
Advantages of enamel bolted tank
About Center Enamel Co., Ltd.
EnamelTank Leader in China since 1989–Premium Quality Glass Fused to Steel Tank Manufacturer
Center Enamel Inc.has been dedicated in design ,production and installation of environmental equipment since1989.Our main product is glass fused to steel tank .We are not only the enamel base ,but also the leader to
produce double-side enamel hot -rolled steel in China .
As the largest and the most professional enamel bolted tank supplier in China ,Covering an area of more than
80,000 square meters CENTER has more than 20 years’ experience in this field.Center attaches great importance
to build talent tank .With around 500 employees ,including 18 senior engineers ,more than 100 undergraduates
and higher education staff ,CENTER hasmade many breakthroughs in technology over the past years .Dozens of patented products have been exported to European ,Russia ,USA ,South Africa ,Africa and South America etc.
Center has the most advanced glass fused to steel production technology and professional production
line ,already passed ISO 9001-2000 ,and developed the enamel bolted tank enterprise standard Q/01ZT012009,
which is the highest standard in China and can meet European standards .We can produce AA grade (acid -proof
and alkali -proof )enamel sheet according to customers’ different operating requirement
-Niger water tank project
Project details: 6 tanks, 2 sets of 19.86*4.8M; 1 set of 9.93*4.2M; 3 sets of 9.93*3.6M GFS tank
----------------------------------------------------------------------------------------------------------------------------
4 sets of sedimentation tank Ø18.33×3.6M;1 set of mud collection tank Ø4.82×3.6M;
Total volume: 5200m3, Installation: 12 person, 15 days
----------------------------------------------------------------------------------------------------------------------------
2014 Urban Sludge Treatment Project- Kazakhstan

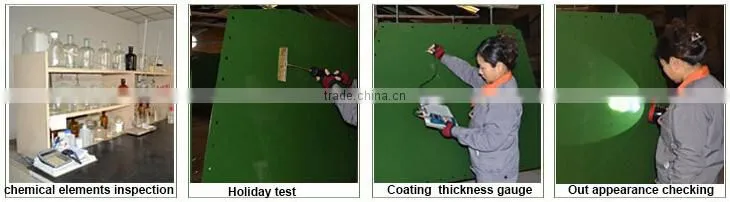

Quality Control Inspection and Testing
|
|
|
|

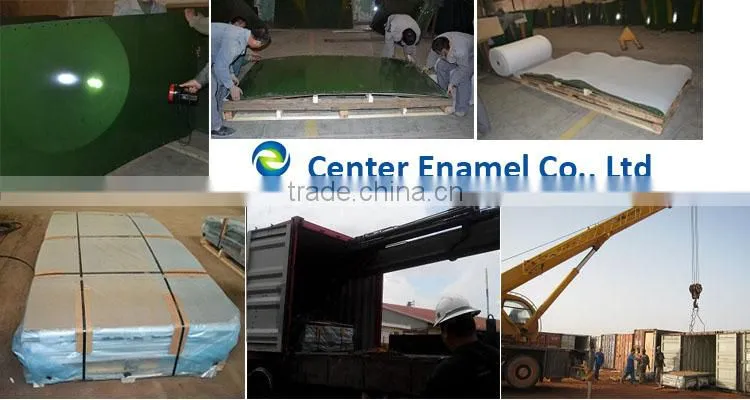

Package
To make sure of the plate’s code and quality,double checking is required before packing.The steel plates
are separated wit each other by PE foam, to avoid any damage on the coating surface. And the whole pallet
steels are covered with a outer film, tied by steel belt.
Certificates
* ISO9001-2000 certified
Service
We treasure every opportunity to cooperate customers from all over the world .It is our desire to ensure
the exceptional service.
