Rotary sand dryer TDS623/ sand drying production lines
- 50 Set / Sets per Month
- Qingdao/Tianjin
- T/T
Product Details
| Brand Name: | TF | Model Number: | TDS623 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
sand drying line TDS623/ sand drying production lines
Applications:
Raw material: river sand, yellow sand, coal powder, cement clinker and clay in
Cement Industry, Metallurgy Industry, Chemical Industry and Building Material Industry.
Parameters
Three Pass Dryer | TDS623, 1 set |
Drying capacity | 1-3 m3/h |
Diameter of drum | 2200mm |
Length | 1500mm |
Motor power | 4kw |
Reducer model | XWD-5 |
Speed of drum rotation | 4-10 r/min |
Moisture of end products | 0.1%-0.8% |
Max. temperature inside | 700-750℃ |
Outlet temperature | 30-60℃ |
Hot-blast Stove dimensions | 1.55m×1.3m×2.18m |
Furnace door | 450*550 mm |
Quicksand tube | φ165×1600 mm |
Coal consumption | 7-10 kg/ per ton sand |

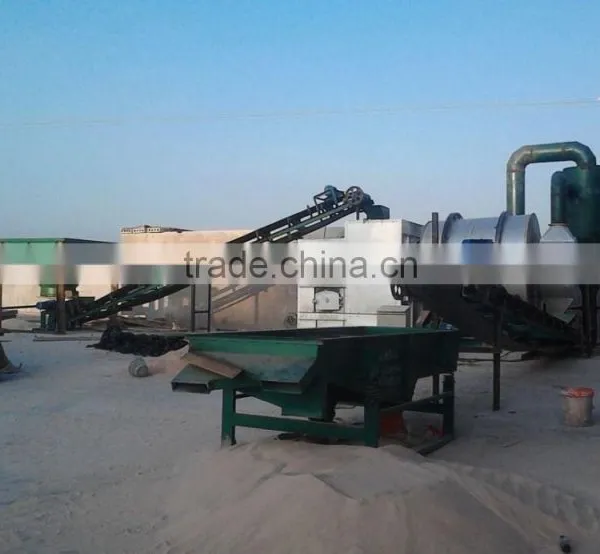

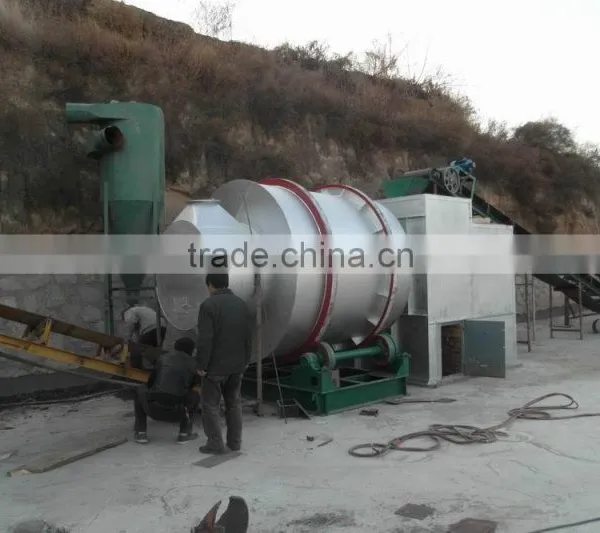

1 | Moist-material silo | 7 | Dedusting system |
2 | Feeding machine | 8 | Air blow |

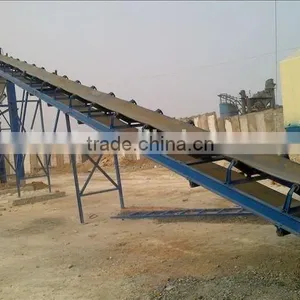

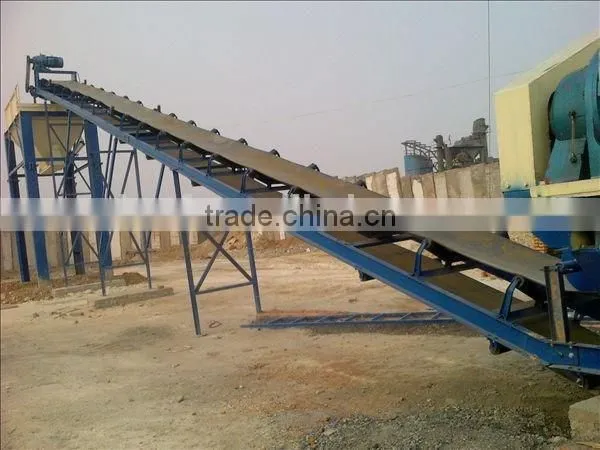

3 | Belt conveyor | 9 | Electric closet |
4 | Hot-blast stove | 10 | Vibrating screen |
5 | Dryer |
|
|
6 | Discharging silo |
|
|
Main parts

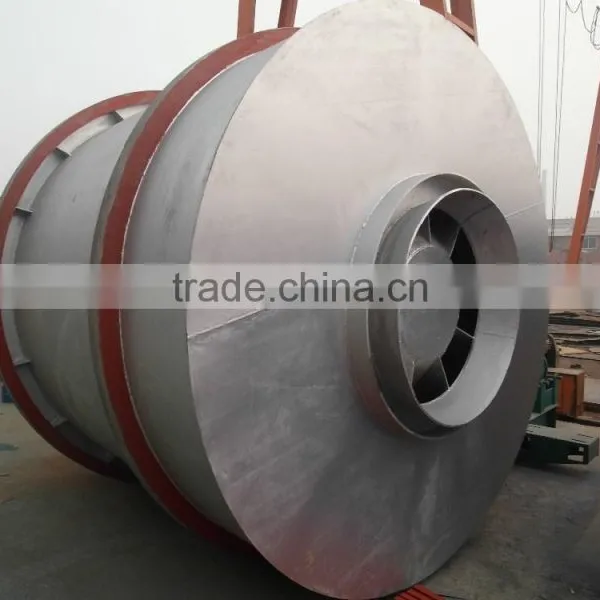

dryer
Hot-blast stove

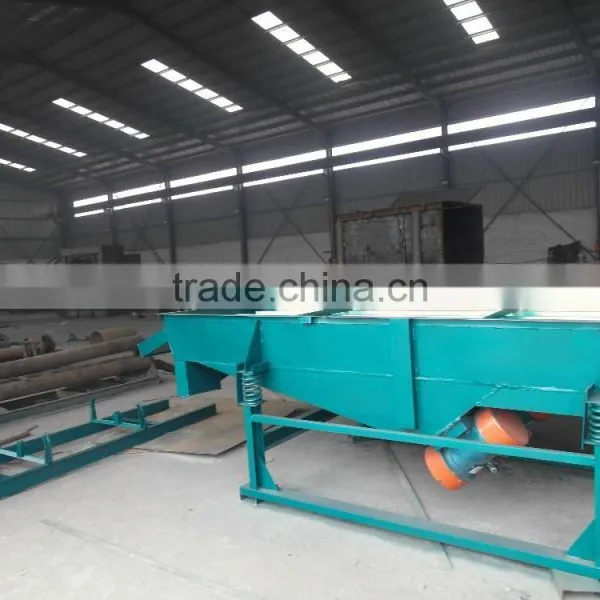

Linear screener
Storage Hopper
base of dryer
TENGFEI GROUP since 1958, have been one of the largest Construction Machinery suppliers in China now, located in Zhengzhou, main products are Dry Mortar Production Line, Concrete Batching Plant, Concrete Mixer Machinery, Mining Machinery and etc.
