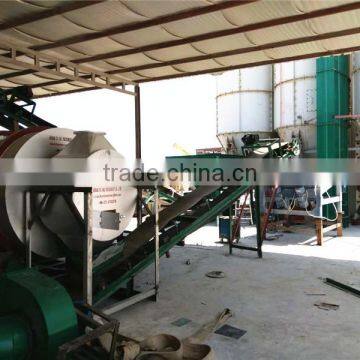

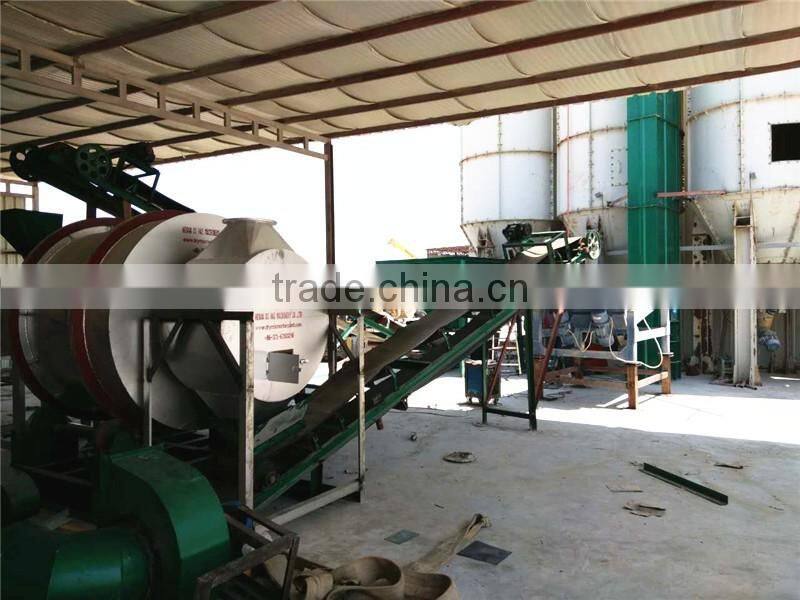

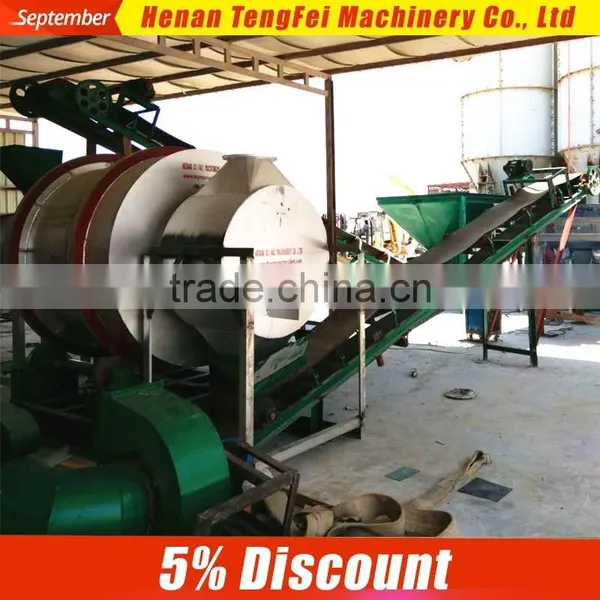

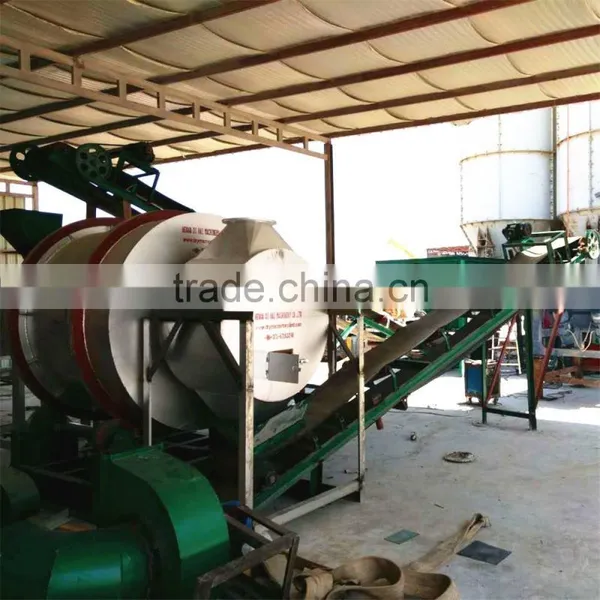

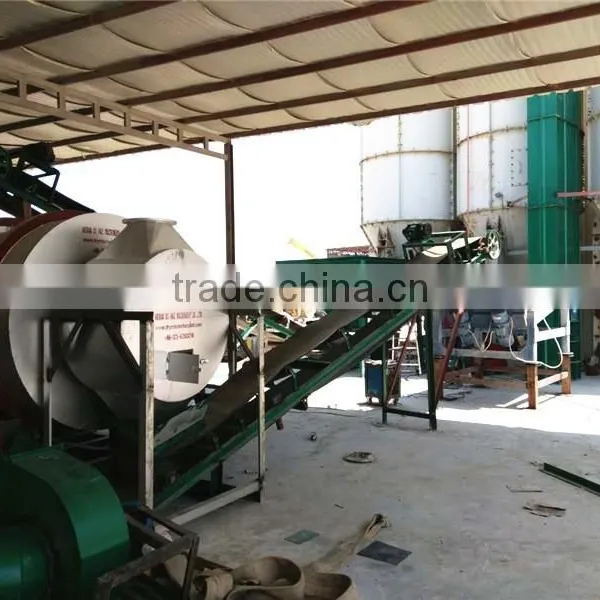

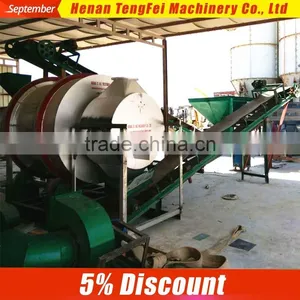

Industrial rotary dryer machine TDS625 new energy saving yellow sand dryer for salee
1. Features of TDS625 industrial rotary dryer
1).High technical content, self insulation cylinder body, 80% thermal efficiency (single- cylinder dryer is only 35%), coal saving is 68% than single-cylinder dryer and output increases 100%
2). The length is good for technical layout, 60% shorter than single-cylinder dryer. Also it’s about 20m³area, reducing plant area and saving 40% investment
3).Adopt heat resistant and wear resistant steel plate, 4 times wear resistant than the general steel plate, long service time and convenient to maintain.
4).Outside cylinder body temperature is below 60°(single cylinder temperature is up to 150°), with low outlet temperature.
5).Low outlet temperature is good for keeping long service life.
2. Features of TDS625 yellow sand dryer
Raw material: river sand, yellow sand, coal powder, cement clinker and clay in
Cement Industry, Metallurgy Industry, Chemical Industry and Building Material Industry.
3. Parameters of TDS625 dryer machine
Three Pass Dryer |
TDS625 |
Drying capacity |
6-8t/h |
Diameter of drum |
2200mm |
Length |
2500mm |
Motor power |
5.5kw |
Reducer model |
XWD-5 |
Speed of drum rotation |
4-10 r/min |
Moisture of end products |
<1% |
Max. temperature inside |
700-750℃ |
Outlet temperature |
60-80℃ |
Hot-blast Stove dimensions |
2.3m×2m×2.7m |
Furnace door |
450*550 mm |
Quicksand tube |
φ273×1800 mm |
Coal consumption |
7-10 kg/ per ton sand |

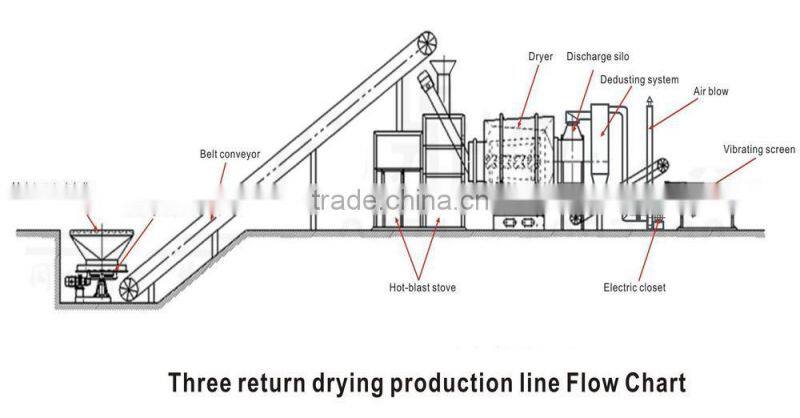

1 |
Moist-material silo |
7 |
Dedusting system |
2 |
Feeding machine |
8 |
Air blow |
3 |
Belt conveyor |
9 |
Electric closet |
4 |
Hot-blast stove |
10 |
Vibrating screen |
5 |
Dryer |
|
|
6 |
Discharging silo |
|
|
Main parts
dryer

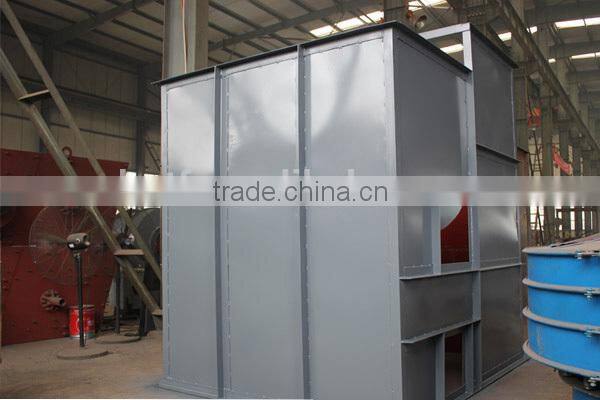

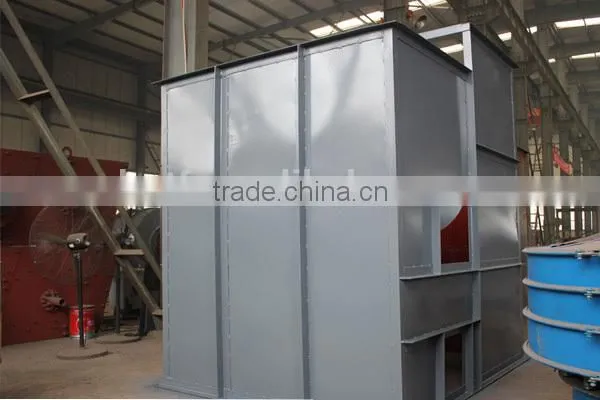

Hot-blast stove

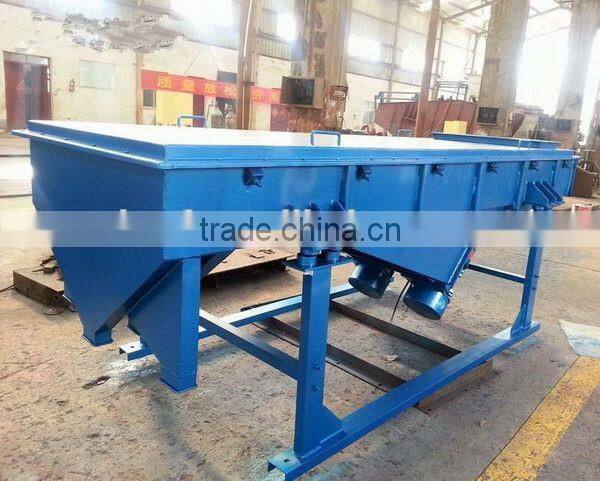

Linear screener

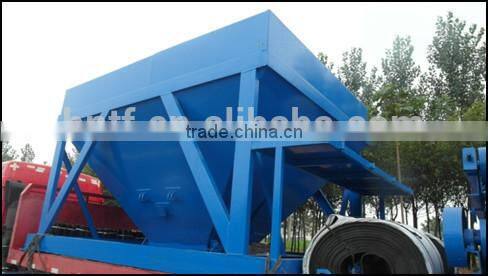

Storage Hopper

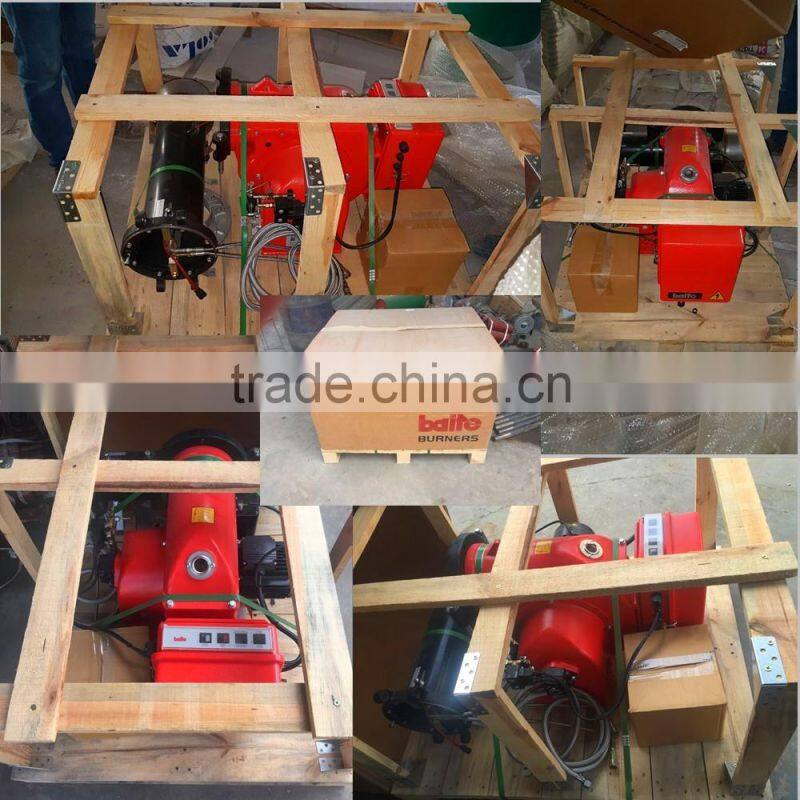

Diesel Burner
