Help CenterQT6-15B Table and Mould Vibrate Block Making Machine
Related Products
-
QT4-15A Block Making Machine Fully Automatic LayingUS$ 12,000 - 13,000MOQ: 1 Set -
German Concrete Block Making Machine Used QT5-15US$ 25,000 - 33,000MOQ: 1 Set
-
Full Automatic Block Making Machine Qt10-15 for SaleUS$ 22,000 - 23,000MOQ: 1 Set
-
Top Selling- QT5-15 Cement Block Making Machine DomesticUS$ 25,000 - 33,000MOQ: 1 Set
-
QT4-15A Used Mobile Concrete Block Making MachineUS$ 22,000 - 23,000MOQ: 1 Set
Specifications
QT6-15B table and mould vibrate block making machine1.BV
2.Multi-purpose design
3.Power:28.65kw
4.Molding cycle:15-25s

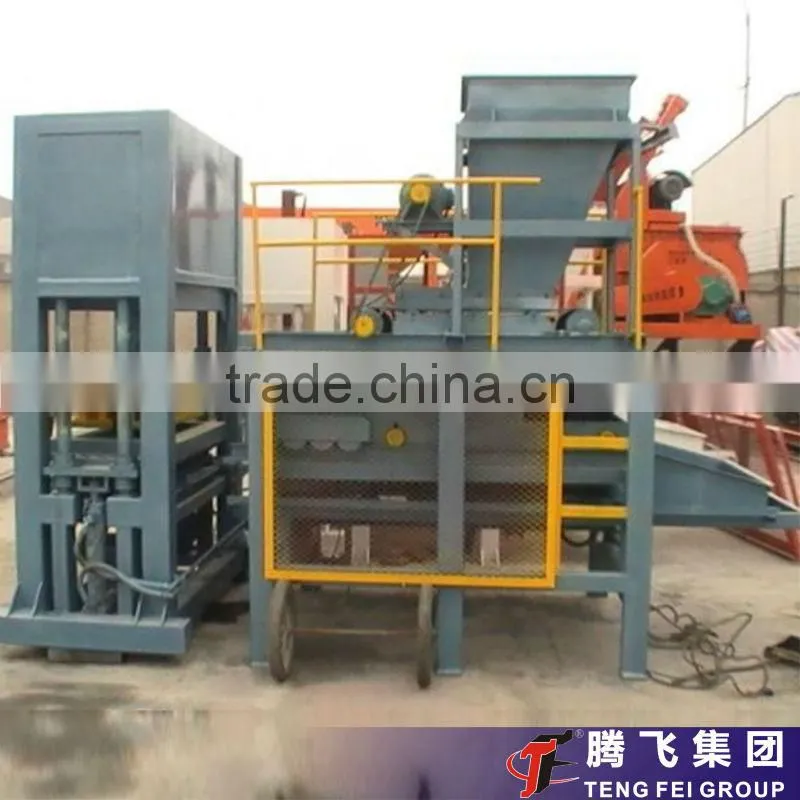

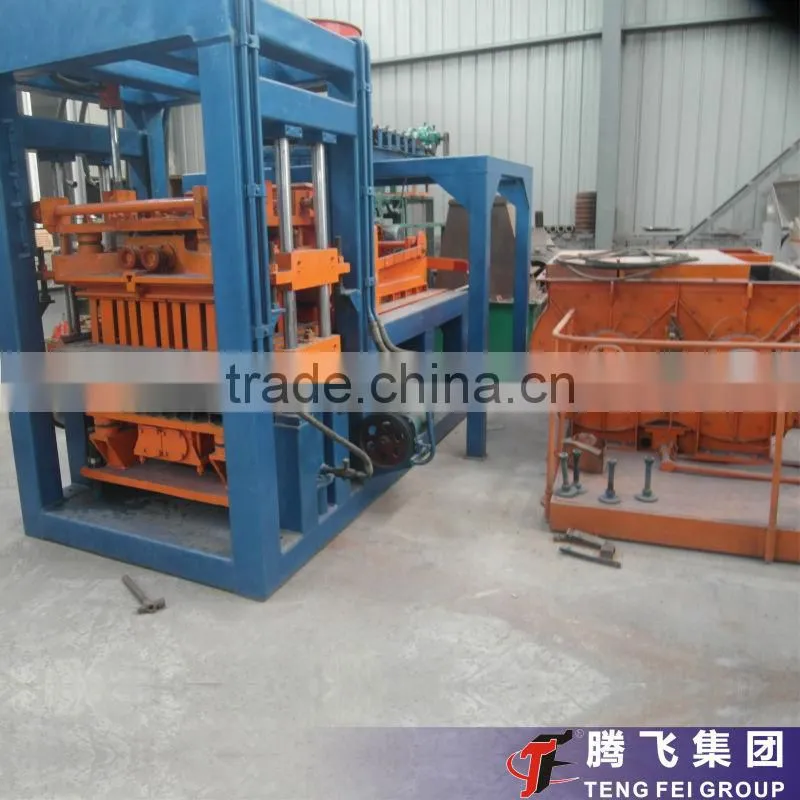

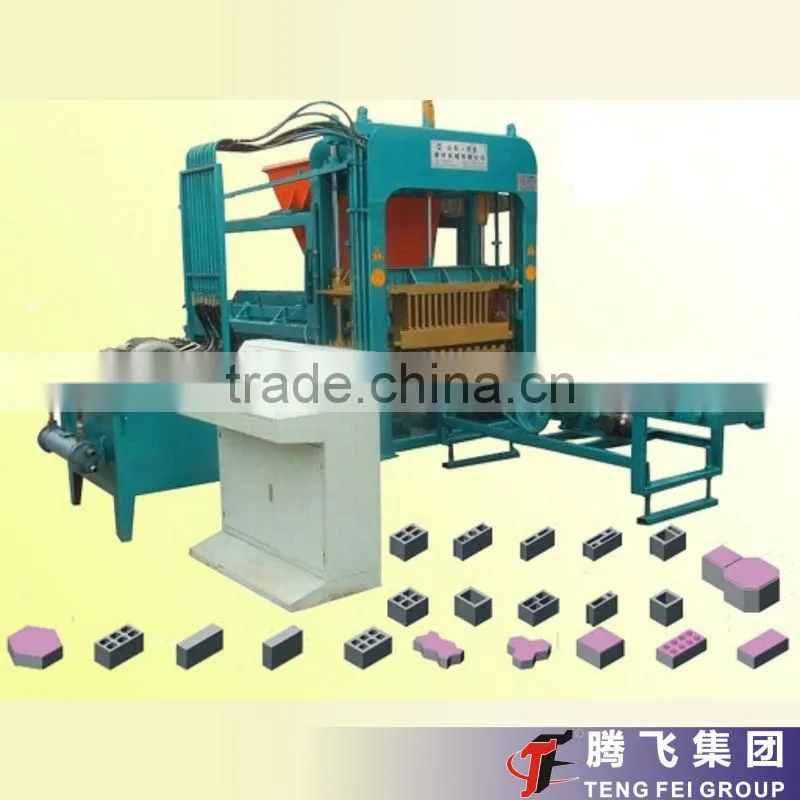

QT6-15B table and mould vibrate block making machine
| Introduction of QT6-15B table and mould vibrate block making machine |

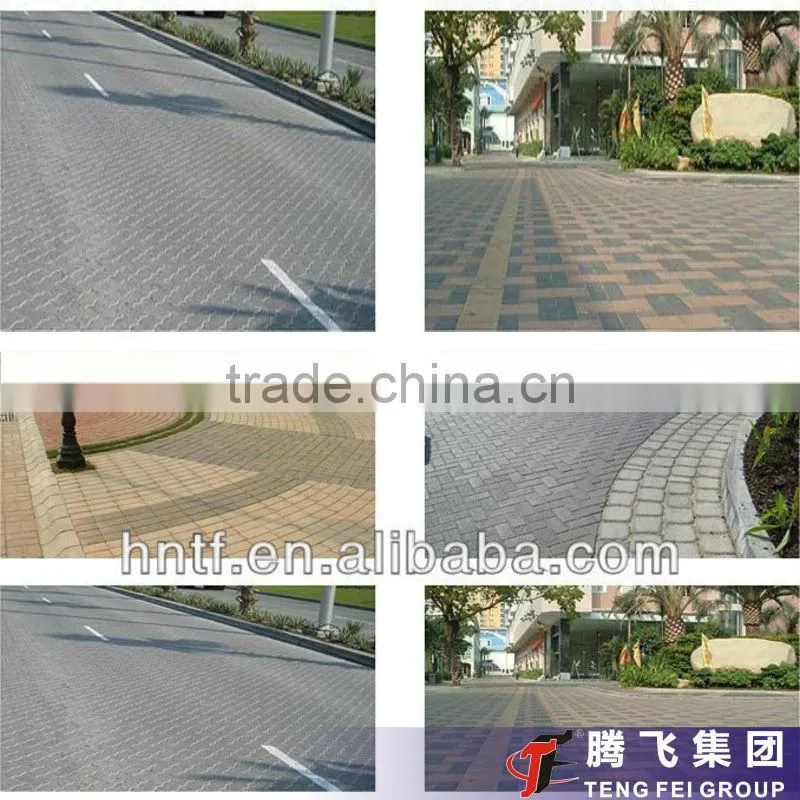

It produces various bricks/blocks including color-face bricks(layered material feeding),
through body tiles, dock linkage blocks, road curb bricks, sod bricks,hydraulic blocks
hollow blocks, perforated bricks, and standard bricks etc.
QT6-15B block forming machine is completely controlled by PLC system . by operating its
computer interace, the random signal analysis, fault diagnosis and parameter setting-up
of all kinds of materials can be achieved ,easily.The material stock hopper and the material
feeding hopper are separated, to each other ,for the purpose of quantitative feed of materials,
which can effectively control the advance liquidation of some concrete and reduce the feeding
time.Its unique material-feeding device can quickly and evenly discharge the materials into the moulding box so that the weight error in finished products can be reduced to the minimum.
| Features of QT6-15B table and mould vibrate block making machine |
| 1)operation according to the menu: starting the machine by the screen instruction, it can run automatically, and can realize unmanned operation. |
| 2)full intelligent quality control: advanced distribution pattern, to ensure that the same plate brick quality error less than 2%; full intelligent monitoring system, to ensure that each board brick quality be consistent from beginning to the end, and also meet the strength requirements. |
| 3)full intelligent fault treatment: fault not caused by the components, the machine can automatically judge and remove, no need the artificial solutions, to ensure the production proceed without interruption. |
| 4)intelligent data statistics: in the process of production, various kinds of data can be collected according to the user's requirements, and can automatically adjust some parameters on time, so that it could control the quality of products more effectively. |
| Technical Specifications of QT6-15B table and mould vibrate block making machine |
Overall Dimension : |
7100×1500×3000 (mm) |
Rated Pressure : |
16 MPa |
Main Vibration Form : |
Hydraulic Platform vibration |
Cycle Time : |
15~25 seconds |
Vibrating Frequency : |
4500-5100 rolls/minute |
Motors Power : |
31.25 KW |
Pallet Size : |
900*680 (mm) |
| Output capacity of QT6-15B table and mould vibrate block making machine |
| Mould No. | Block type | Block size&output capacity | Block picture | Pallet picture |
| 1 | Hollow |
400mm×200mm×200mm 6 pieces/mould 11000 pcs/8h |
|
|
| 2 | Hollow |
400mm×150mm×200mm 8 pieces/mould 14200 pcs/8h |
|
|
| 3 | Solid |
240mm×115mm×53mm 32pieces/mould 61440 pcs/8h |
|
|
| 4 | Standard | All kinds of standard block | |
|
| 1.Delivery time: 15 days after receipt of your deposit. |
| 2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery. |
|
3.Package: 1).Wire cables are used for fastening the machine on the trailer or inside the container. 2).Cork wood are placed in front or behind the machine to protect it. 3).Plastic film is covered on the machine as a rain-roof. 4).Crane is used during the whole loading. |
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Teng Fei Group is a manufacturer of construction machine and mine machine, with more than 15 years experience, mainly produce concrete batching plant, AAC block line, stabilized soil mixing plant, dry mortar production line, cement production line, concrete mixer, concrete pump ,concrete truck, cement silo, crusher, ball mill, raymond mill, sand making line and so on.
1.Pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.On-purchase service: our company can solve professional technical problems and other related issues for you.
3.After-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
