Specifications
aac brick plant1.50000-300000m3 annual capacity
2.Competitive price
3.ISO 9001 Certificate
4.automatic cutting machine
AAC Block Plant/ aac brick line
1. Basic Introduction of aac Block plant /aac brick line:
Autoclaved Aerated Concrete (AAC) is a siliceous material (sand, fly ash and silicon tailings such as waste porcelain clay, stone processing waste materials, blast furnace slag, etc.) and calcareous materials (lime, cement) as the main raw material, mixing fat gas agent (aluminum powder), by ingredients, mixing, casting, preraising, cutting, autoclave, curing process made of light porous silicate products, because by the hair contains a lot of gas even after the small pores, hence the name of aerated concrete.aerated autoclaved concrete plant, AAC block, aac production line, aac plant, AAC brick, autoclave aerated concrete block, concrete block machine, light weight block.
2. Advantages of aac Block plant/ aac brick line:
2.1, Lightweight:The aerated concrete dry bulk density generally is 400-800kg/m3, equivalently to clay brick 1/3, normal concrete 1/5, lower than normal light-weight aggregate concrete and hollow
brick, hollow clay brick. so, using aerated concrete as wall material can lighten the building self weight, and then reduce the size of
building foundation, girder and pillar etc. Structure, save building material and project cost, improve the building shock resistance.
Several common building material volume density (kg/m3)
material |
aerated concrete |
wood |
clay brick |
lime and sand brick |
hollow brick |
ceramsite concrete |
normal concrete |
index |
400-800 |
400-650 |
1600-1800 |
1700-1800 |
900-1700 |
1400-1800 |
2000-2400 |
2.2, Fireproof: Most of the major raw materials is inorganic materials, so it has good fire resistance, and do not emit harmful gases when meet fire. Fire 650 degrees, as a refractory material, the thick up of 90mm walls can reach to 245 minutes fire resistance, 300mm thick up wall can reach to 520 minutes fire resistance.
2.3,Sound insulation: Due to a unique porous structure, so it has a sound absorption capacity. The sound absorption capacity can reach of 10mm thick wall up to 41 db.
2.4, Insulation: As the material inside has a large numbers of the pores and porous, which has a good thermal insulation properties. The Thermal conductivity is 0.11-0.16W/MK, as 1/4-1/5 of brick. Typically, the insulation effect of 20cm thick aerated concrete wall is equivalent to 49cm thick solid brick walls ordinary.
2. 5, Permeability: Result of material by the composition of many independent small pores, the moisture absorption is slow, in the volume of absorbent is 5 times of clay saturation do. When used in the bathroom, the wall can be treated to interface directly paste tiles.
2.6, Anti-seismic:The same building structure, improve the two seismic than the brick level.
2.7, Green: Manufacturing, transportation, all use the process of pollution, to protect arable land, saving energy, is one kind of a green building material.
2.8, Durability: material strength is stability, in the specimens tested after one year of atmospheric exposure; the intensity increased by 25%, and remained stable after ten years.
2.9, Shortcut: it has good machinability, can be sawed, planed, drilled, nailed, and available appropriate as bonding of adhesive material, so create favorable conditions for building construction.
2.10, Economies: An integrated lower cost than using more than 5% of solid clay bricks, and can increase the usable area, greatly enhance the utilization of floor space.
3. Performance of aac block plant / aac brick line:
Finished AAC block is Suitable for all nonbearing wall and bearing wall of multi-story (less than six-floor), nonbearing wall internal parting wall, thermal insulation rooms front panel, floorslab.
3.1, Unit weight grade (kg/m3): 500, 600, 700, 800 (means 05,06,07,08 grade)
3.2, Compression strength grade (Mpa): A3.5, A5.0, A7.5, A10.0 (1Mpa=10kg/m2)
3.3, Drying shrinkage (mm/m): ≤ 0.8
3.4, Heat conductivity(w/m.k): 0.09-0.22
3.5,Sound-proofing performance(db): 40-47.75
Conforming with China national standards GB11968-1997 (the latest AAC block national standard)
4. Normal size of aac block plant /aac brick line :
Length (mm): 600
Width (mm): 75, 100, 125, 150, 175, 200, 250
60, 120, 180, 240
Height (mm): 200, 240, 250, 300
Remarks: the size can be customized
5. Main Raw maerial of aac block plant /aac brick line:
5.1 Typical Formula and Consumption of Fly ash AAC
Fly ash: content ratio 70%, consumption 350kg/m3; Cement: content ratio 13.8%, consumption 25-30kg/m3; Lime: content ratio 13.8%, consumption 140-150kg/m3; Phosphogypsum: content ratio 2.96%, consumption 15kg/m3; Aluminum: micro scale, consumption 0.4kg/m3
5.2 Typical Formula and Consumption of Sand AAC
Sand: content ratio 69.2%, consumption 350kg/m3; Cement: content ratio 13.8%, consumption 70kg/m3; Lime: content ratio 13.8%, consumption 70kg/m3; Gypsum: content ratio 2.96%, consumption 15kg/m3; Aluminum: micro scale, consumption 0.4kg/m3

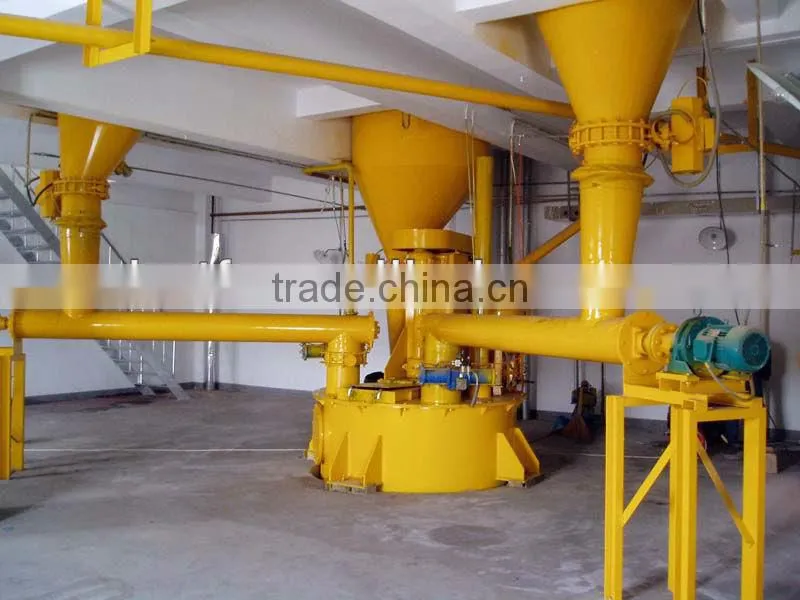

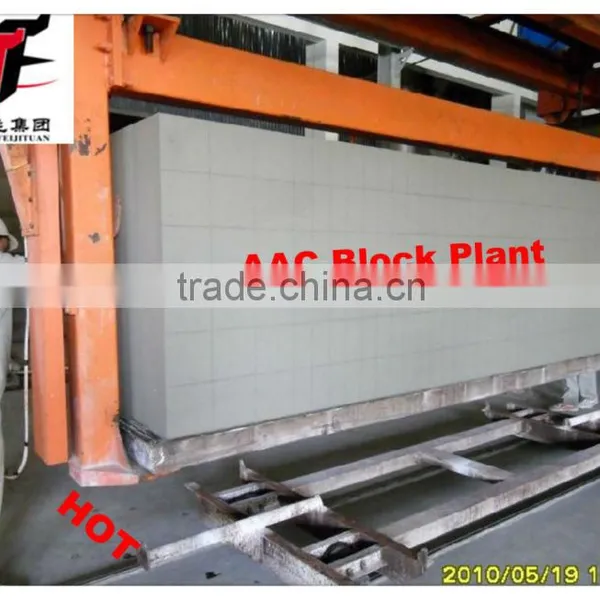

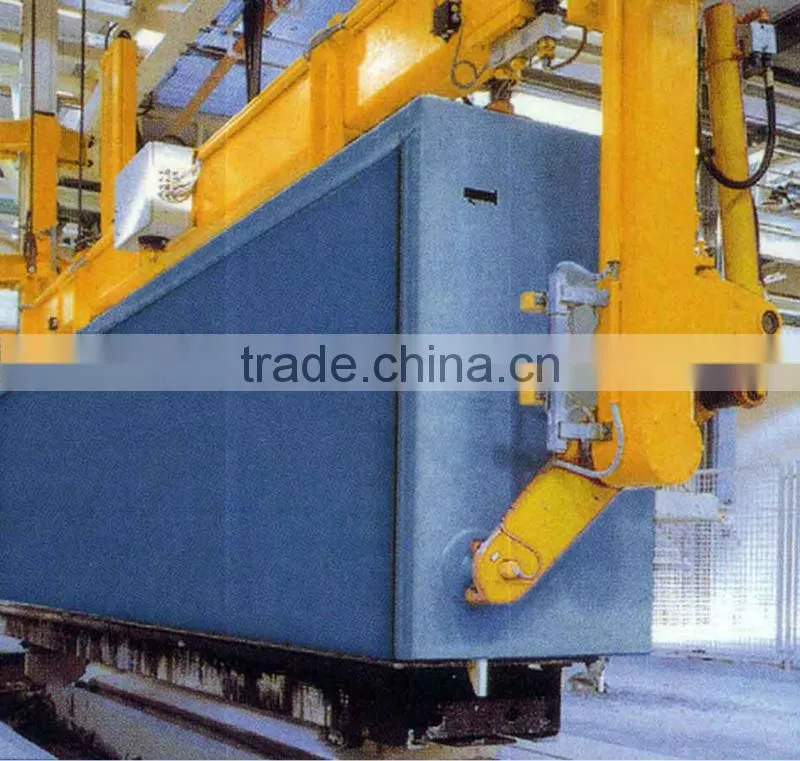

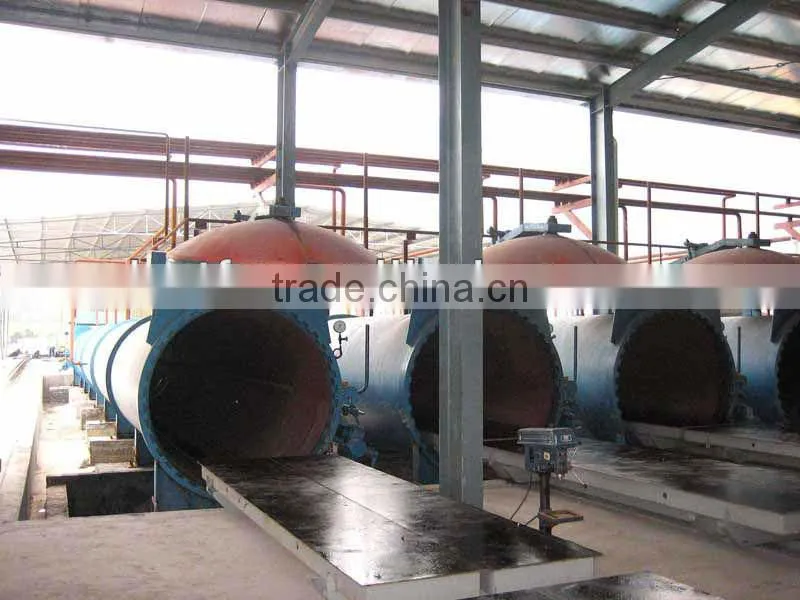

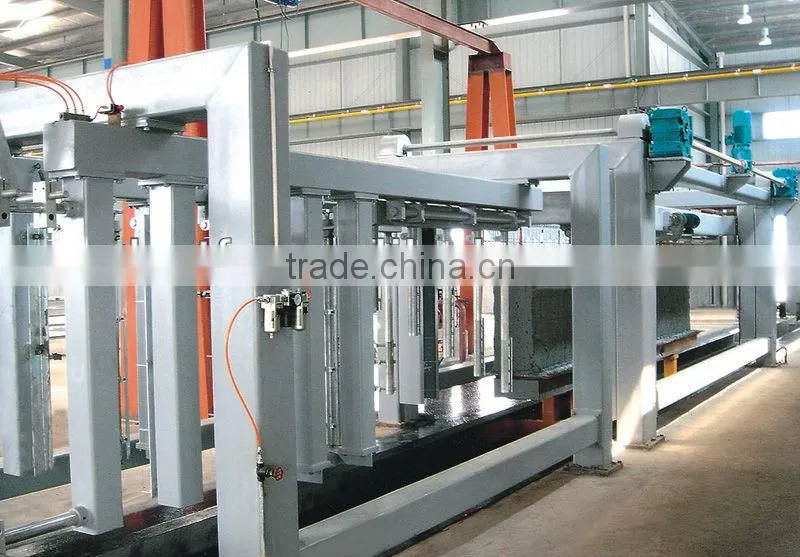

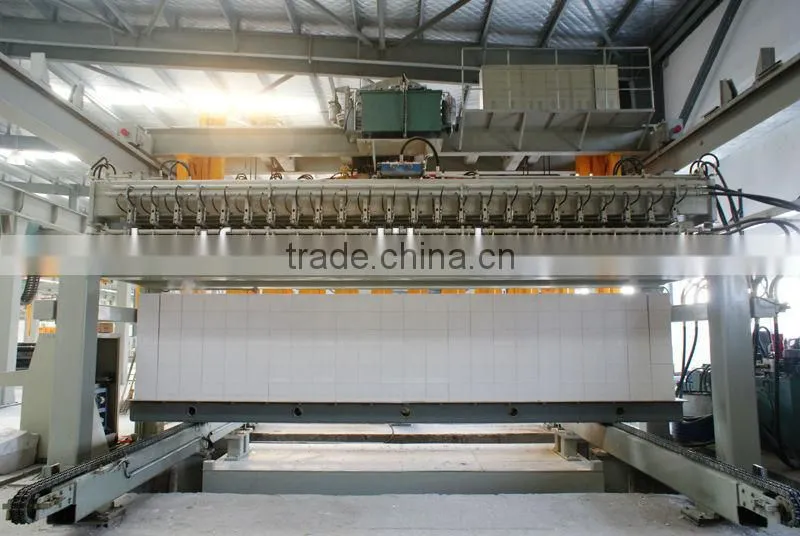

6. Equipment Pictures:
If there is any problem about the aac block line machine ,please don't hesitate to contact us.
