80t/h Asphalt Mixing Plant LB1000 for Road Construction
- 20 Set / Sets per Month
- CHINA QINGDAO
- T/T
- SHANTUI JANEOO STATIONARY ASPHALT BATCHING PLANT LB2000
- Asphalt Distributor Trucks and Trailers,Road Construction Paving Machinery Asphalt Distributor/Spreader Truck for Sale
- China Original Road Construction Machinery TM1000 Asphalt Mixing Plant Price on Sale
- China Original Road Construction Machinery TM1000 Asphalt Mixing Plant Price on Sale
- China Original Road Construction Machinery TM1000 Asphalt Mixing Plant Price on Sale
- China Original Road Construction Machinery TM1000 Asphalt Mixing Plant Price on Sale
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | FOCUS |
Model Number: | LB1000 | Voltage: | 380v,50HZ,3 phase | Power(W): | 280kw |
Dimension(L*W*H): | cover 1250 square meter's land | Weight: | 120t | Certification: | ISO.CE |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

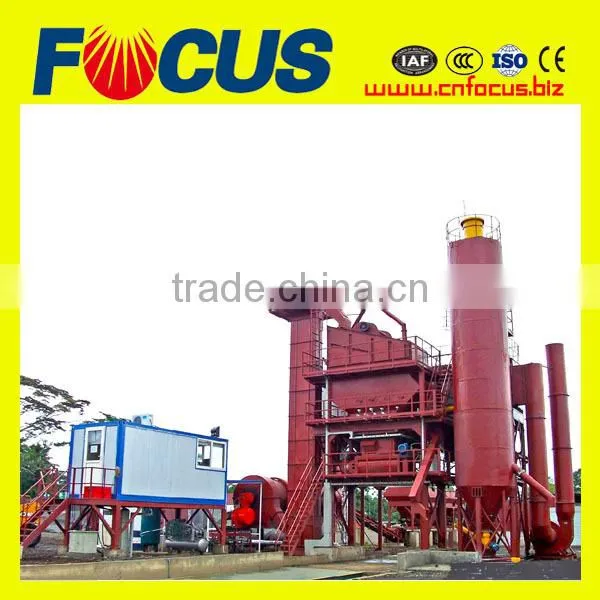

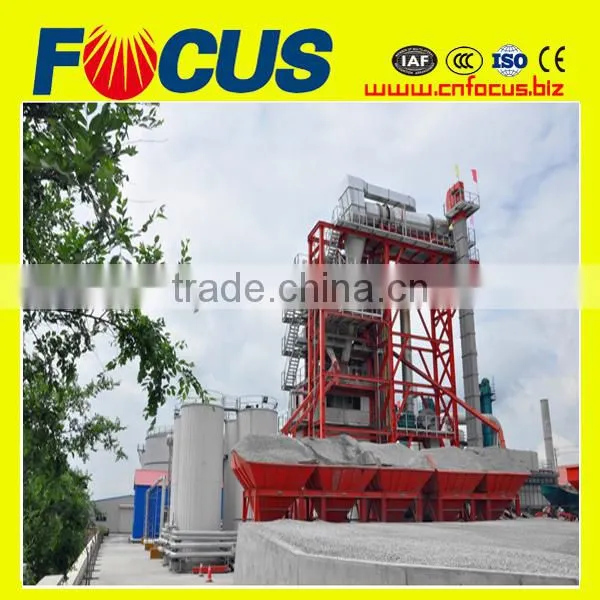

80t/h Asphalt Mixing Plant LB1000
for Road Construction
LB500, LB750,LB1000, LB1500, LB2000,LB2500,LB Series Asphalt mixing plant has highly accurate aggregate feeder, high quality mix, high production rate,excellent asphalt mixing plant.
The modular design and clearly defined interfaces between the asphalt mixing components allow the utilization of local manufacturing sources.
The reduction of transportation and production costs is a direct benefit for our customers.
The modular design and the preparation of the modules through the production lead to a fast and uncomplicated working site assembly.
Main technical parameters of LB1000 asphalt mixing plant:
Type | LB1000 | |
Rated production | 80t/h | |
Cold aggregate container | 4 containersx9m3 | |
Dry cylinder | 1.5mx6m | |
Bag dust-remover | CNM357 | |
Emission standard | 50mg/Nm³ | |
Vibrating screen | 4 layers | |
Hot aggregate container | 26t | |
Mixing kettle capacity | 1100kg | |
Mixing cycle | 45s | |
Mineral powder tank volume | 26+36t | |
Asphalt tank volume | 50000L | |
Heat conduction oil stove | 300,000 kcal/h | |
End-product container volume | 90t | |
Control system | Manual /semi-auto / automatic | |
Weighing accuracy | Aggregate | ≤±0.4% |
Powder material | ≤±0.3% | |
Asphalt | ≤±0.2% | |
Installed general power | 280kw |
What are the main features of FOCUS Asphalt Mixing Plant?
1. The original modular design of the mixing plant makes transport and installation work quick and convenient.

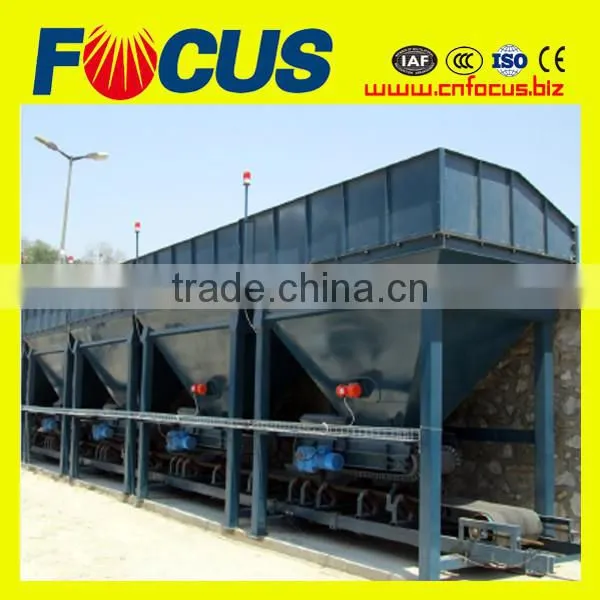

2. Loop belt feeder for the measuring hopper: provide high and low speed.

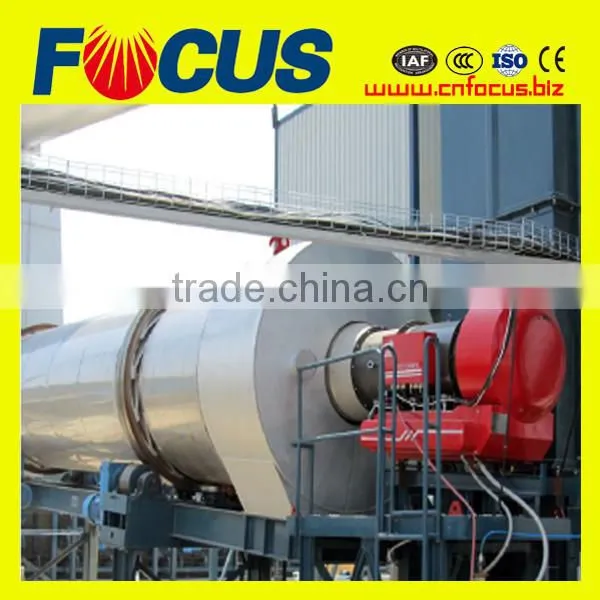

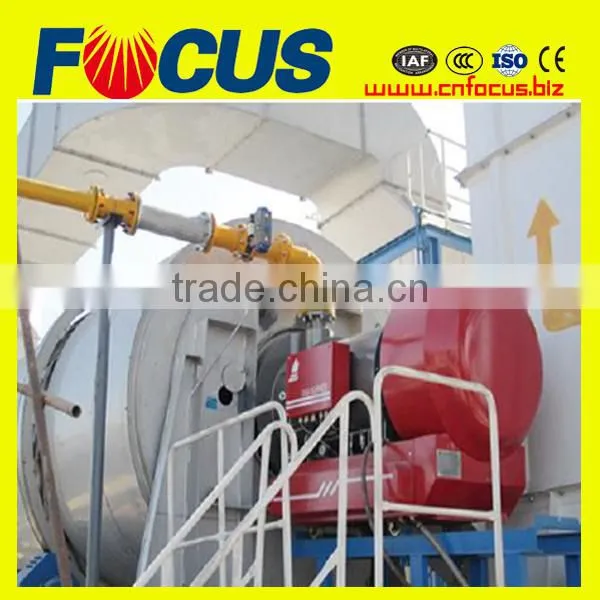

3. The high-efficiency and heat-preservation drying drum and the special vanes make heat exchange more sufficient.
4. Vibrating screen: high sieving efficiency, easy maintenance and changing, and the imported bearings more reliable.
5. Hot aggregate bin: easy to know the level of material, precise measurement of aggregate, less blockage.
6. Main mixing machine: agitating more even and speedy, used material can be recycled.
7. Dust-removing system: completely up to the national standard of environmental protection, dust blown down will be collected for reuse to avoid secondary pollution.
8. Control system: SIEMENS integrated solution, PROFIBUS field bus to form a distributed automatic system.
9. Operation: double hot standby on the industrial computer, dynamic display and buttonless design.
Product details of FOCUS Asphalt Mixing Plant:
