concrete mixer specification price JS750
- 20 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | JIANLING | Model Number | JS750 | |
Motor Power | 39.7kw | Mixing Power | 30kw | |
Charging Capacity | 1200L | Reclaiming capacity | 750L | |
Speed of Mixing Drum | 35r/min | Water Supply Mode | water pump | |
Working Cycle Period | 60s | Discharge Way | pneumatic/manual | |
Outline Dimension | 4950*3636*6530 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

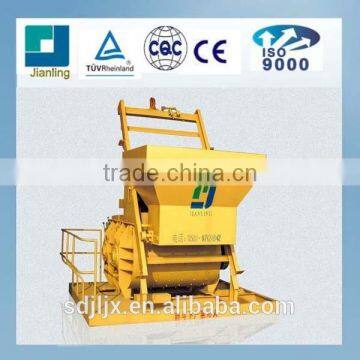

Twin-shaft Concrete Mixer JS750
Technical Parameters of concrete mixer
Model | JS750 |
Charging Capacity (L) | 1200 |
Discharging Capacity (L) | 750 |
Output Rate (m3/h) | ≤37.5 |
Max. Practice Size of Aggregate (mm) | 80/60 |
Power of Host (kw) | 39.7 |
Hopper Hoisting Speed m/min | 18 |
Size in Travel Position (L×W×H) (mm) | 3636×2805×2895 |
Size in Working Position (L×W×H) (mm) | 4950×3636×6530 |
Weight of Integral Machine (t) | 5.5 |
Features of concrete mixer
1. Applied to preordered construction element plants in medium-and-large scale and construction departments for industrial and civil architectural engineering of highways, bridges, water conservancy, ports and decks in mixing hard concrete, plastic concrete, liquid concrete, lightweight aggregate concrete and all kinds of mortar.
2. Reasonable design, novel structure, advanced performance,
3. High mixing quality, small consumption,
4. Simple operation and convenient maintenance.
5. Can be used alone, also as mixing station (buildings) supporting the host, is suitable for various kinds of construction site and precast plant
Technical Parameters of JS Series Mixing Machines:
Model | JS500 | JS750 | JS1000 | JS1500 |
Charging Capacity (L) | 800L | 1200L | 1600L | 2400L |
Discharging Capacity (L) | 500L | 750L | 1000L | 1500L |
Output Rate (m3/h) | ≤25 | ≤37.5 | ≤50 | ≤75 |
Max. Practice Size of Aggregate (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
Power of Host (kw) | 25.5 | 39.7 | 58.5 | 87.5 |
Hopper Hoisting Speed (m/min) | 18 | 18 | 18 | 18 |
Size in Travel Position (L×W×H) (mm) | 2786×2480×2151 | 3636×2805×2630 | 4500×2400×2745 | 5200×2480×3500 |
Size in Working Position (L×W×H) (mm) | 4448×3003×4606 | 4950×3636×6530 | 9500×3800×8605 | 11700×3880×8650 |
Weight of Integral Machine (t) | 4.1 | 5.5 | 10 | 12 |
*We can customize according to your requirements, welcome to enquire.
_______________________________________________________________________________
Shandong Jianling Machinery Co., Ltd.
has more than 25 years of production experience. The Company seeks survival with quality and promotes development with science and technology. The Company has developed successively a wide range of concrete machinery and road construction machinery since it’s establishment and now it is one of the Chinese enterprises with complete types, advanced technology and strong capacity in producing complete sets of concrete batching, mixing and conveying machinery and road construction machinery.
We also supply:
concrete batching plant, stabilized soil mixing plant, batcher, Cement silo, concrete mixing truck, screw conveyor, block making machine etc. |
Q1: Are you a factory or a trading company?
A: We are not only a factory, but also have our own oversea dept.
Q2: Before send us the inquiry, what should you know?
A:
1. Do you need Concrete Batching Plant or Stabilized Soil Mixing Plant?
2. (1) If you need Concrete Batching Plant, do you need Stationary (Fixed), Mobile or Ready-mixed Concrete Batching Plant, and what is the capacity?
(2) If you need Stabilized Soil Mixing Plant, do you need Stationary (Fixed) or Mobile Stabilized Soil Mixing Plant and what is the capacity?
3. Do you need Cement Silo? We can supply you 50T / 100T / 150T / 200T / 300T / 500T... If so, how many silos do you need? And what is the capacity?
4. About the power condition, in China is 380V / 50HZ / 3P, the same or not?
5. For the Aggregate Batcher, which is for the storage of sand, stone and other aggregates, how many hoppers do you need? Usually, we supply you 3 / 4 / 5 hoppers.
Why choose us?
A:
1. We are professional manufacturer and exporter with our own factory;
2. We have our own professionals and technicians to handle development, design, production, sales and service;
3. Our products have passed the CE Certification and ISO9001: 2008.
4. We use the real steel structure.
5. We use several famous brand accessories: such as Load cell---TOLEDO, Cylinder---AIRTAC, Screw conveyor---SICOMA, Silo accessory---WAM, Electronic control components---SIEMENS and SCHNEIDER...
6. Excellent mixing performance;
7. The whole set of machine can be auto-operated by PLC;
8. Perfect after service;
9. High quality and reasonable price
10. 12 months guarantee;
11. Have a professional, respectful, and effectively cooperate team;
12. The quality of our machineries is stability for we have about 14 years’ experience.
13. Cooperate with many universities to get the latest technology
14. We combine our experience with European technology to improve our machinery quality.
15. Our customers are all over the world, especially the Africa, Middle East, South America, Southeast Asia, Australia, Russia, etc, and received very well feedback from them.
