Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > 2017 New Type PE PP Round Yarn Rope Making Machine

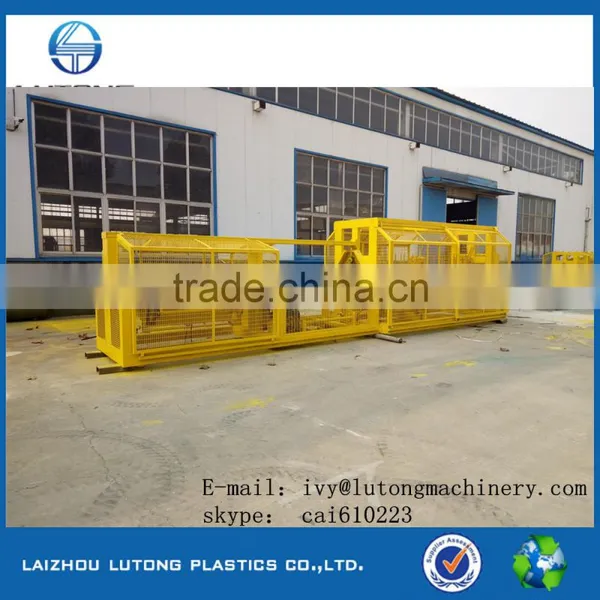

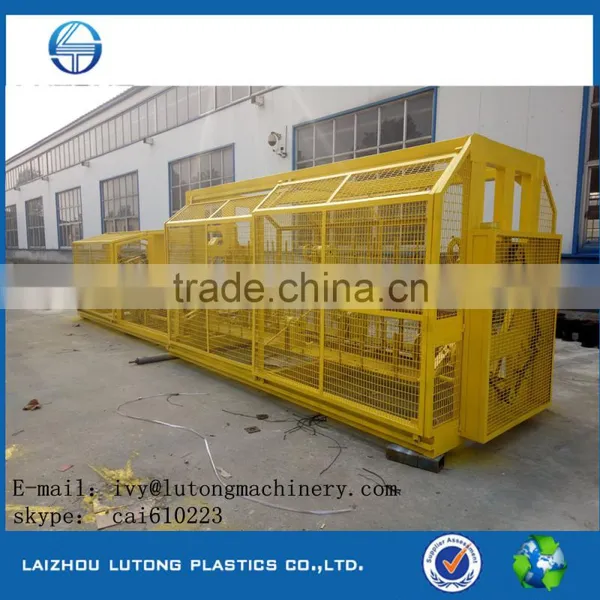

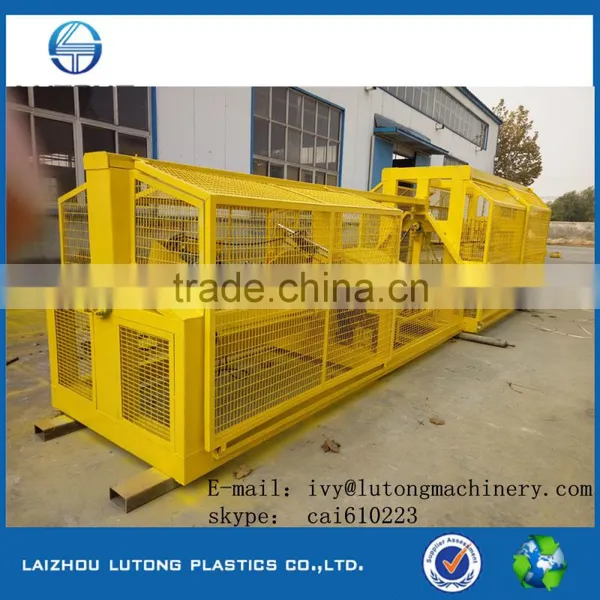

2017 New Type PE PP Round Yarn Rope Making Machine

Name: 2017 New Type PE PP Round Yarn Rope Making Machine
Brand: LUTONG
SKU: 139765205
Availability: InStock

2017 New Type PE PP Round Yarn Rope Making Machine thumbnail-1

2017 New Type PE PP Round Yarn Rope Making Machine thumbnail-2

2017 New Type PE PP Round Yarn Rope Making Machine thumbnail-3

2017 New Type PE PP Round Yarn Rope Making Machine thumbnail-4

2017 New Type PE PP Round Yarn Rope Making Machine thumbnail-5

2017 New Type PE PP Round Yarn Rope Making Machine thumbnail-6

2017 New Type PE PP Round Yarn Rope Making Machine photo-1

2017 New Type PE PP Round Yarn Rope Making Machine photo-2

2017 New Type PE PP Round Yarn Rope Making Machine photo-3

2017 New Type PE PP Round Yarn Rope Making Machine photo-4

2017 New Type PE PP Round Yarn Rope Making Machine photo-5

2017 New Type PE PP Round Yarn Rope Making Machine photo-6

US$ 12,000 - 14,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Product Type:

Plastic Rope

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Laizhou Lutong Plastics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Product Type Plastic Rope

Place of Origin Shandong, China

Brand Name LUTONG

Model Number M-66

Voltage 220v/ 380v/440v

Power(W) 11kw

Dimension(L*W*H) 9*2.2*2.3m

Weight 3000kgs

Certification BV

Warranty 360days

After-sales Service Provided Engineers available to service machinery overseas

PE PP round yarn twisted rope making machine

Usage :

This machine is suitable for making ropes with Nylon, PE, PP, etc. It consists of rope making device and strand making device, and can produce rope with Dia.4-28mm after continuous operation once and omit extra working steps from strand making to rope making, thereby the production efficiency is greatly improved. There is no waste yarn or scrap coming out during the production process, so the ropes are more attractive and durable.

Rope making machine main features:

High reliability and output Fitted with inverter drive Increased take-up capacity

Two ropes lays per revolution Constant winding tension Low power consumption

Easy maintenance Easy adjust strand twist.

Rope makin machine main Technical Parameter :

Model	Revolution of principal Axis (r/min)	Dia of rope(mm)	Automatic Lining machine	Twist (t/m)	Direction of twist	Motor power	Dimension (m)	Output (t/day)
M77	320	20 -30	GP40	16-62	s/z	18KW-4	12 * 2.3* 2.1	1.5-2
M66	350	12 -20	GP40	16-62	s/z	15KW-4	9* 2.3 * 2.1	0.9-1.5
M55	420	8 -14	GP30	16-62	s/z	7.5KW-4	6.86* 2 * 2.1	0.8-1.1
M44	620	4 -10		16-62	s/z	5.5KW-4	5* 1.9* 1.8	0.3-0.6
M33	900	3 -6		26-82	s/z	3KW-4	4* 1.9* 1.8	0.2-0.4

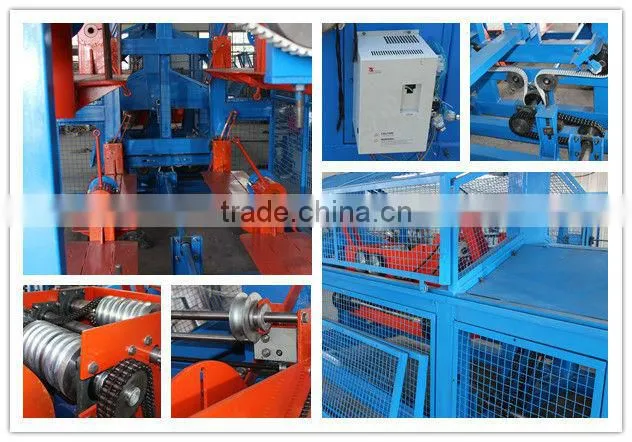

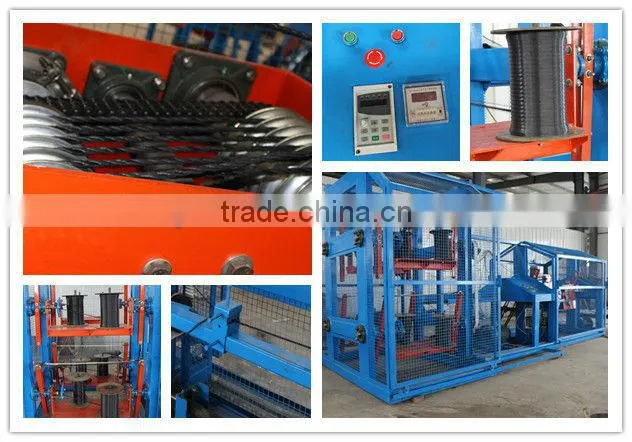

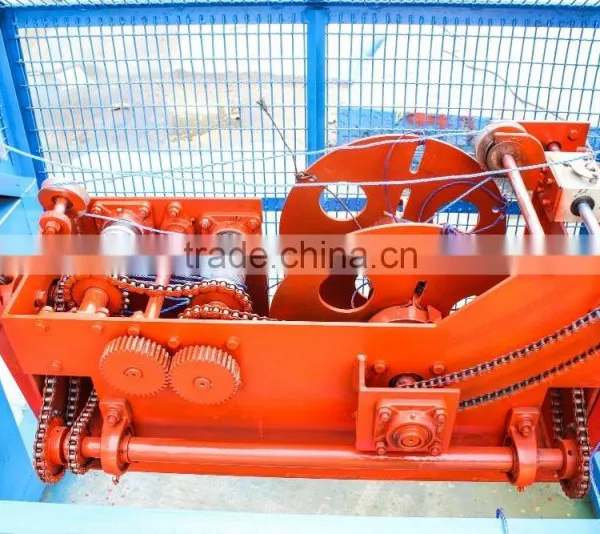

Rope making machine details:

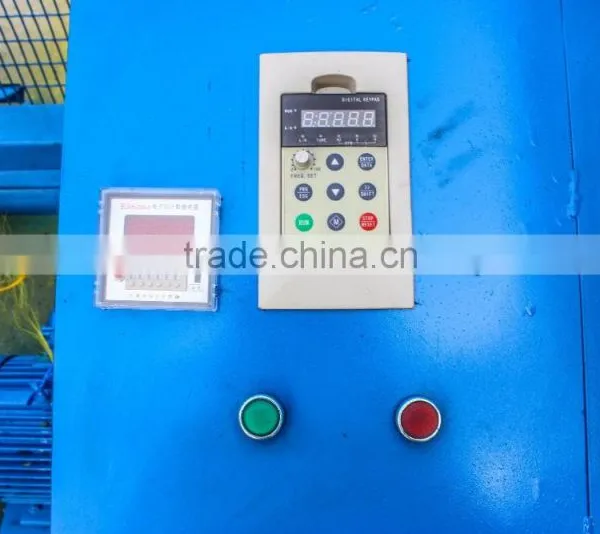

1. Adopting frequency inverter to adjust speed.

2. One motor control both strand making and rope making. Or can choose two motors controlling system.

3. Cycloid device to adjust rope pattern.

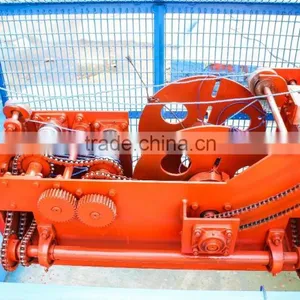

4. Chain or belt transmission system can be chosen.

Rope making machine operation:

1. Put yarn bobbins on machine, and choose bobbins' quantity according to finished rope diameter.

2. Adjust strands and rope twist by exchange gears.

3.Before take rope off, tie rope coil with thin string.

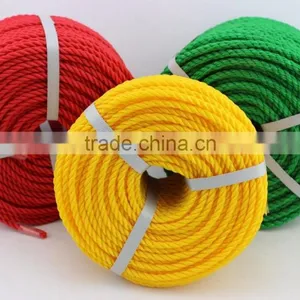

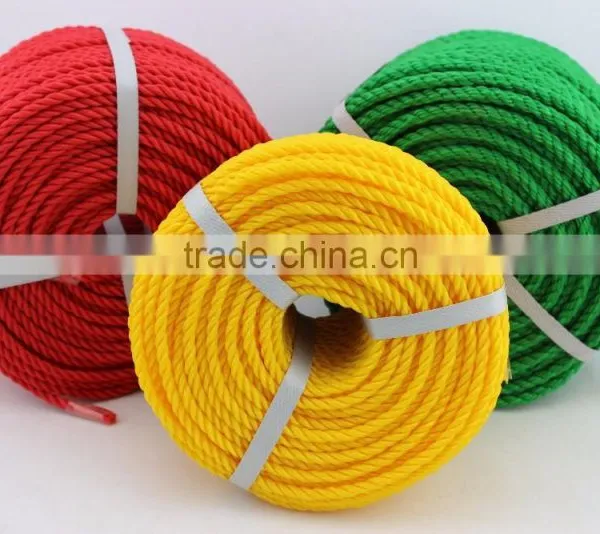

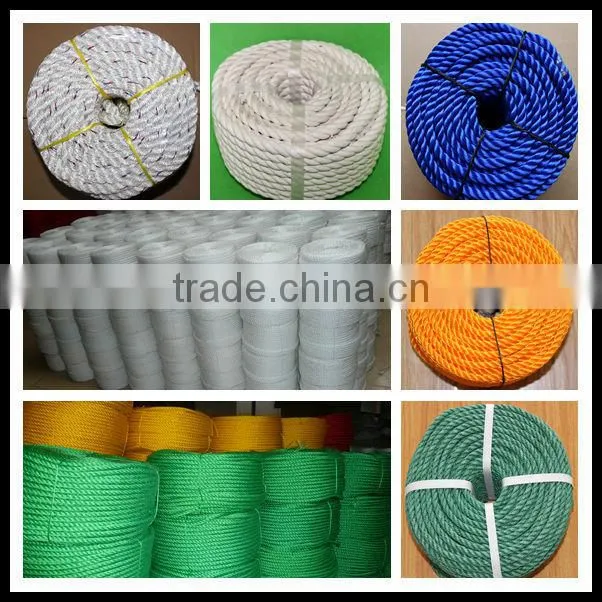

Rope making machine finished product:

1. Twisted or double twisted rope can be made.

2. PE monofilament, PP split film, Dan line yarn, polyester yarn, jute, cotton yarn are available.

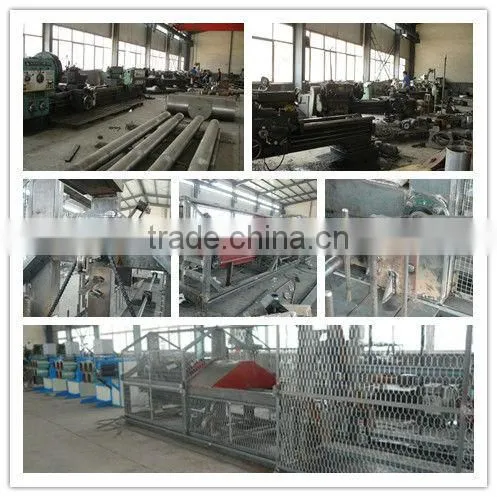

Manufacture and process :

Our company was established in 2003. Founded before we already have a wealth of rope production experience, on the basis of long time rope productions, we setup new factory in 2006, which manufactures plastic machines relevant with rope production. Therefore, we can provide you with high-quality machines, meanwhile, we can help to supply solution suggestions for some problems appeared during your rope production according to our years of production experience. Discuss and study together for further progress.

Service :

Installation and testing

We dispatch engineer go abroad for installation and testing machine until machine working successfully when machine reach to buyer’s factory, or according to buyer’s arrangement.

Buyer should take the responsibility for engineer’s round-journey ticket, room and board there, cost for visa, and arrange a translator. If need engineer supply train, buyer should pay salary $60 per day.

Customer’s service

Warranty period of one year. Within one year the main components of the machine problems, we provide replaced spare parts (except for the improper operation of the buyer); if technical problem can be solved by buyer, we can supply solution by email or phone. For operating problem occurred during production, you can contact with us at any time.
