Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Winding Machine > Twine/ Spool/baler Twine Winding Machine
US$ 700 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
package
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2017 New Type Plastic Rope Making MachineUS$ 12,000 - 14,500MOQ: 1 Set -
2014 Rope and Twine Ball Making MachineUS$ 500 - 900MOQ: 1 Set
-
Rope and Twine Ball Making MachineUS$ 500 - 900MOQ: 1 Set
-
China pp Rope Making MachinesNegotiableMOQ: 1 Set
-
China Bag Rope Making MachineNegotiableMOQ: 1 Set
Condition
New
Application
package
Place of Origin
Shandong, China
Brand Name
Lutong
Model Number
DZJ-8
Inside Diameter Range
20-50mm
Outside Diameter Range
100-250mm
Spool Capacity
2-3kgs
Arrange Width
200mm
Voltage
220v/380v
Power(W)
8N
Dimension(L*W*H)
0.8*1*1.1m
Weight
80kgs
Certification
BV
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas

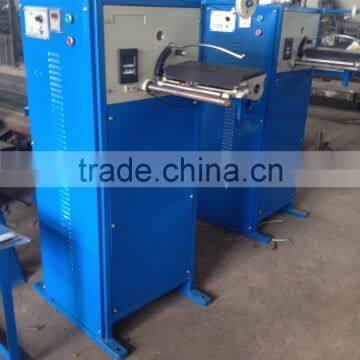

twine/ spool/baler twine winding machine
Usage

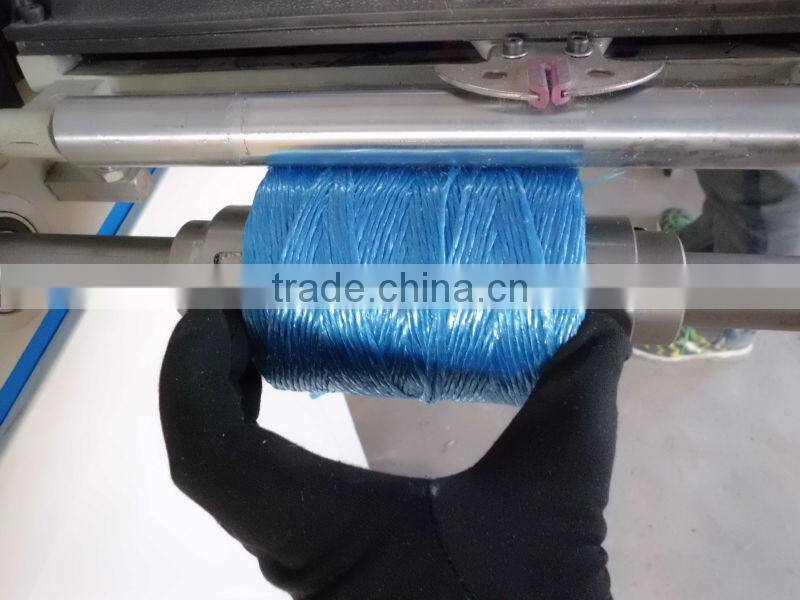

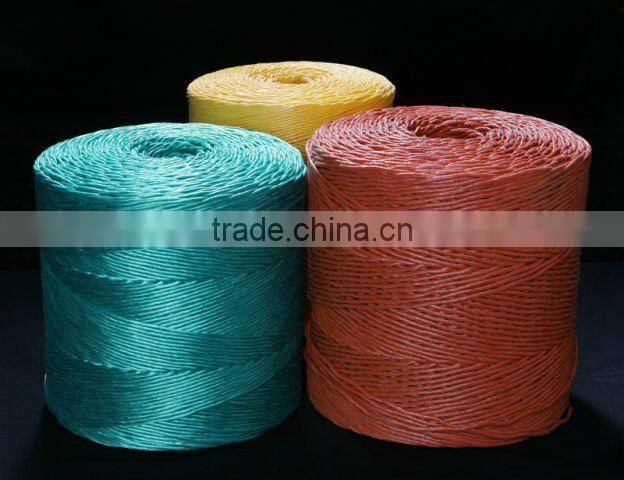

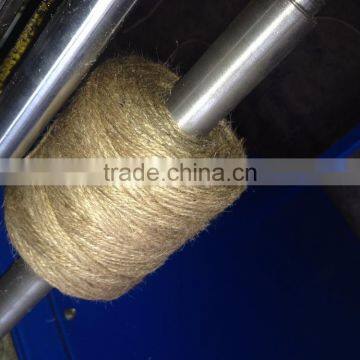

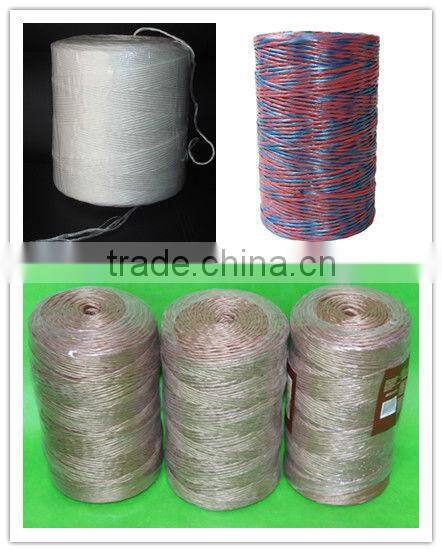

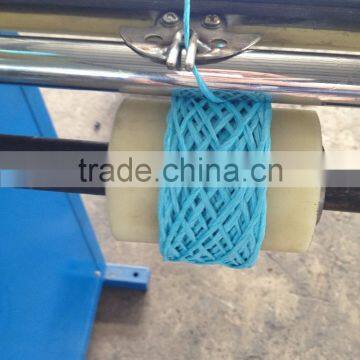

This machine is used for winding wrapping spool with pp yarn,pe thread,cotton string,jute twine,split film yarn,raffia twine. Etc… The finished products are widely used in commodity package,agricultural plant,baling stuffs. Different models are available, and 6”and 8”travelling distance are optional.
Advantages:
- Matched with meter counter, machine can stop automatically when yarn winding reach to settled meter.
- Tightness and pattern can be changing according to yarn diameter.

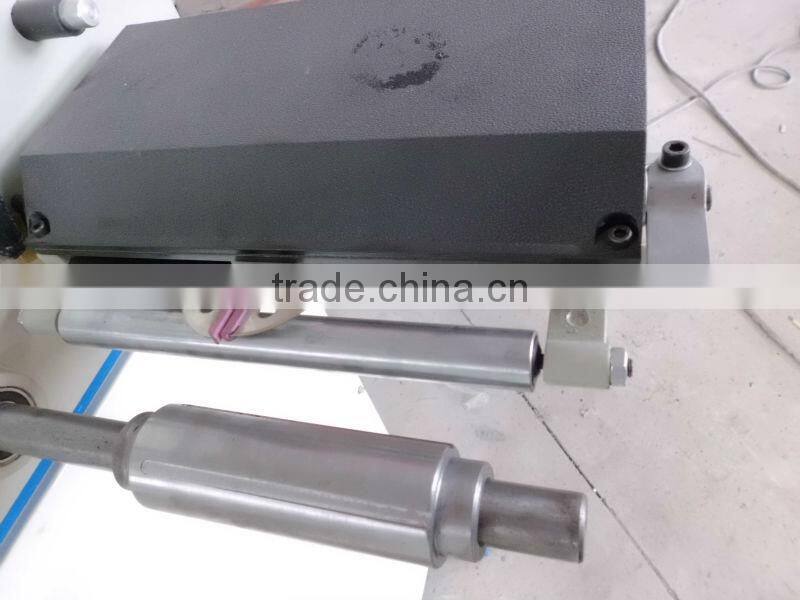

- One machine can be changed to different size axles according to requirement.
- Adopting conveying belt transfer,machine works stably and with low noise
Technical specifications:
Model | DZJ-6 | DZJ-8 |
Max. dia. of yarn | 4mm | 4mm |
Max. weight of coil | 2kgs | 3kgs |
Max. dia of coil | 200mm | 200mm |
Max. tension | 30-50kgs | 30-50kgs |
Travel distance | 6 inch | 8 inch |
Max. speed | 1400r/min | 1400r/min |
Moment motor | 6N | 8N |
Spindle quantity(optional) | 1 piece | 1 piece |
Output/ spindle | 20-25kgs/h | 25-30kgs/h |
Dimension | 0.8*1*1.1m | 0.8*1.1*1.1m |
Weight | 70kgs | 75kgs |
