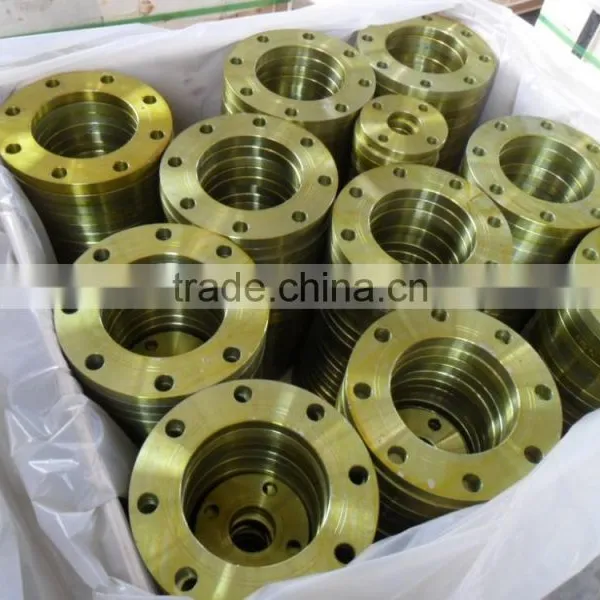

HG20593-97 Raised Face 16bar Varnish Plate Flange
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Carbon Steel
Standard:
Other, HG20593-97
Place of Origin:
Chongqing, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JIS B2220 SOP FF 10K Carbon Steel Plate FlangeNegotiableMOQ: 1 Piece -
Class 150RF ANSI B16-5 Welding Neck FlangeNegotiableMOQ: 1 Piece
-
ANSI B16.5 Class 150 LB Slip On FlangeNegotiableMOQ: 1 Piece
-
ASME B16.5 Welding Neck FlangesNegotiableMOQ: 1 Piece
-
ANSI B16.5 Class150 lb Threaded FlangesNegotiableMOQ: 1 Piece
Material
Carbon Steel
Standard
Other, HG20593-97
Place of Origin
Chongqing, China
Standard or Nonstandard
Standard
Plate Flange :
HG20593-97 Raised Face 16bar Varnish Plate Flange:
Product Description:
HG20593-97 Chemical standard 16bar Varnish Plate Flange.
16bar Plate Flange Outside Diameter:14mm-530mm.
16bar Bolt Hole Spacing Varnish Plate Flange:60mm-650mm.
RF Plate Flange Thickness:14mm-46mm.
Specification:
Norminal |
Pipe Outside |
PN1.6MPa RF Plate Flange |
||||
Flange OD |
Flange ID |
Bolt Hole |
Flange |
Diameter of |
||
10 |
14 |
90 |
15 |
60 |
14 |
14 |
15 |
18 |
95 |
19 |
65 |
14 |
14 |
20 |
25 |
105 |
26 |
75 |
16 |
14 |
25 |
32 |
115 |
33 |
85 |
16 |
14 |
32 |
38 |
140 |
39 |
100 |
18 |
18 |
40 |
45 |
150 |
46 |
110 |
18 |
18 |
50 |
57 |
165 |
59 |
125 |
20 |
18 |
65 |
76 |
185 |
78 |
145 |
20 |
18 |
80 |
89 |
200 |
91 |
160 |
20 |
18 |
100 |
108 |
220 |
110 |
180 |
22 |
18 |
125 |
133 |
250 |
135 |
210 |
22 |
18 |
150 |
159 |
285 |
161 |
240 |
24 |
22 |
200 |
219 |
340 |
222 |
295 |
26 |
22 |
250 |
273 |
405 |
276 |
355 |
28 |
26 |
300 |
325 |
460 |
328 |
410 |
32 |
26 |
350 |
377 |
520 |
381 |
470 |
35 |
26 |
400 |
426 |
580 |
430 |
525 |
38 |
30 |
450 |
480 |
640 |
485 |
585 |
42 |
30 |
500 |
530 |
715 |
535 |
650 |
46 |
33 |
