JIS B2220 Plate Flange :

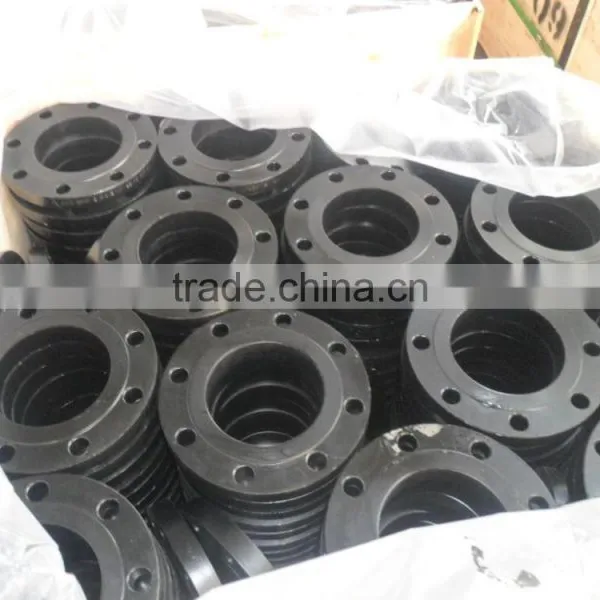

JIS B2220 SOP FF 10K Carbon Steel Plate Flange :
Product Description:
JIS B 2220 Steel Pipe SOP Flange Dimensions:DN20~DN300,3/4"~12"
JIS B 2220 Steel Pipe Pressure:10K
JIS B 2220 Steel Pipe SOP Flange Material:
Carbon Steel,STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49
10K SOP Flange Facing Types
American Series:Flat Face(FF)
JIS B2220 SOP FF 10K Plate Flange Surface treatment:
Black painting, anti-rust varnish, anti-rust oil or as per customer’s requirement.
JIS B2220 SOP FF 10K Plate Flange Packing:
Wooden case and wooden pallet.
JIS B2220 SOP FF 10K Plate Flange Delivery:
Within 25 days after getting necessary deposit or original L/C.
JIS B2220 SOP FF 10K Plate Flange Certificate
ISO 9001:2008,SGS,BV,etc
JIS B 2220 Dimensions of plate flanges for nominal pressure 10k FF SOP
| 10K Plate Flange Nominal Size | 10K Plate flange outer diameter | Diameter of bolt hole centre circle |
10K Plate Flange Inside diameter |
Thickness | Number of bolt Diameter of bolt hole |
Nominal |
| DN | D | D1 | D2 | t | n-d | M |
| 20 | 100 | 75 | 58 | 14 | 4-15 | 12 |
| 25 | 125 | 90 | 70 | 14 | 4-19 | 16 |
| 40 | 140 | 105 | 85 | 16 | 4-19 | 16 |
| 50 | 155 | 120 | 100 | 16 | 4-19 | 16 |
| 65 | 175 | 140 | 120 | 18 | 4-19 | 16 |
| 80 | 185 | 150 | 130 | 18 | 8-19 | 16 |
| 100 | 210 | 175 | 155 | 18 | 8-19 | 16 |
| 125 | 250 | 210 | 185 | 20 | 8-23 | 20 |
| 150 | 280 | 240 | 215 | 22 | 8-23 | 20 |
| 200 | 330 | 290 | 265 | 22 | 8-23 | 20 |
